© Xiamen RGBlink Science & Technology Co., Ltd.
Ph: +86 592 5771197 | support@rgblink.com | www.rgblink.com
30 / 35

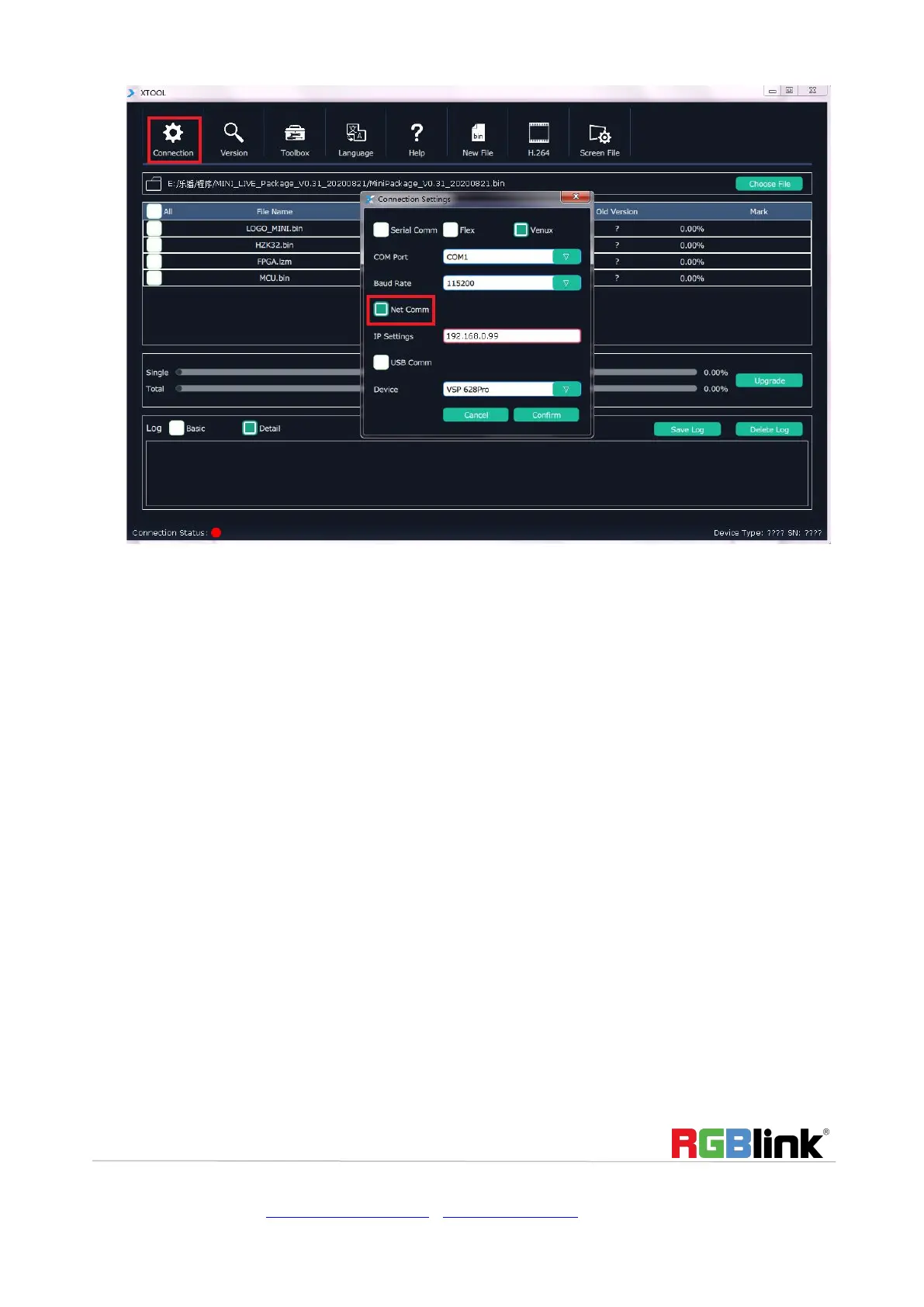

2.5 Upgrade Program
After communication setting is done, the status light in bottom left turns green. Choose ALL and XTOOL will
automatically select the all latest programs version even when there are other old files in list. User can also
manually choose MCU or FPGA bin file to upgrade. After selecting, click upgrade.
