5.2.5 T-Bar Calibration
5.3 Upgrade
1.Tools：

Firmware ZIP upgrade package

XTOOL (V1.0.1.10 or higher) -packaged in the ZIP

Computer with network connection
o Windows (minimum Win 7, Win 10 recommended)
o macOS (minimum 10.13 High Sierra)
2.Upgrade
2.1 Power on the device connect LAN ports between PC and device by Cat6 cable;
2.2xEnsure that your computer is on the same network as the mini. The default IP address of
mini is 192.168.0.99, in which case your computers IP address should be in the range 192.168.0.xxx (xxx cannot be
the same as mini or other device on the network) to enable connection between the mini and your computer.
Check IP of PC：
If the T-Bar is not in the correct position, no other
operation is possible. t-Bar correction is available in
XPOSE mini.
The steps are as follow
：

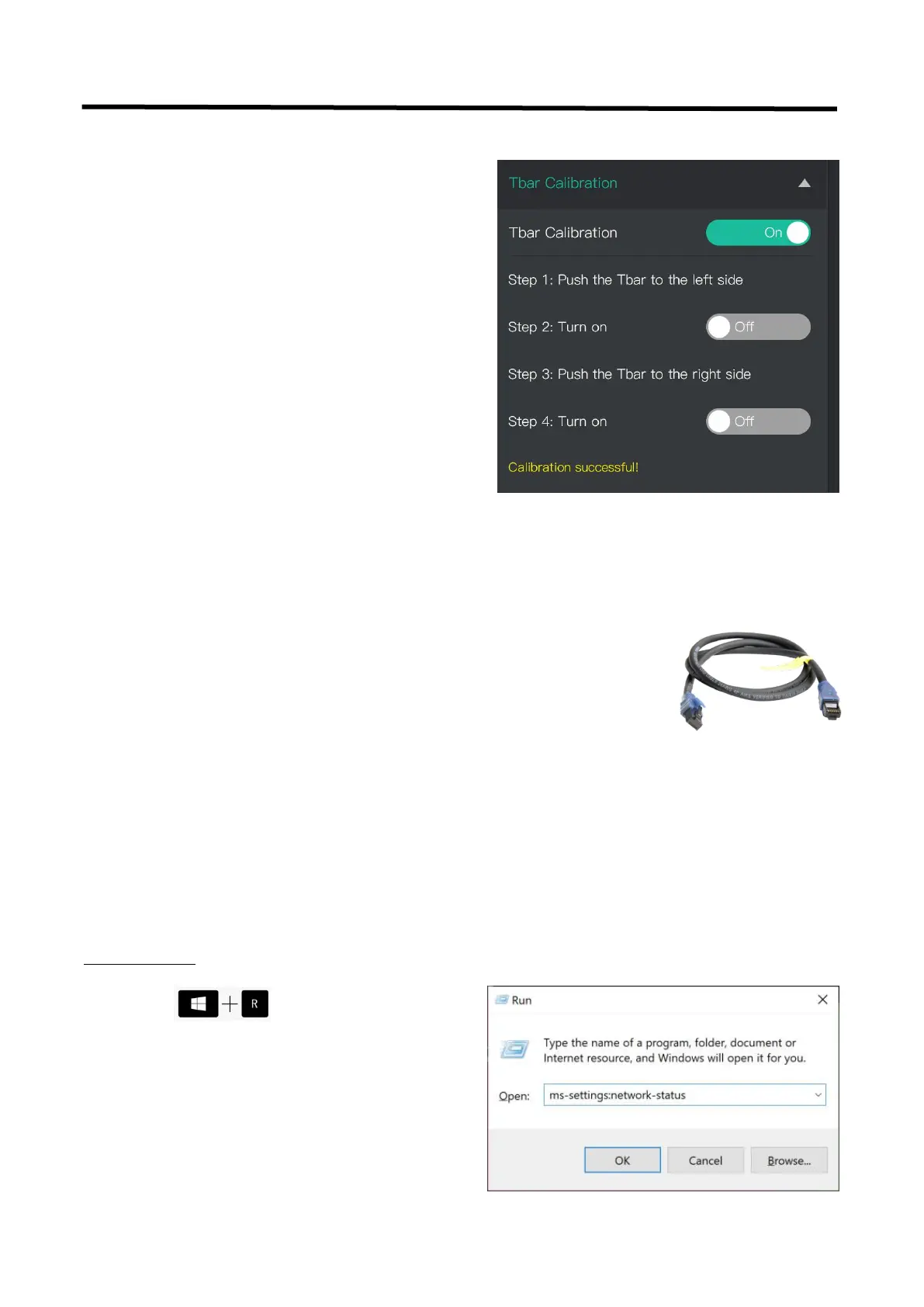

1. Turn on the T-Bar Calibration switch.
2. Push the T-Bar to the far right on the mini.
3. Turn on the "On" switch
4. Push the T-Bar to the far left on the mini.
5. Turn on the "On" switch
Step 1. Press keys together
to open the Command Prompt
Step 2. In the dialog type: ms-settings:network-status

RGBlink Mini Specifications

General

Video Inputs	4x HDMI
Ethernet	Yes
Video Outputs	1x HDMI
Audio Inputs	HDMI embedded
Audio Outputs	HDMI embedded
Control	USB
Transitions	Cut, Fade, Wipe
Power Supply	12V DC
