Rheem 96V Series User Manual

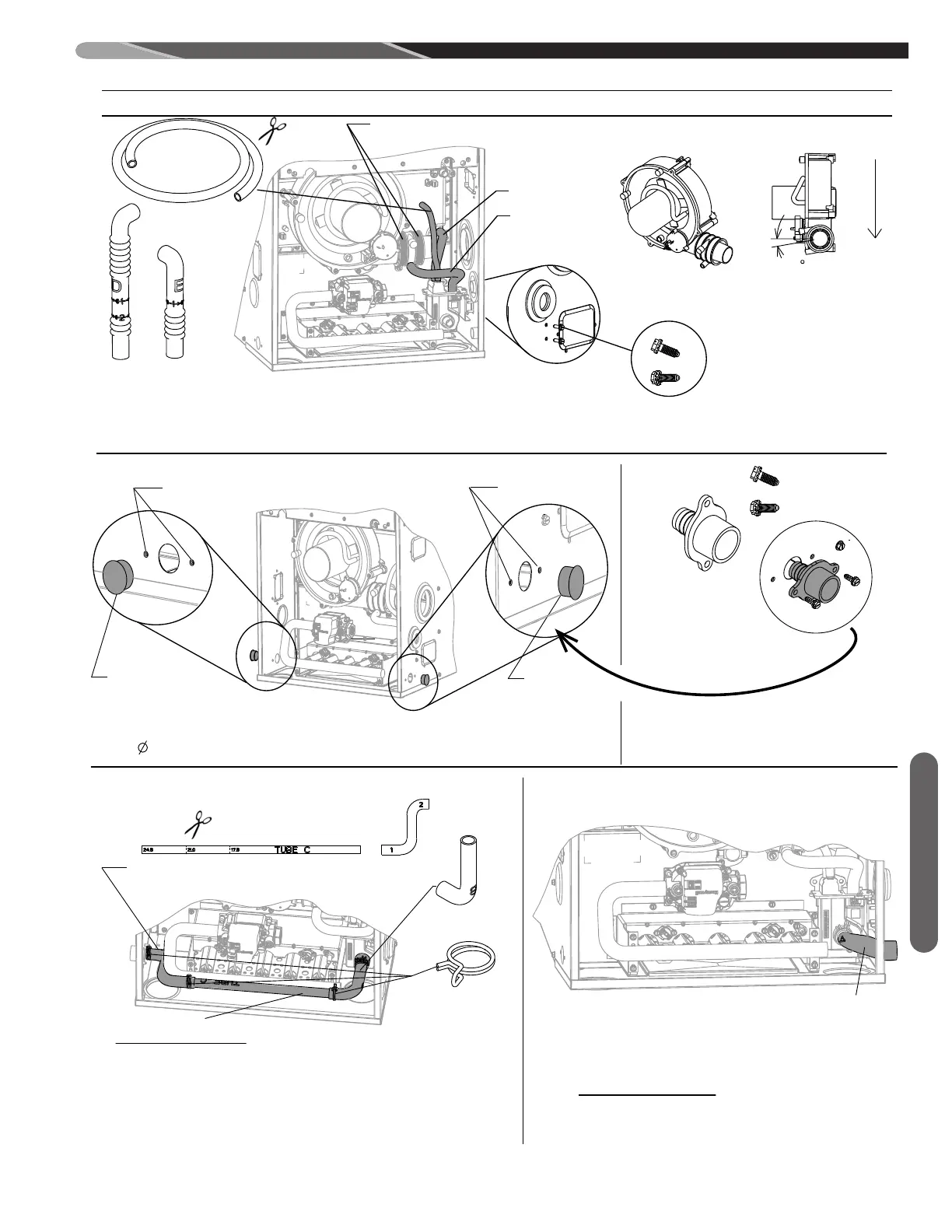

Field Conversions
9b - RIGHT SIDE DRAIN OPTION
ATTACH HOSE A (FACTORY INSTALLED) TO BULKHEAD COUPLING.
OPTION
9b
DRAIN RIGHT SIDE
HOSE A
ATTACH SIDE "2" TO BULKHEAD
COUPLING
OPTION
DRAIN LEFT SIDE
9a
TUBE C
CUT TO FIT
CABINET WIDTH
1
2
TUBE C
HOSE B
8
INSTALL BULKHEAD COUPLING USING (2) SCREWS.
INSTALL IN JACKET WITH THE BARBED FITTING
POINTED INTO THE VESTIBULE.
INSTALL
1/8" DRILL
DISCARD
7/8" PLUG
1/8" DRILL
DISCARD
7/8" PLUG
DETERMINE RIGHT OR LEFT DRAIN OPTION.
LOCATE 7/8" HOLE IN JACKET SIDE AND REMOVE PLUG - DISCARD.
DRILL (2)
1/8" HOLES FOR BULKHEAD COUPLING.
OPTION: RIGHT DRAIN
OPTION: LEFT DRAIN
7
6
b
6
e
6
d
6
c
6
HOSE E
HOSE D
6b - INSTALL CONDENSATE TRAP BY MOUNTING BRACKET TO JACKET USING (2) SCREWS
6c - CUT 1/4” VENT TUBE TO FIT (APPROX. 10-1/2"). INSTALL AS SHOWN.
6d - INSTALL HOSE D (REMOVED IN STEP 1) FROM INDUCER COUPLING TO THE FLUE
TAP IN THE CONDENSATE TRAP.
6e - INSTALL HOSE E FROM COLLECTOR BOX TO TOP OF CONDENSATE TRAP.
-2010°
APPROXIMATELY 10-20° TILT
O
N INDUCER COUPLING
GROUND
ROTATE INDUCER COUPLING TO ENSURE
DOWNWARD FLOW OF CONDENSATE FROM
FLUE VENTING
6a
N
OTE:
USE SOAPY WATER TO FACILITATE EASY
H
OSE AND TUBE ASSEMBLY
1/4” TUBE CUT
TO FIT (APPROX
10-1/2”)
ST-A1194-30-02
NOTE: REMAINING STEPS SHOWN WITH FURNACE IN DOWN FLOW ORIENTATION
S
EE CRITICAL HOSE CLAMP LOCATION NOTE
IN THE GENERAL COVERSION INSTRUCTIONS.
(X3)
9a - LEFT SIDE DRAIN OPTION.
9a-1 - REMOVE HOSE “A” (FACTORY INSTALLED) ON CONDENSATE TRAP & REPLACE
WITH HOSE “B” REUSING SUPPLIED CLAMP.
9a-2 - CUT TUBE “C” ON MARKED LINES CORRESPONDING TO CABINET WIDTH.
9a-3 - SLIDE (2) WIRE CLAMPS OVER TUBE “C” AND (1) WIRE CLAMP OVER
SIDE “2” OF HOSE-DOUBLE ELBOW.
9a-4 - CONNECT HOSE - DOUBLE ELBOW END “1” TO TUBE “C”, CONNECT END
“2” TO BULKHEAD COUPLING. CONFIRM ALL (4) CLAMPS ARE PLACED
CORRECTLY.
NOTE: PLIERS NECCESSARY TO ADD OR REMOVE CLAMPS
21
