Wiring Diagram

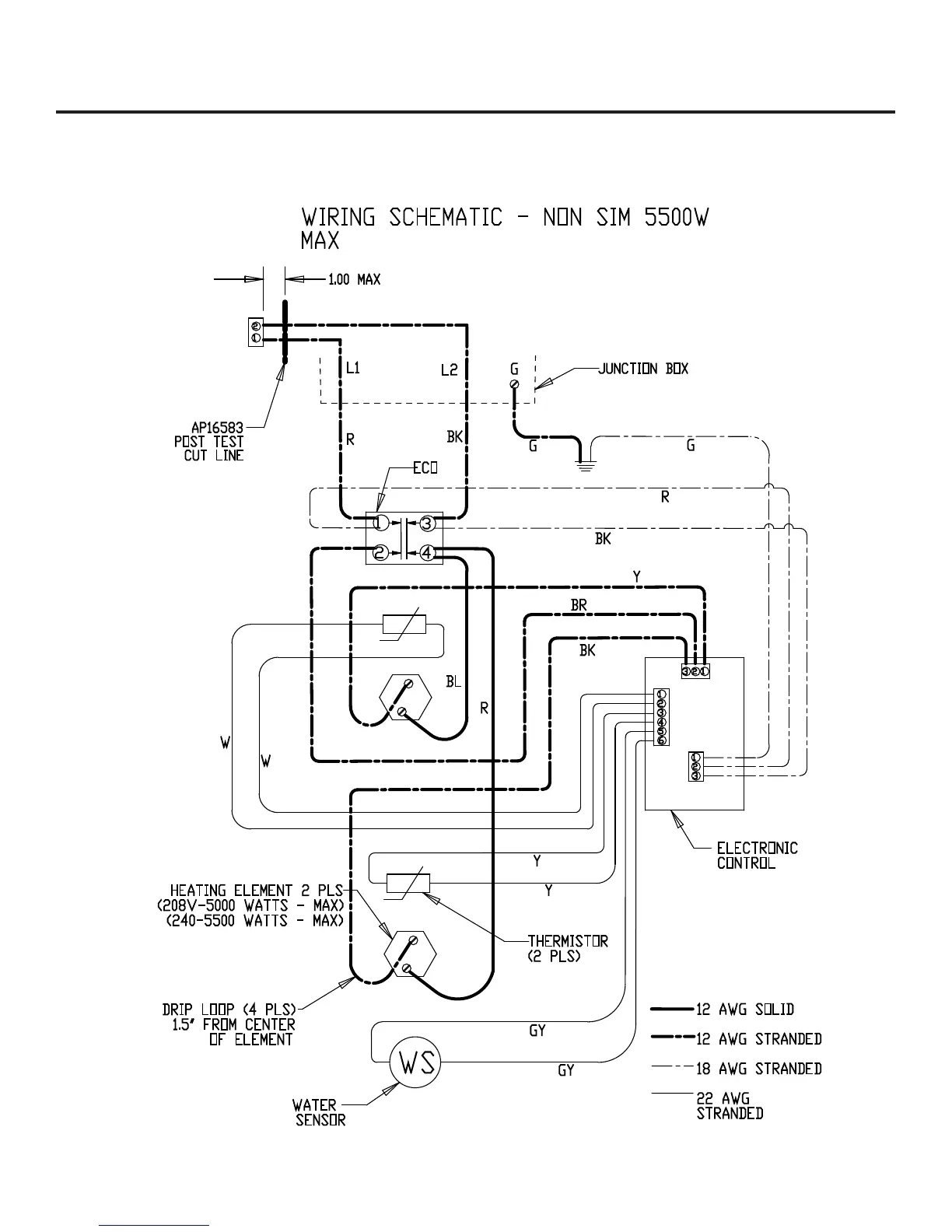

This water heater is wired as indicated in the schematic below. Use only a 2 wire power
feed with ground connection for this water heater.
