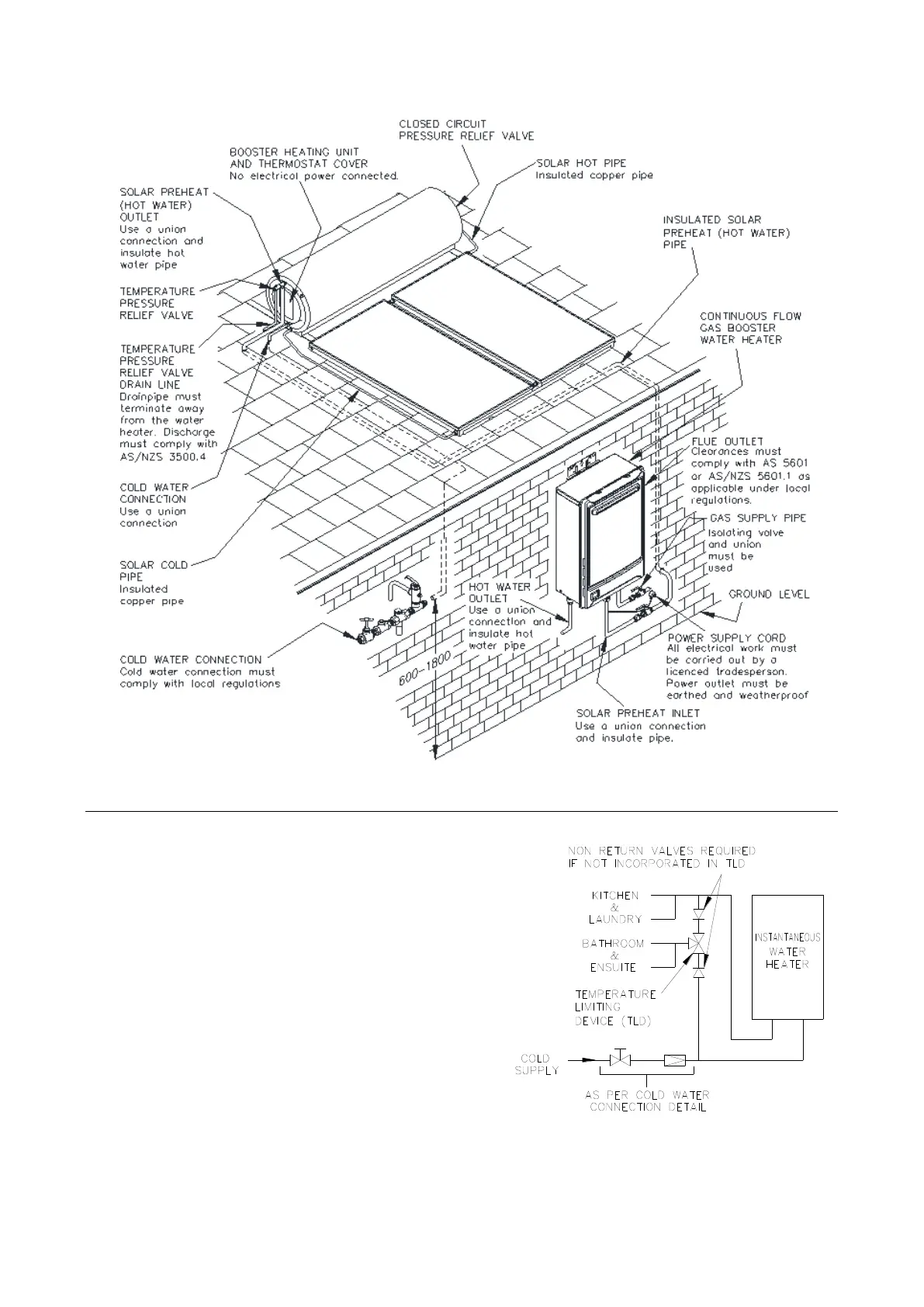

In-series gas boosting Solar Hiline Installation
TEMPERING VALVES
Where a tempering valve is fitted and there is not
a separate untempered line for the kitchen or
laundry areas, the Kitchen temperature controller
will be able to display temperatures above 50
o
C
however the delivered water temperature at the
tap will be that set by the tempering valve which
will be no hotter than 50
o
C.
To enable delivery of hot water at temperatures
above 50
o
C a separate untempered line must be
provided that supplies hot water exclusively to
kitchen and laundry areas (refer to diagram
below).


