HEAT PUMP AND TANK ASSEMBLY
17

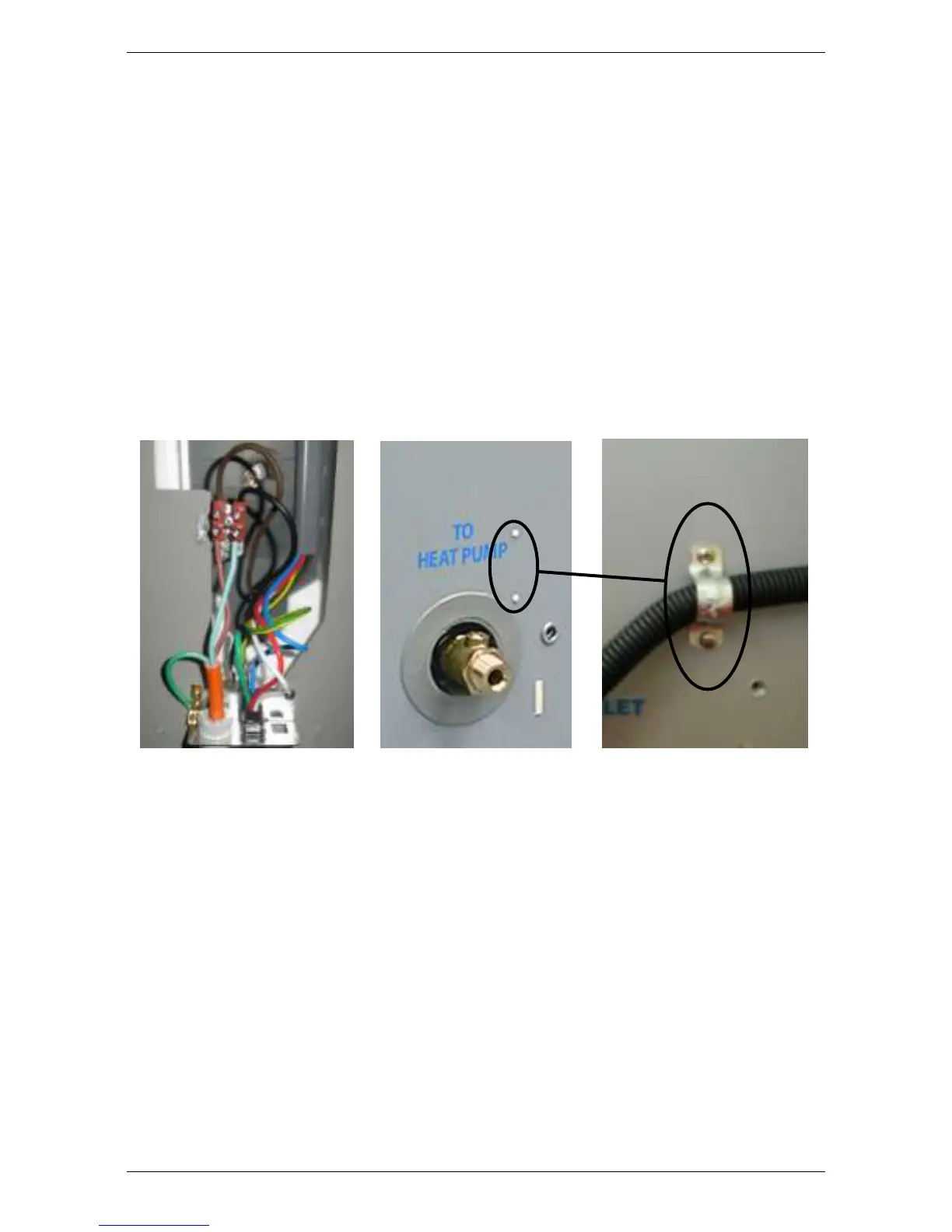

4. Mains Power Connection – 551 Series: Connect the mains power supply
wiring to the terminal block and earth connection inside of the lower front
cover.
Secure the conduit to the side of the storage tank with the saddle
clamp and screws provided.
The saddle clamp must be positioned over the pilot holes provided,
otherwise the conduit will interfere with the heat pump module
installation.
Refer to “Connections – Electrical” on page 30.
Note: The power supply to the water heater must not be switched on until
the installation is complete, the water heater is filled with water and a
satisfactory megger reading is obtained.
Step 4
Connect wiring and secure conduit with saddle clamp
To Next Page
