HEAT PUMP AND TANK ASSEMBLY
22
11. Heat Pump Module Cover: Remove the two screws securing the front
cover to the heat pump module.
Remove the front cover from the heat pump module.

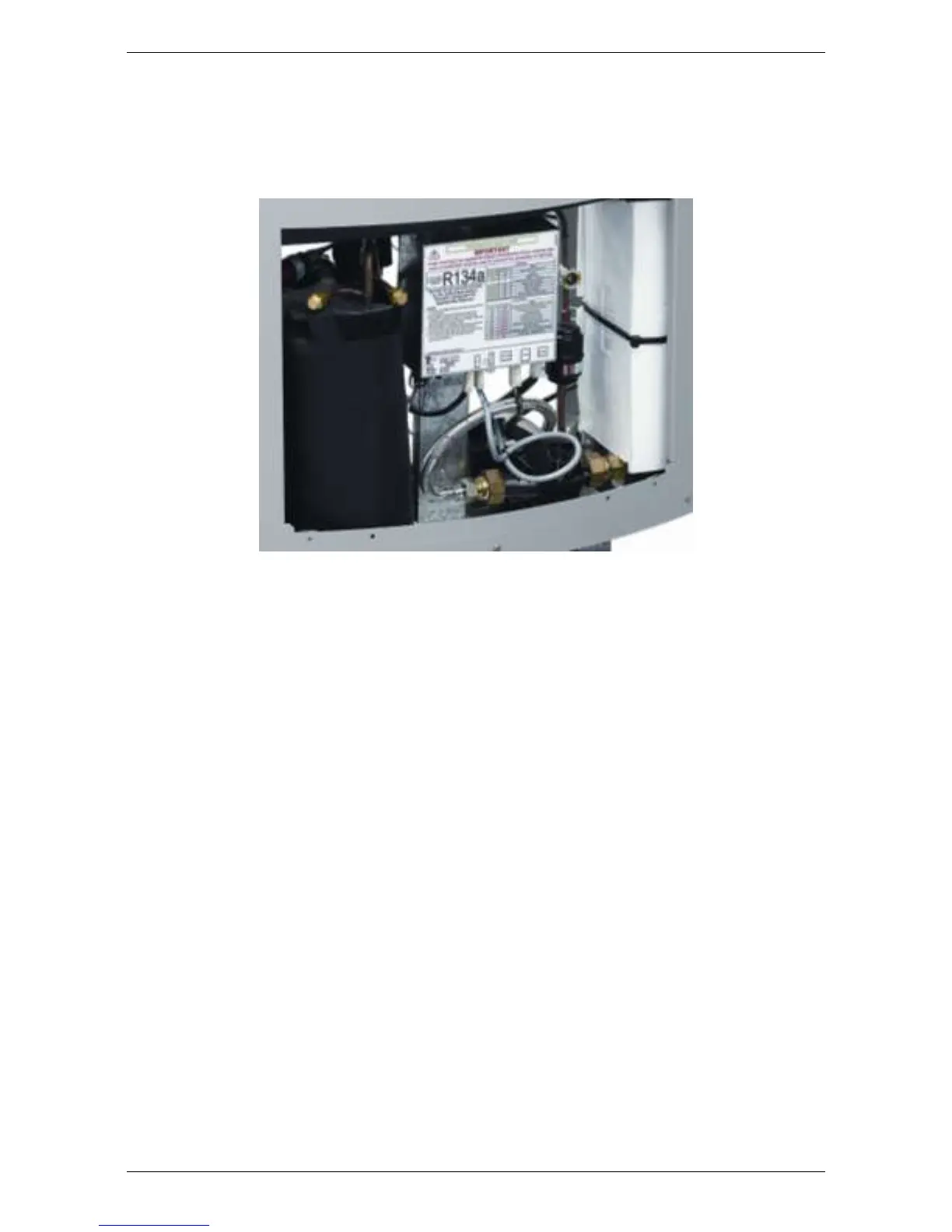

Step 11 and 13
remove front cover from heat pump module
and feed through cables
12. Position Heat Pump Module: Position the edge of the heat pump module
which is closest to the wall against the storage tank so the screw holes in
the module are adjacent to the nutserts in the storage tank.
13. Power Cable and Tank Sensor Cable: Feed the power cable from the
lower front cover and tank sensor cable through the heat pump module so
they protrude out of the front of the module.
14. Flexible Braided Hoses: Retrieve the loose ends of the two flexible
braided hoses from within the heat pump module, and withdraw through
the rear of the heat pump module.
To Next Page
