HEAT PUMP AND TANK ASSEMBLY
24
16. Hot Hose Connection: Attach the flexible braided hose, marked with a
red stripe through the braid and attached to the top of the circulator, to the
non return valve fitting in the upper connection marked “OUTLET” in red
on the storage tank.
Tighten the swivel nut on the hose using a 24 mm spanner.
Tape or sealant is not required.
Position the hose such that when the heat pump module is moved
and secured to the tank, it does not kink.

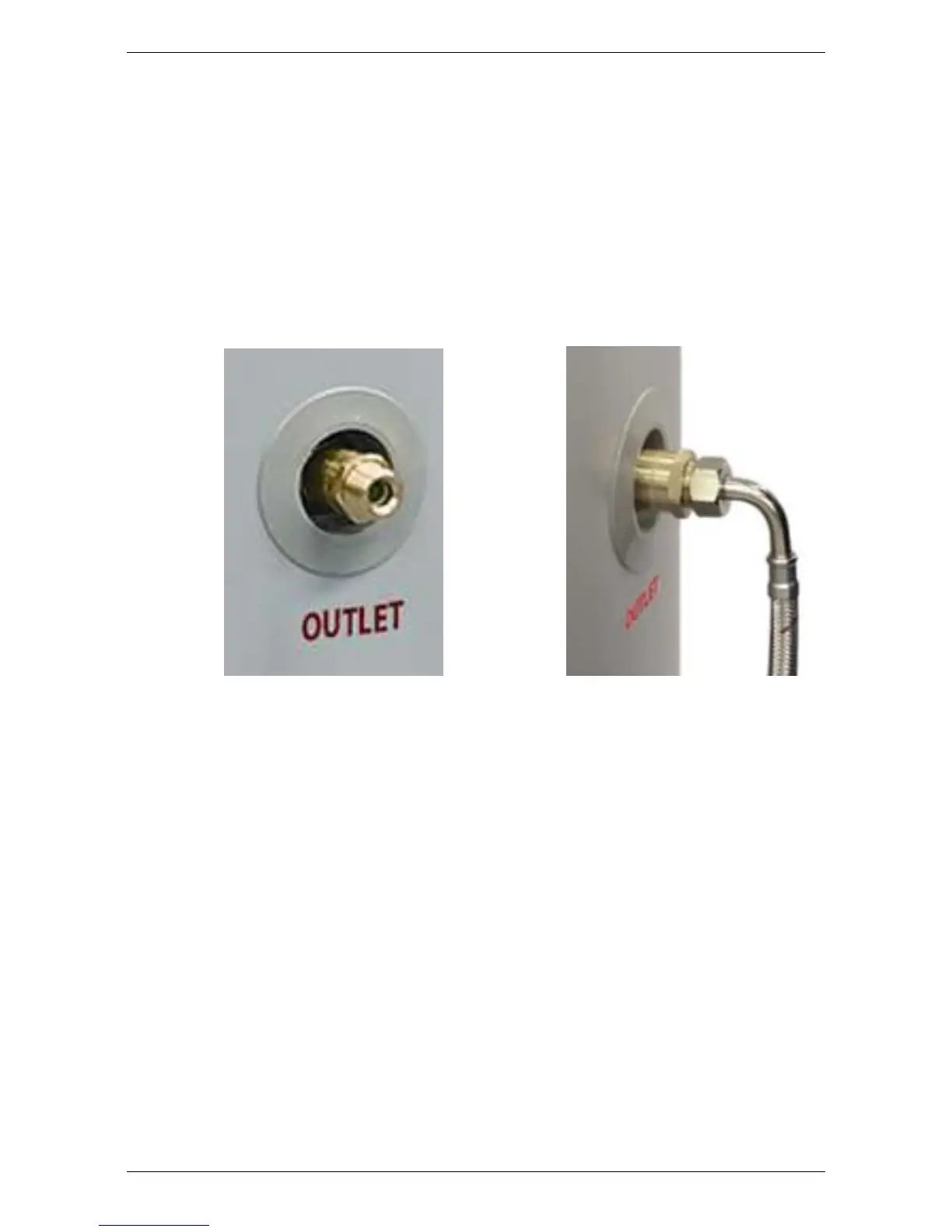

Step 16
attach flexible hose with red stripe to outlet
17. Check Hoses: Check to ensure the flexible hoses are not kinked.
