HEAT PUMP AND TANK ASSEMBLY
25

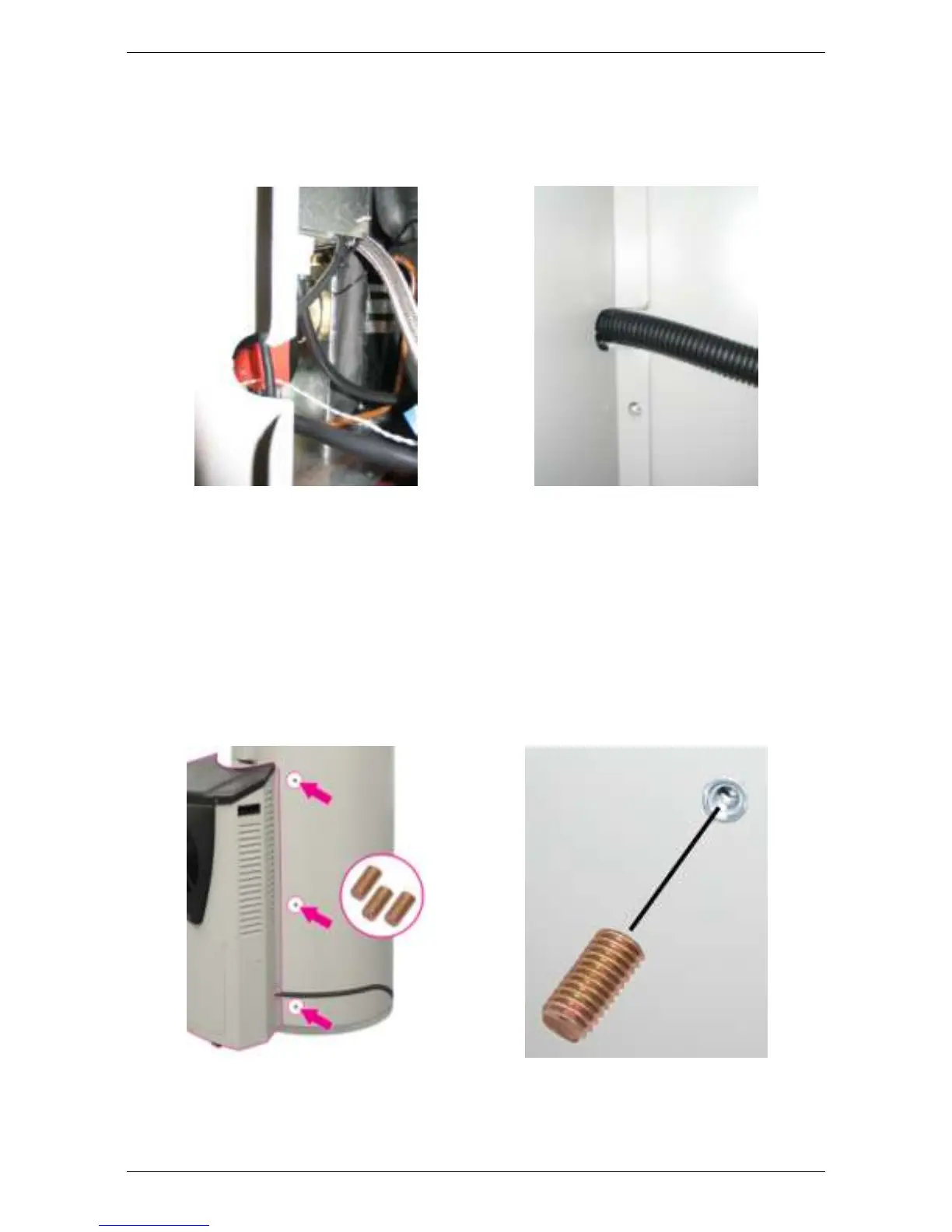

18. Cable Tab – 551 Series: Remove the tab on the side of the electrical
entry to the heat pump module to accommodate the electrical conduit.
Pliers or tin snips may be required to remove the tab.
Step 18
remove the tab on the side of the electrical entry to the heat pump module
19. Studs: Retrieve the three (3) studs from the kit and screw into the
three (3) threaded inserts on the side of the tank closest to the wall.
These studs will assist in aligning the heat pump module for connection to
the storage tank.
Step 19
screw in studs into threaded inserts
To Next Page
