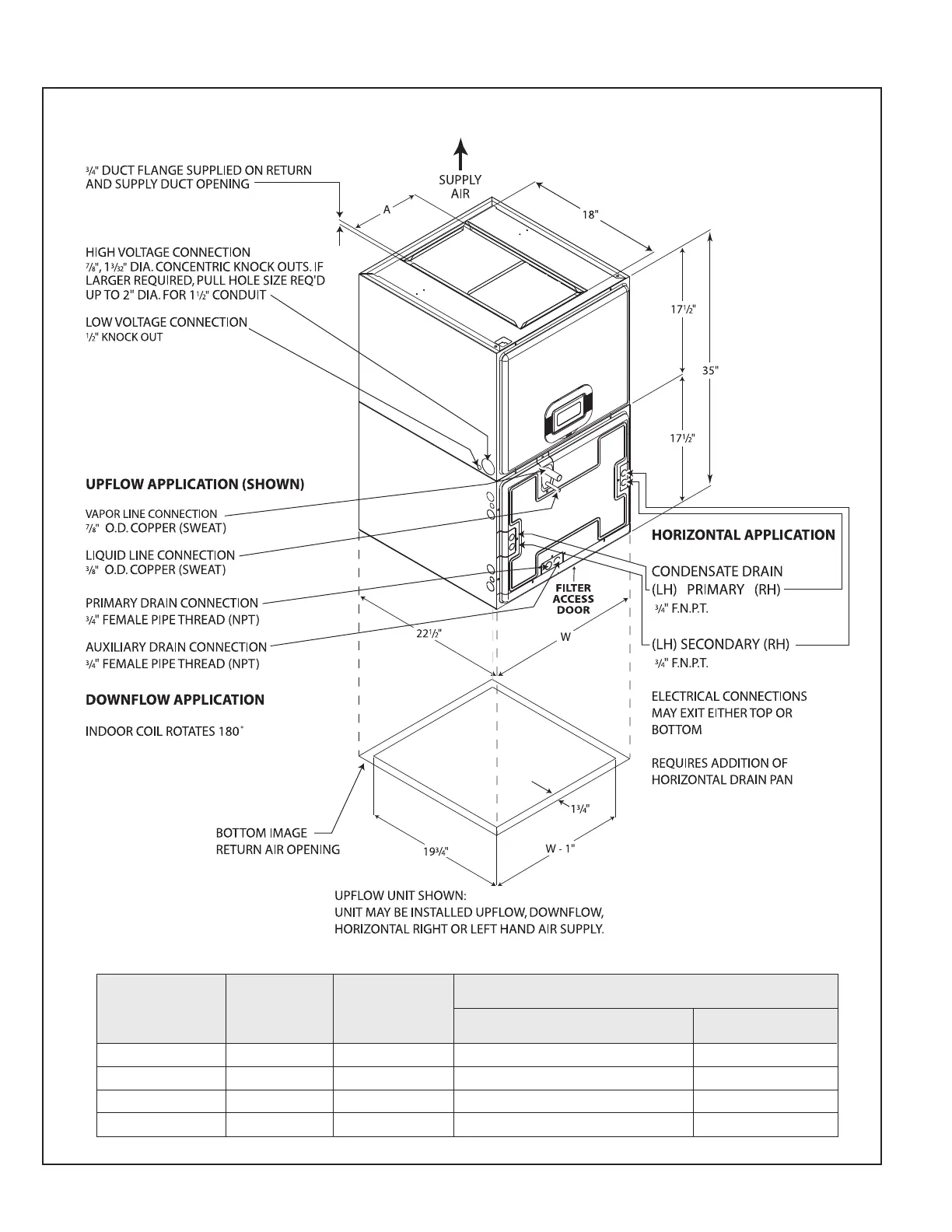

FIGURE 3
DIMENSIONS AND WEIGHTS
NOTE: 24” CLEARANCE REQUIRED
IN FRONT OF UNIT FOR FILTER
AND COIL MAINTENANCE.
DIMENSIONAL DATA
MODEL
CABINET SIZE
UNIT
WIDTH
“W” IN.
SUPPLY
DUCT
“A” IN.
UNIT WITH COIL
(MAX. kw.)
UNIT WEIGHT / SHIPPING WEIGHT (LBS.)*
UNIT WITHOUT COIL
(MAX. kw.)
17 17
1
⁄2"7
9
⁄16" 92/99 [323.6/348.2] 66/75 [232.1/263.8]
21 21" 9
7
⁄16" 109/117 [383.3/411.5] 79/87 [277.8/306]
24 24
1
⁄2" 11
3
⁄4" 125/134 [439.6/471.3] 88/97 [309.5/341.1]
25 24
1
⁄2" 11
3
⁄4" 125/134 [439.6/471.3] 88/97 [309.5/341.1]
2.5 DIMENSIONS AND WEIGHTS

Rheem RBHP-21J11SH2 Specifications

General

Brand	Rheem
Model	RBHP-21J11SH2
Category	Air Handlers
Refrigerant	R-410A
Voltage	208/230V
Phase	1
Depth	21 in
Fan Motor Type	PSC
Fan Speed	Multi-speed
