Rheem RPH Series - Unit Dimensions

7
7. Dimension
※ The above product data is subject to change without notice.

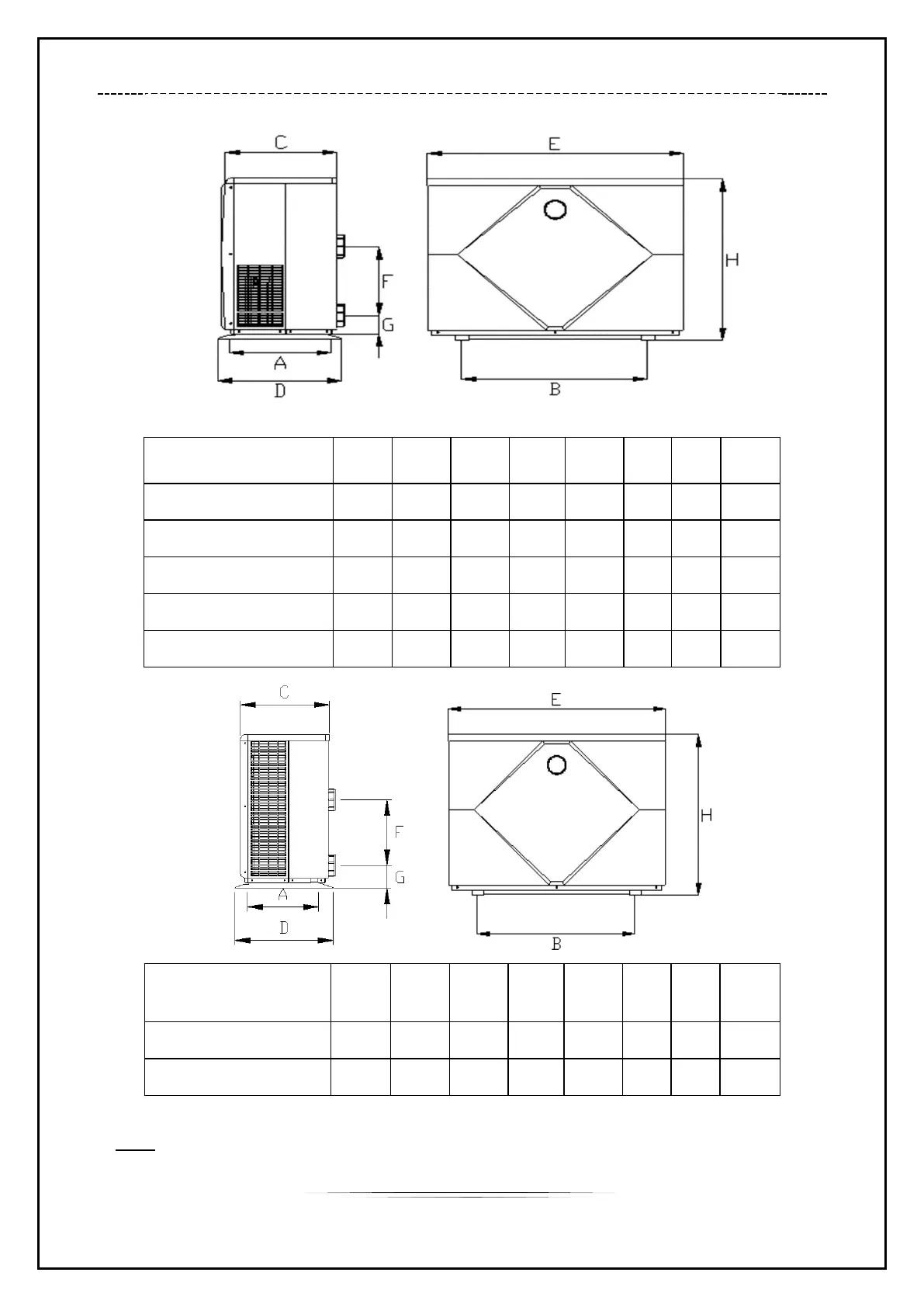

Note: The product pictures and dimensions above are specification diagrams for use by technician’s
installers and for layout reference only.
Size (mm)
Model
A
B
C
D
E
F
G
H
RPH009-1A
410
645
387
430
890
250
75
657
RPH013-1A
410
645
387
430
890
290
75
657
RPH016-1A
410
645
387
430
890
280
75
657
RPH021-1A
410
710
387
430
1060
390
75
657
RPH024-1A
410
710
387
430
1060
390
75
757
Size(mm)
Model
A
B
C
D
E
F
G
H
RPH028-1A
410
710
390
430
1060
640
75
957
RPH028-3A
410
710
390
430
1060
640
75
957
