Rheem RPH Series - Water Pump Control Connections; Hard-Wired Methods

19

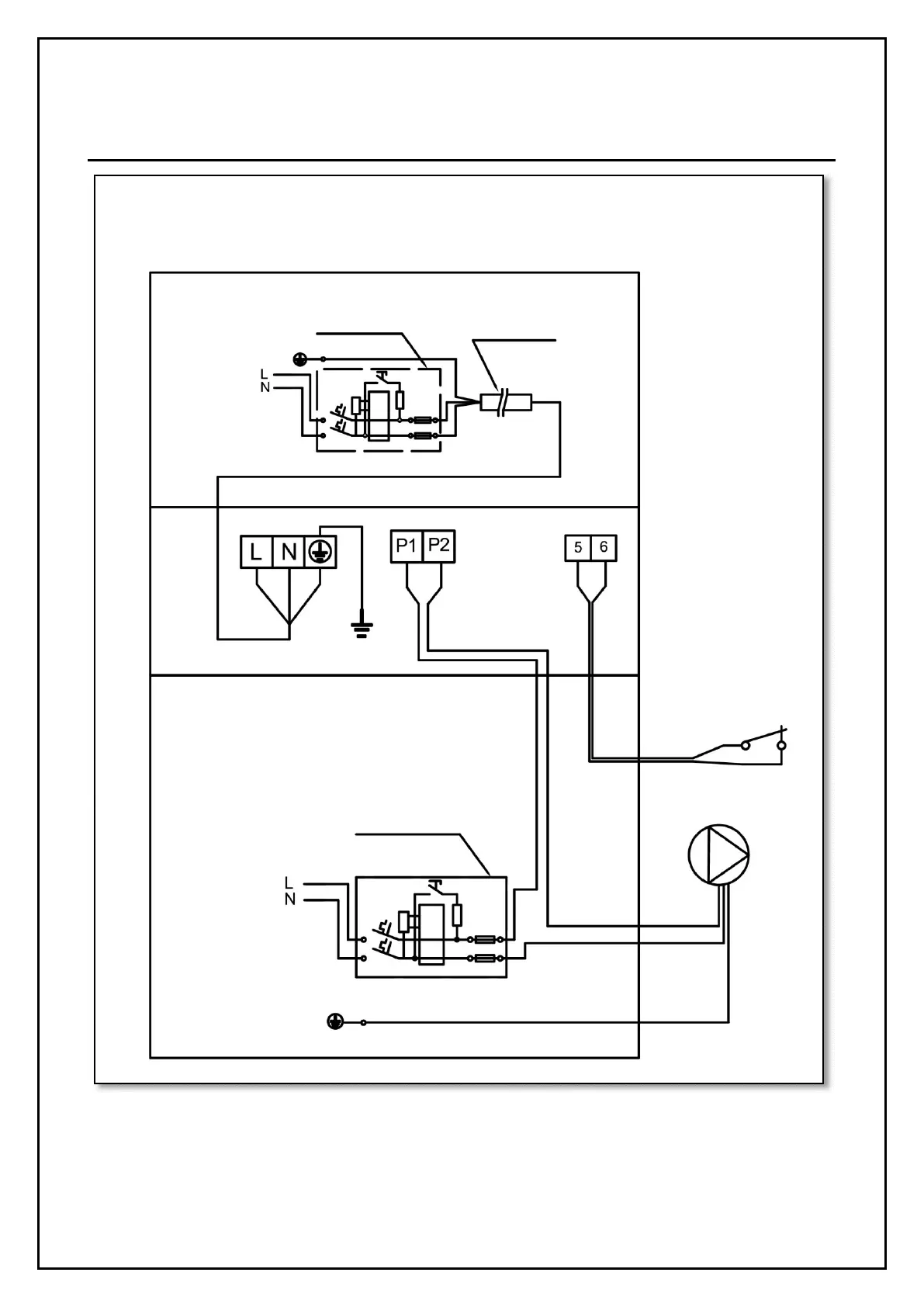

I. Hard Wired - Methods of Water Pump Control Connections
Breaker & Fuse.
Electrician to prepare
and supply
Breaker & Fuse.
Electrician to prepare
and supply
Water pump: 240V volt, ≤ 500W capacity
Breaker & Fuse. Electrician
to prepare and supply
Power cord
Earthing
Power Supply
240V~/50Hz
Water
pump
Customer remote
control switch
connector
Breaker & Fuse. Electrician
to prepare and supply
Water Pump
Power Supply
240V~/50Hz
Earthing
