RHINO PelcoD 2400bps on RS485 User Manual

Securview DVRAPEX on ID01 and Pelco-D at 2400Bps

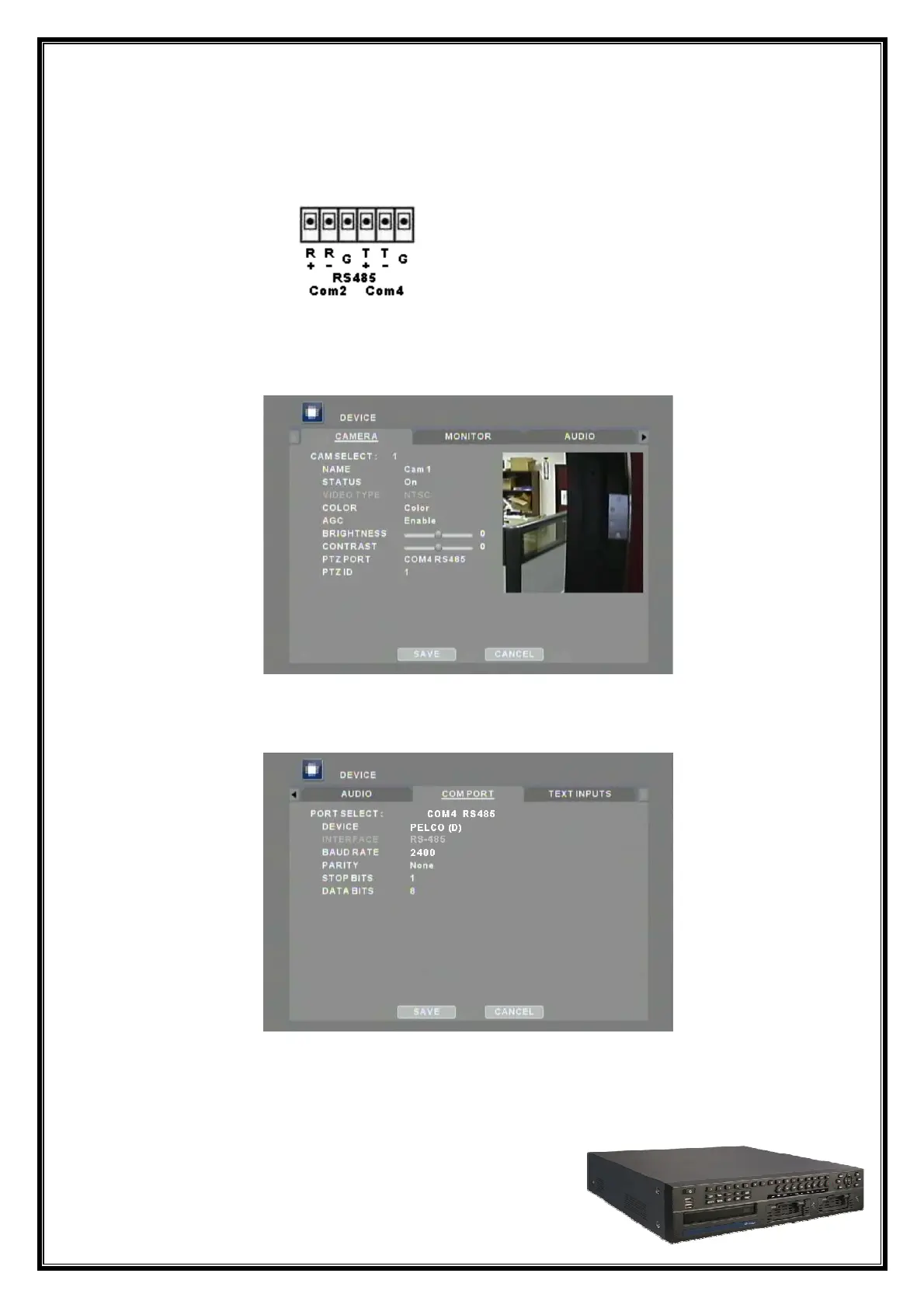

For 2 wire RS485 connection on rear of DVR:
RS485+ (Tx+) Com4
RS485- (Tx-) Com4
Set the DVR to use the PTZ by going into ‘MENU’ > ‘DEVICE’ > ‘CAMERA’. Then set ‘CAM SELECT #’
to: PTZ PORT: COM4 RS485 and PTZ ID: 1.
Then go to ‘MENU’ > ‘DEVICE’ > ‘COM PORT’.
Set PORT SELECT: COM4 RS485, DEVICE: PELCO(D), BAUDRATE: 2400.
© Copyright 2009 RhinoCo Technology Page 10
