Samsung VSSAM-SCC3100A on ID01 and Pelco-D at 4800Bps

Note: The Samsung VSSAM-SCC1300A does not support a baudrate of 2400bps, and it is

therefore necessary to run any PTZ cameras on 4800bps or above.

For Power Connection:

12vDC+

12vDC-

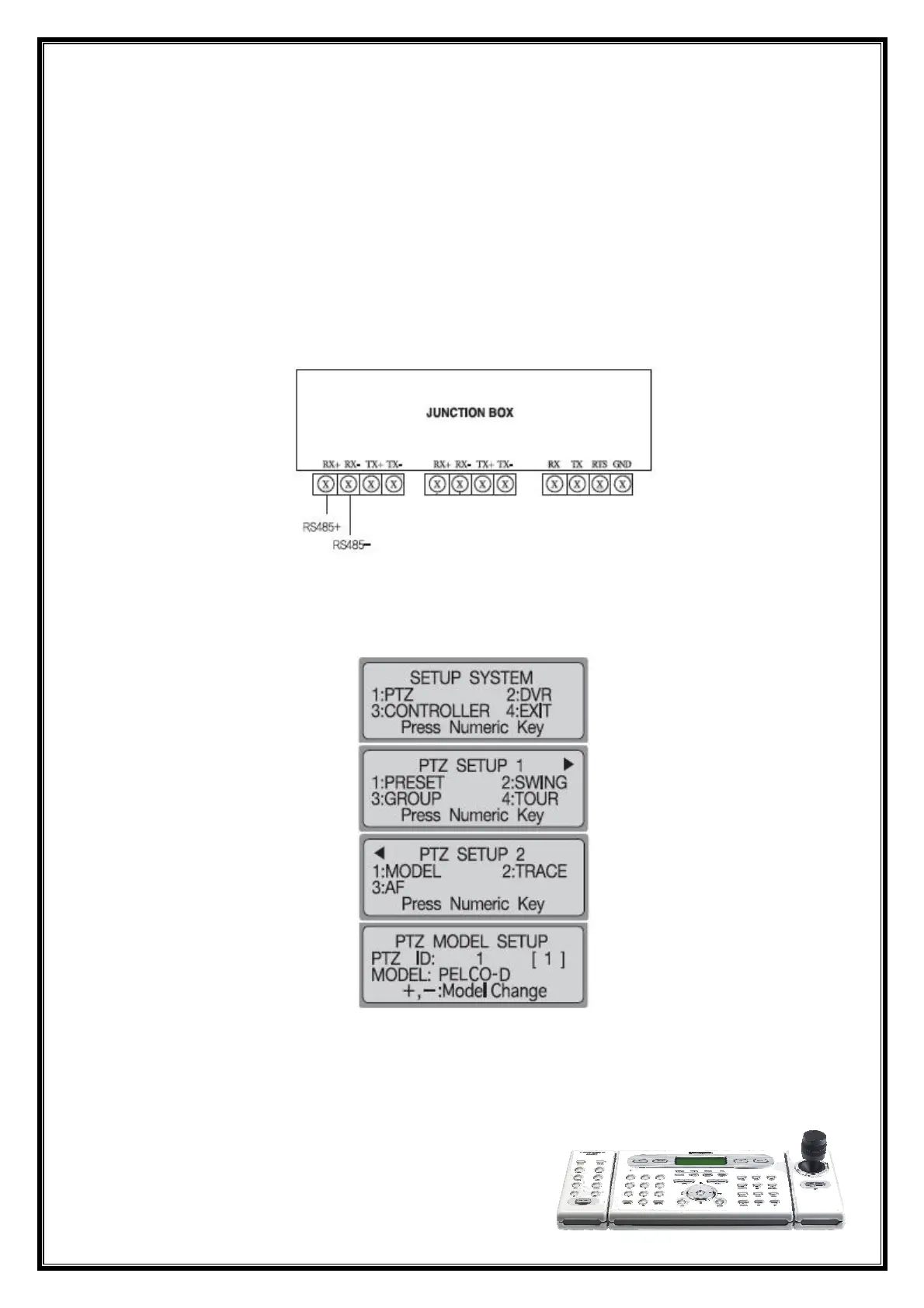

For 2 wire RS485 connection:

Press ‘PTZ’ to enter PTZ mode. Press ‘MENU’ to enter setup, then press ‘1’ to enter ‘PTZ SETUP 1’.

Press ‘>>’ to enter ‘PTZ SETUP 2’ and then press ‘1’ to choose the model. You can then type ‘01’ on the

keypad to enter ID01 and press the ‘+/-‘ buttons to select ‘PELCO-D’ as the protocol.
