RHINO RFCEC001 User Manual

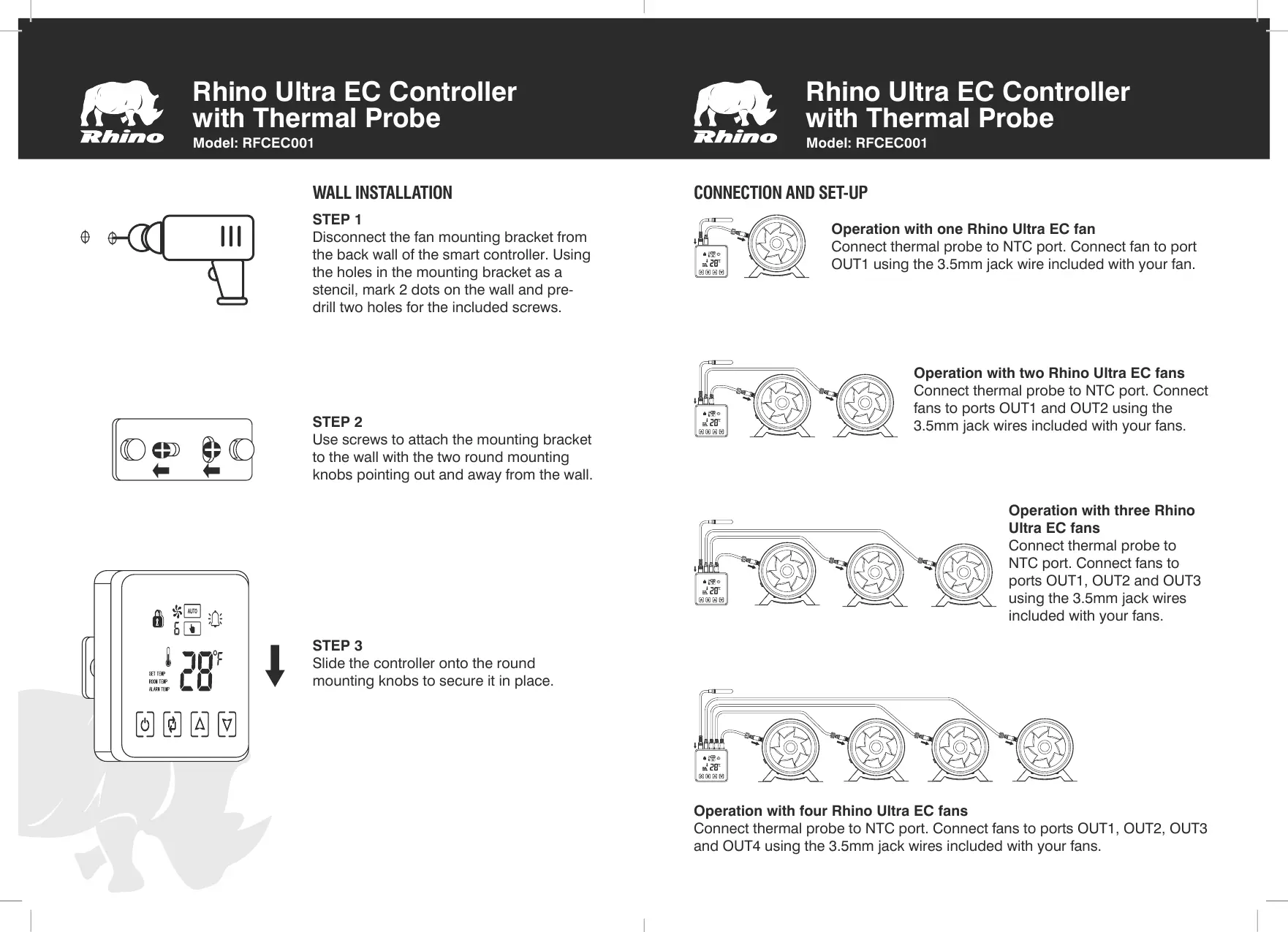

WALL INSTALLATION
STEP 1
Disconnect the fan mounting bracket from
the back wall of the smart controller. Using
the holes in the mounting bracket as a
stencil, mark 2 dots on the wall and pre-
drill two holes for the included screws.
CONNECTION AND SET-UP
Operation with four Rhino Ultra EC fans
Connect thermal probe to NTC port. Connect fans to ports OUT1, OUT2, OUT3
and OUT4 using the 3.5mm jack wires included with your fans.
Operation with three Rhino
Ultra EC fans
Connect thermal probe to
NTC port. Connect fans to
ports OUT1, OUT2 and OUT3
using the 3.5mm jack wires
included with your fans.
Operation with two Rhino Ultra EC fans
Connect thermal probe to NTC port. Connect
fans to ports OUT1 and OUT2 using the
3.5mm jack wires included with your fans.
Operation with one Rhino Ultra EC fan
Connect thermal probe to NTC port. Connect fan to port
OUT1 using the 3.5mm jack wire included with your fan.
STEP 3
Slide the controller onto the round
mounting knobs to secure it in place.
STEP 2
Use screws to attach the mounting bracket
to the wall with the two round mounting
knobs pointing out and away from the wall.
Rhino Ultra EC Controller
with Thermal Probe
Model: RFCEC001
Rhino Ultra EC Controller
with Thermal Probe
Model: RFCEC001
