OPERATION
8. CUTTING HEIGHT ADJUSTMENT
Avoid personal injury! Be sure tractor engine is off, key is removed, and ALLOW BLADES
TO STOP TURNING before dismounting to make adjustments.
1. Using the tractor, raise the mower off the ground and support under it with secure blocking so not to let the
mower drift down during maintenance.

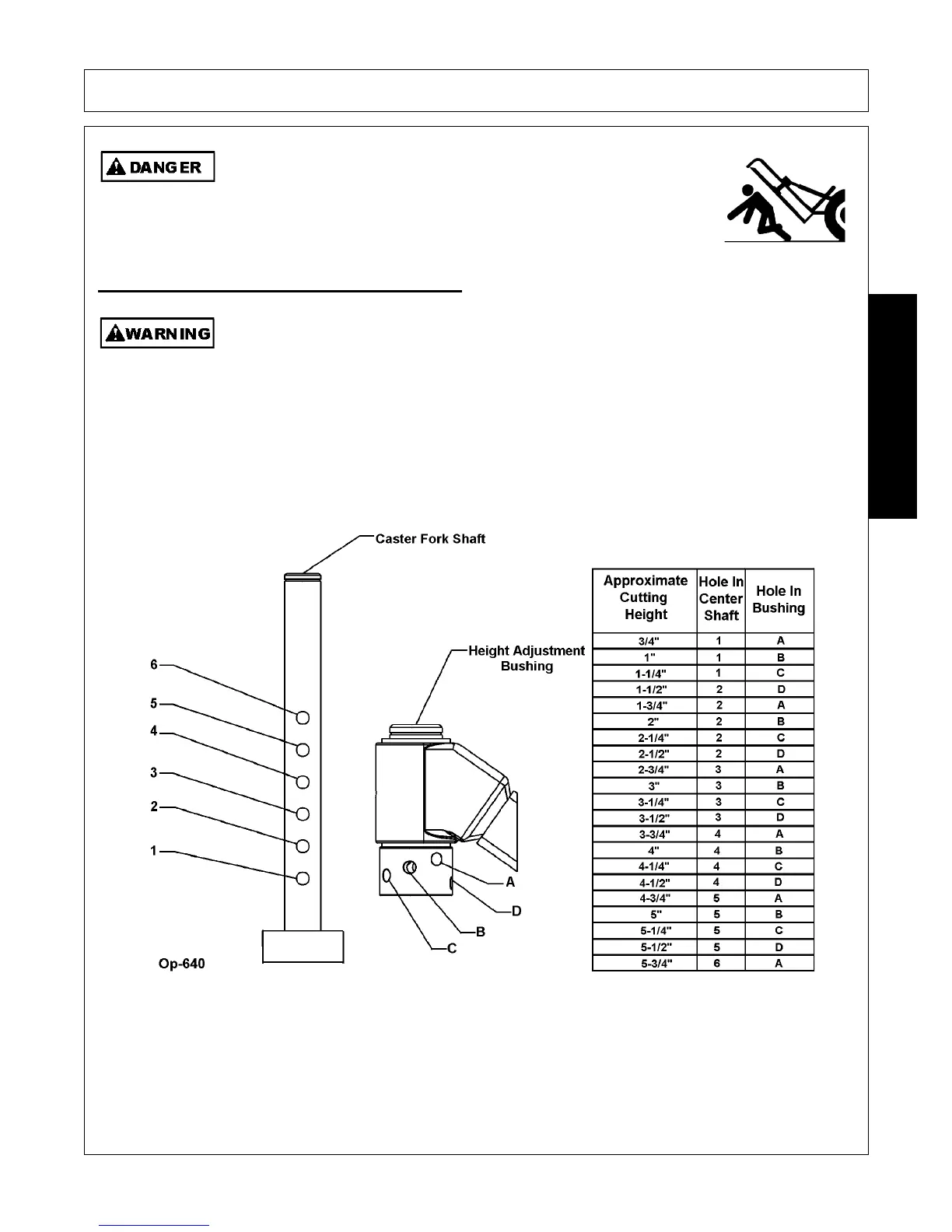

2. Holding wheel and fork assembly, remove quick-lock pin. Position for at approximate height and install lock
pin in appropriate holes per table below. Placing pin in hole “D” in bushing a hole “1” in for shaft gives 1-1/
2” approximate cutting height.
Never work under the Implement, the framework, or any lifted
component unless the Implement is securely supported or blocked up
to prevent sudden or inadvertent falling which could cause serious
injury or even death.
(SG-14)
