ASSEMBLY

TM60/72/84/100 02/11 Assembly Section 3-6

ASSEMBLY

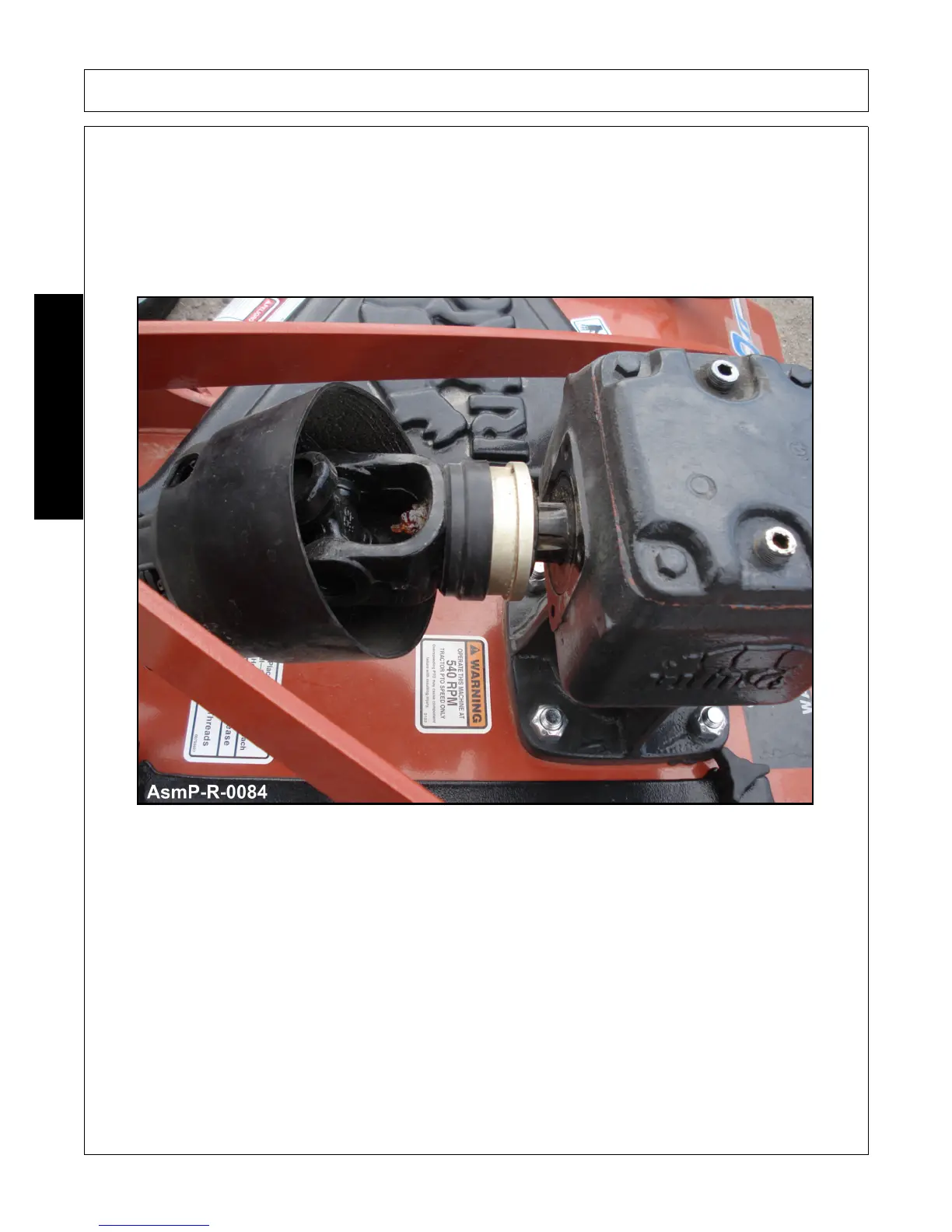

DRIVELINE ATTACHMENT - TO GEARBOX

1. Insert yoke onto splined shaft. Pull slide collar so yoke and slide onto gearbox shaft.

2. Move yoke back and forth until collar clicks and locks the yoke in place.

Note: Shield has been removed for clarity.
