RF On – To decide whether to enable the selected RF (carrier A/B) output or not.
Bandwidth –Bandwidth selecting. (The default bandwidth is 8M)
Constellation –QAM type selecting. (The default constellation is 64QAM)
Transmission Mode –2K, 8K optional
Guard Interval/Code Rate/RF Frequency/RF Out level – the default configuration
is as shown on Figure 9.
ASI Output– Carrier output channel selecting (Output A: The ASI output
programs are same as carrier output A. Output B: The ASI output programs are
same as carrier output B.)
After setting all the parameters, click “Apply” to save the Modulator
Configuration.

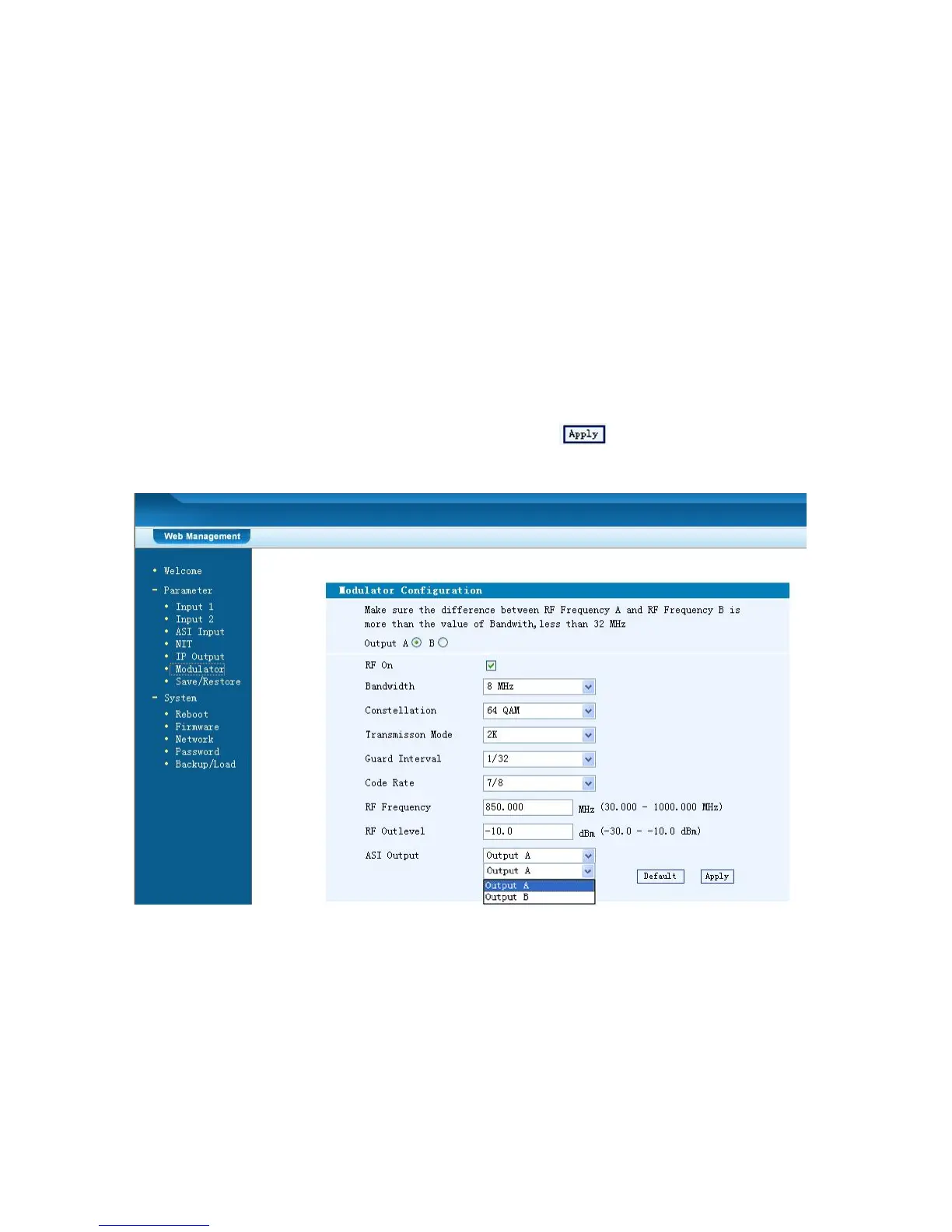

Figure-9
Save/Restore
Clicking “Save/Restore” from the menu, it will display the screen as Figure-10 where
can save the configuration permanently to the device. Click “Save Configuration”,
for store the data permanently to the device.
By using “Restore Configuration” user can restore the latest saved configuration to
