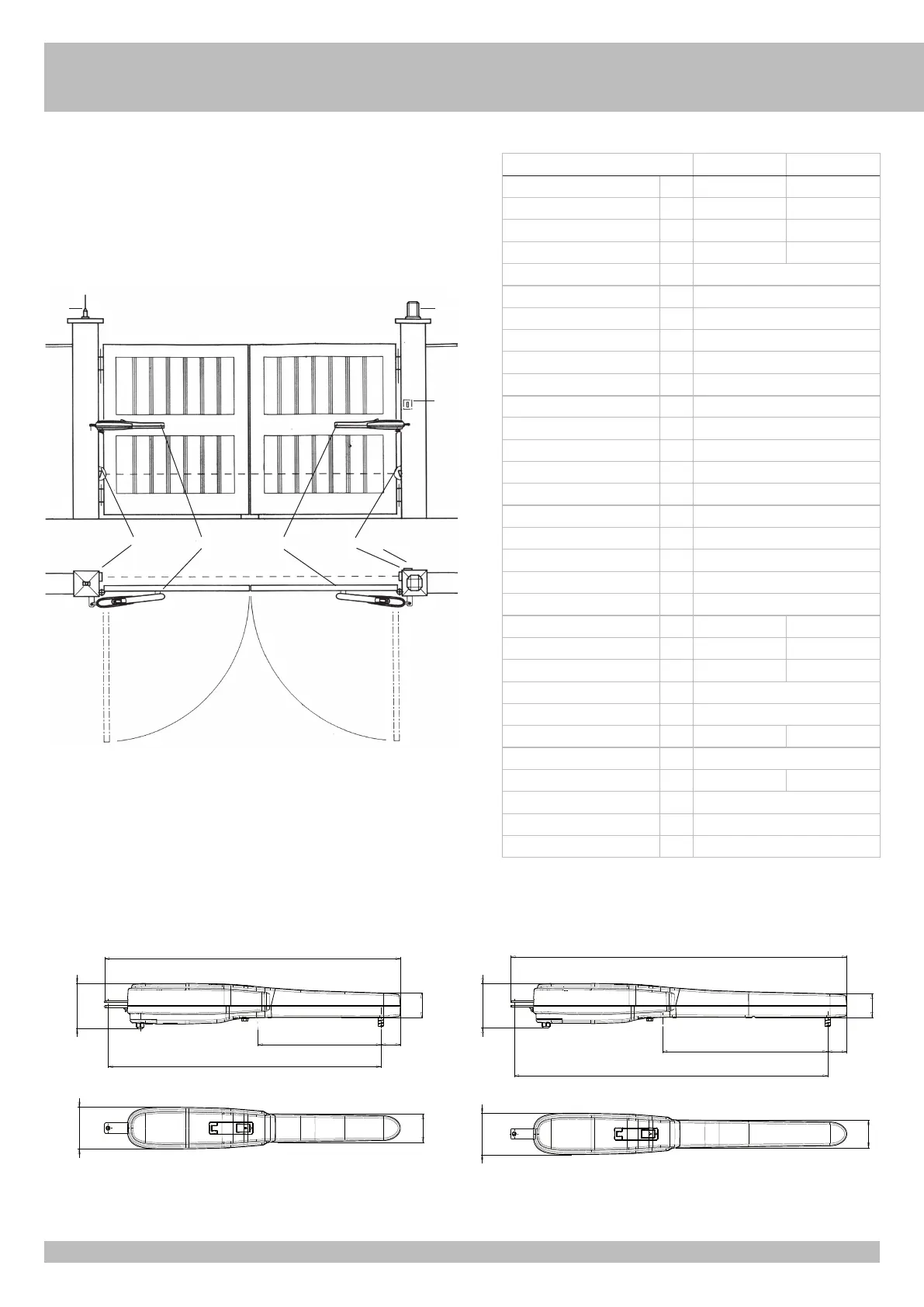

TECHNICAL FEATURES
KING EVO is a series of linear irreversible operators, suitable for opening gates with a leaf
length of up to 5 metres (Fig.1).
The KING EVO operators use mechanical stoppers, thus avoiding the need for electrical
limit switches.
On reaching the travel limit, the motor continues to operate for a few seconds, until the
timer of the control unit cuts in.
Measurements in mm
* With incorporated mechanical stop that cuts in during opening. - If the mechanical stop is used
during closing (optional), the maximum travel is reduced by 40 mm.
** KING EVO ICE and KING EVO ICE L =
-30 ÷ +55°C
1 - KING EVO operator
2 - Tuned aerial
3 - Flashing lamp
4 - Key selector
5 - Photoelectric cells (external)
❺
❹
❶
❶
❺
❹
❷
❸
TECHNICAL DATA
KING EVO KING EVO L
Max. leaf length m 4 5
Max. leaf weight kg 400 500
Max. travel mm 368* 498*
Average opening time s. 20÷25 26÷33
Operating speed m/s. 0,0125
EEC Power supply 230V~ 50Hz
Thrust force N 2570
Motor capacity W 255
Power absorbed A 1,13
Capacitor µF 6,3
Power supply 220V~ 60Hz
Thrust force N 2540
Motor capacity W 252
Power absorbed A 1,1
Capacitor µF 6,3
Power supply 120V~ 60Hz
Thrust force N 2027
Motor capacity W 261
Power absorbed A 2,18
Capacitor µF 25
Normative cycles 230V n° 17 - 20s/2s 10 - 26s/2s
Normative cycles 220V n° 19 - 20s/2s 10 - 26s/2s
Normative cycles 120V n° 15 - 20s/2s 8 - 26s/2s
Daily operations suggested n° 150
Service 60%
Guaranteed consecutive cycles n° 30/19s 20/26s
Grease Bechem - RHUS 550
Weight of electroreducer kg 12,5 13,3
Noise db <70
Operating Temperature ** °C -10 ÷ +55
Protection IP 44
1
SYSTEM LAY-OUT
