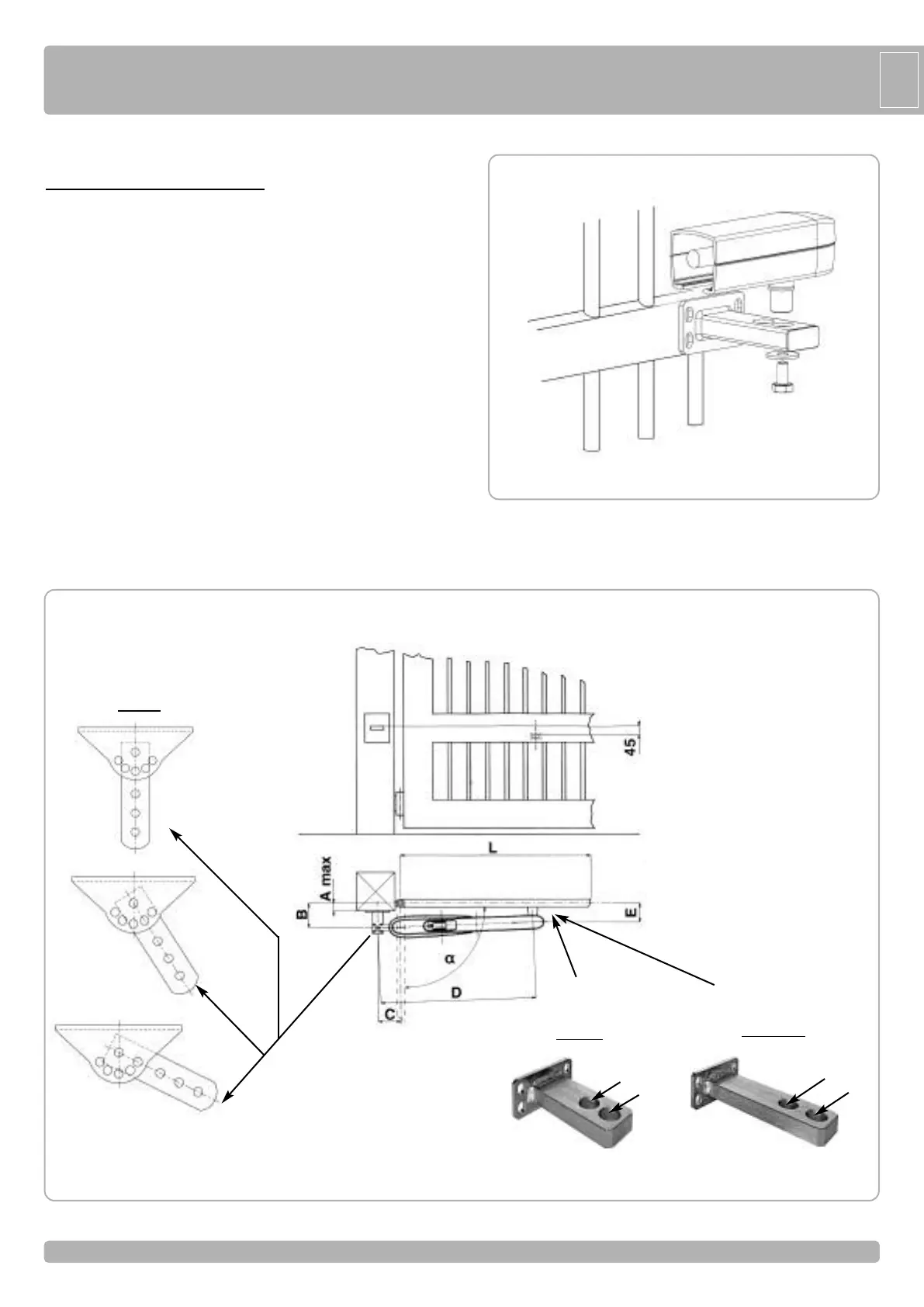

FIXING THE OPERATOR ATTACHMENT TO THE GATE
(to see the TABLES of the measures).
Weld the base at the right height (Fig. 8).
Fix the KING and try several times to open and to close the gate,
controlling that the screwcover does not touch the moving gate.
9
8
ANT
Leaf attachment
KING
S2
S3
S1
Z
Y
X
Z Y X
Z Y
X
COL
Column attachment
KING
ANT KING L
Leaf attachment
KING L
B
A
C
D
