1. Guide to Components

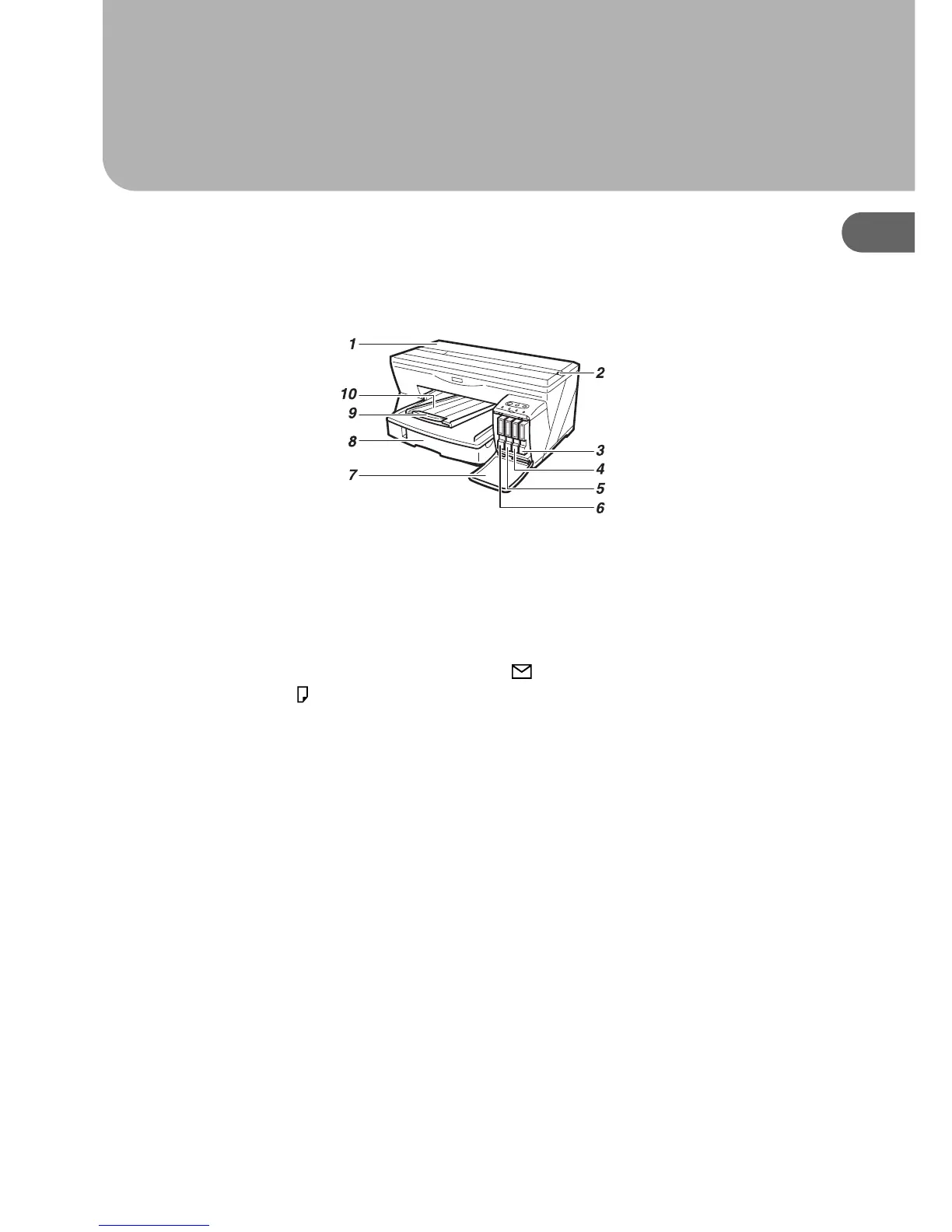

Printer Body
1 Top cover
Keep this cover closed during printing. If you cannot locate paper jams, or jammed paper can-
not be removed easily, you can check the condition of paper from the top of the printer.
2 Envelope selector
For envelopes, set the lever to the rear position ; for everything else, set the lever to the for-
ward position .
3 Print cartridge (yellow)
4 Print cartridge (magenta)
5 Print cartridge (cyan)
6 Print cartridge (black)
7 Right front cover
Keep this cover closed during printing. Open to install or replace print cartridges.
8 Tray 1
Load paper here.
9 Output tray extension
Pull out when using paper larger than A4/Letter to keep the printed paper from falling.
10 Output tray
Prints are delivered to this tray.
When using paper larger than A4/Letter, pull out the output tray extension.
AGK001S
