• If the optional Gigabit Ethernet board is installed, only the Ethernet interface and USB interface on
the Gigabit Ethernet board can be used.
Connecting to the Ethernet Interface
This section describes how to connect Ethernet interface cable to the Ethernet interface.
• If the main power switch is on, turn it off.
• Use the following Ethernet cables.
• Unshielded Twisted Pair Cable (UTP) or Shielded Twisted Pair Cable (STP) and Category type
5 or more

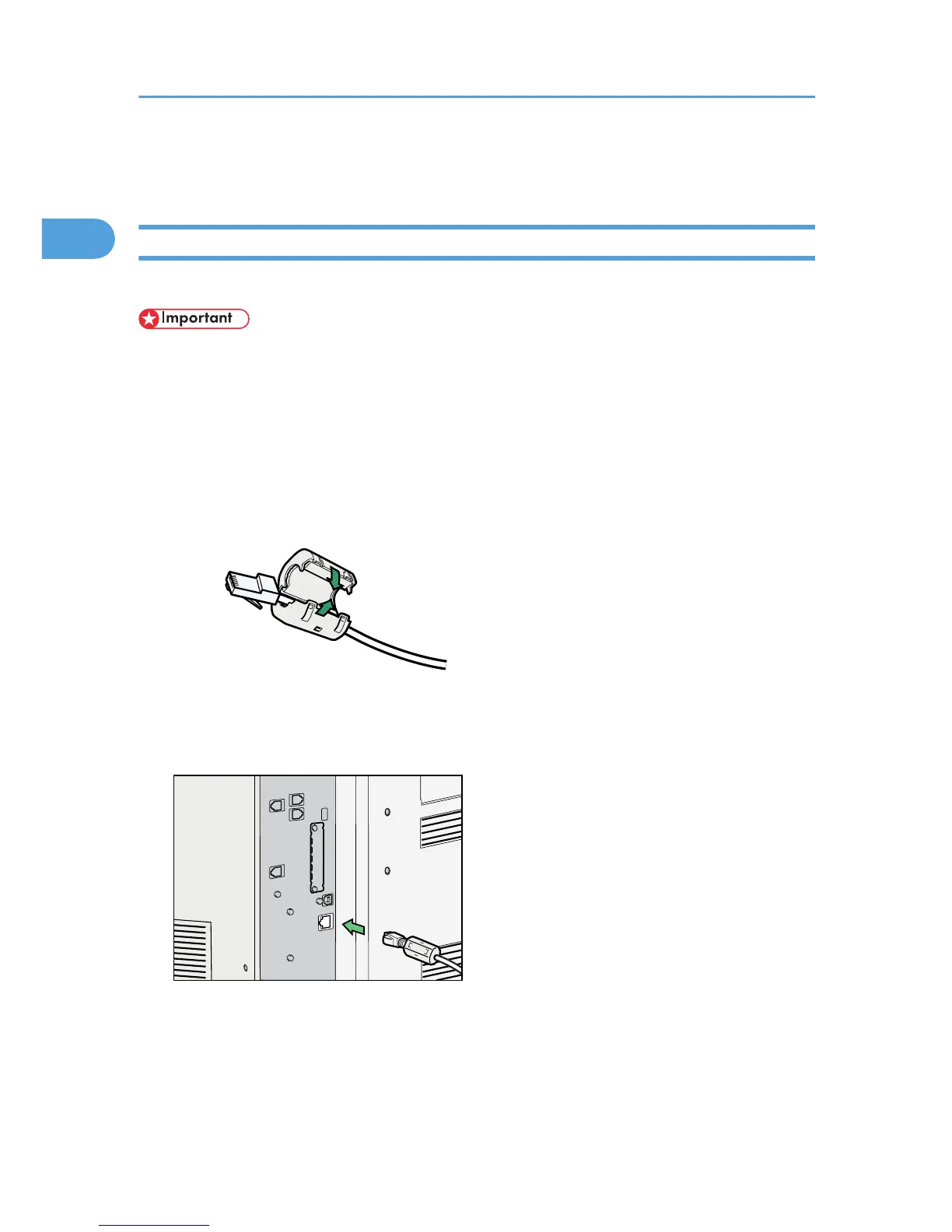

1. Attach the supplied ferrite core at the machine end of the Ethernet interface cable.
2. Make sure the main power switch of the machine is off.
3. Connect the Ethernet interface cable to the 10BASE-T/100BASE-TX port.
4. Connect the other end of the Ethernet interface cable to a network connection device such
as a hub.
1. Connecting the Machine
