Electrical Components
SM 4-107 D129/D130
Replacement
and
Adjustment

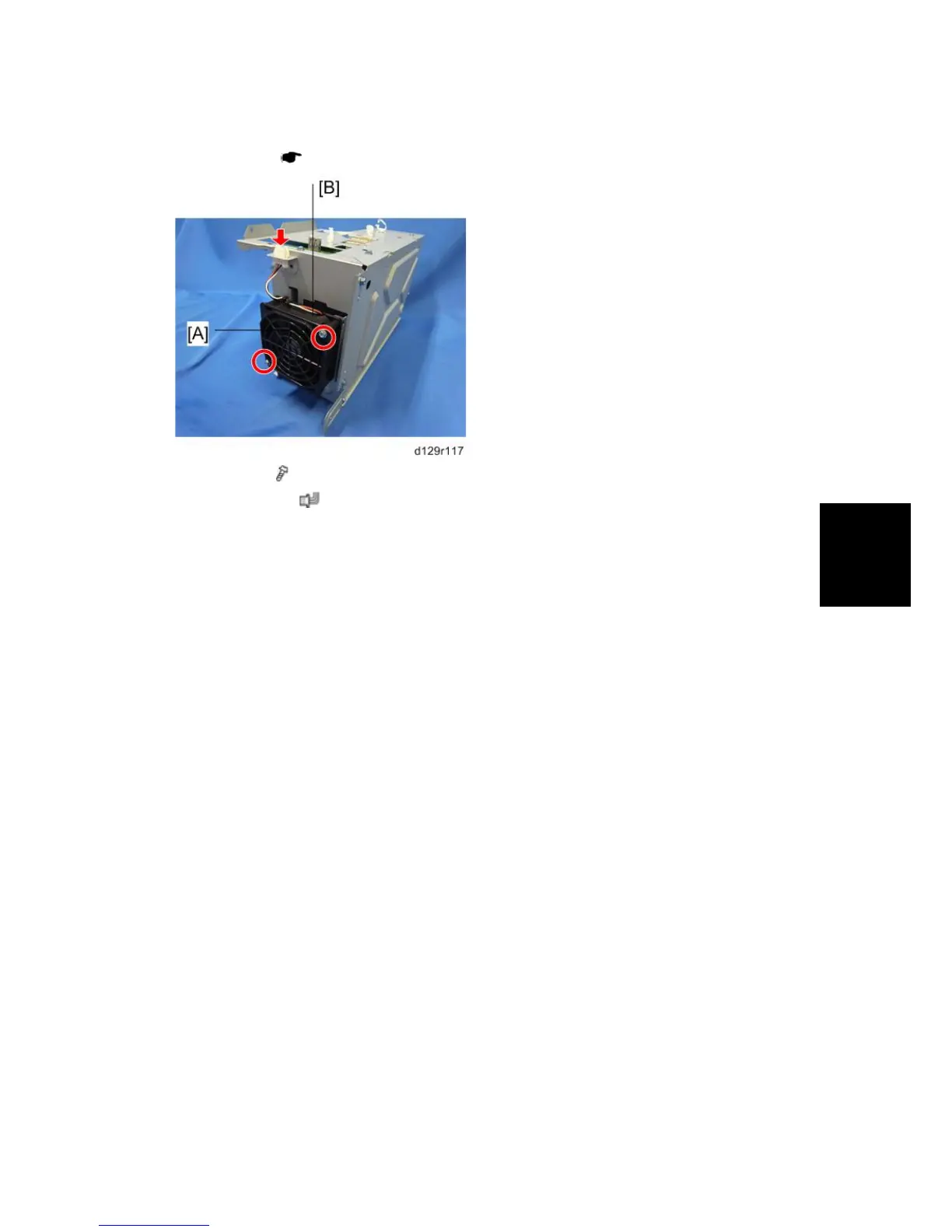

4.15.12 CONTROLLER FAN
1. Controller box ( p.4-101 "Mother Board")
2. Fan cover [A] ( x 2)
3. Controller fan [B] (
x 1)
When installing the controller fan
Make sure that the controller fan is installed with its decal facing upward.
