Page 9 of 87

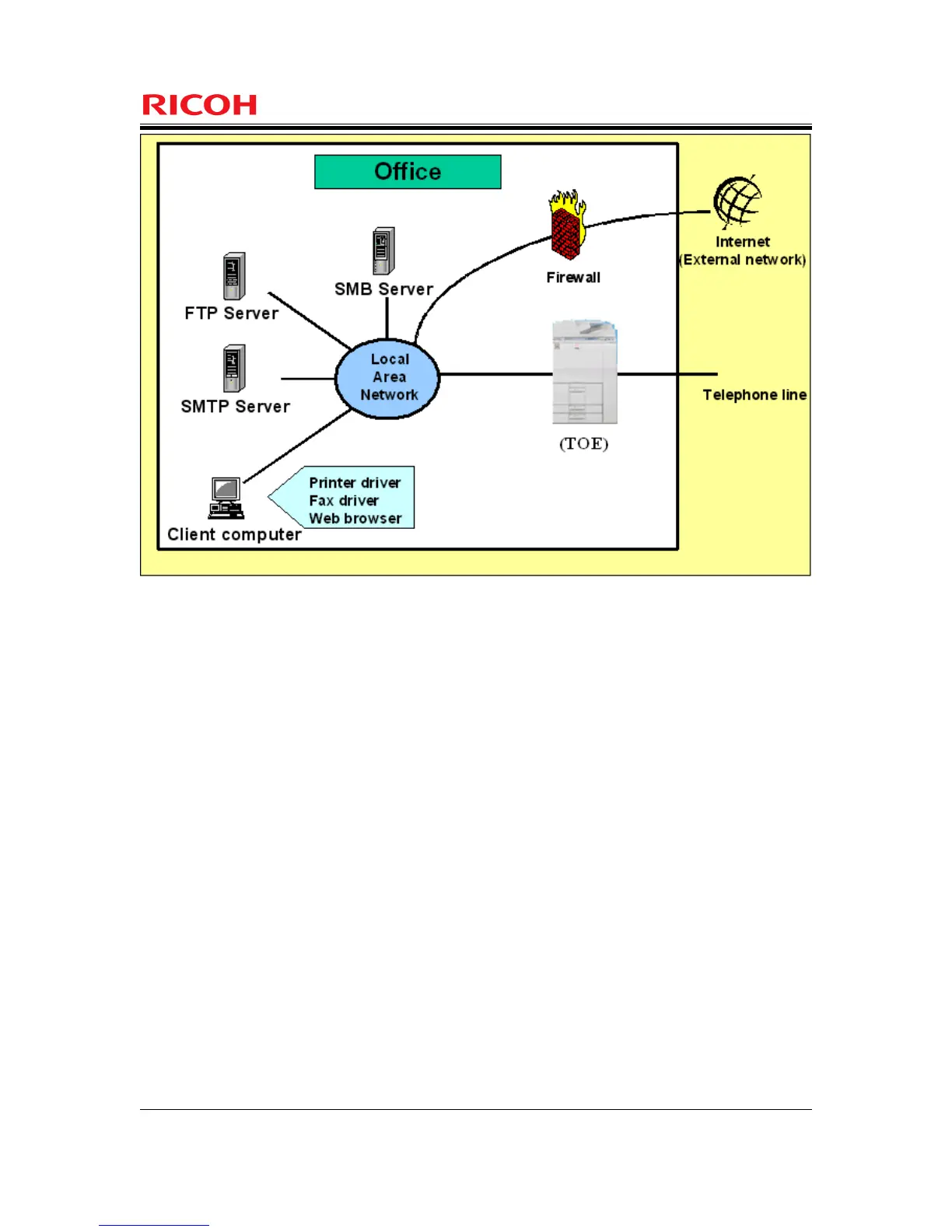

Figure 1 : Example of TOE Environment
The TOE is assumed to be used in an office environment, as shown in
Figure 1. Users can operate the
TOE from the Operation Panel of the TOE or a client computer connected to the local area network.
The operational environment is described below:
[Local area network]
Indicates the local area network (hereafter "LAN") used in the office environment.
[MFP]
Indicates the TOE itself. It is connected to the office LAN, and users can perform the following
operations from the Operation Panel of the MFP:
- Various settings for the MFP,
- Copy, fax, storage, and network transmission of paper documents,
- Print, fax, network transmission, and deletion of the stored documents.
Also, the TOE receives information via telephone lines and can store it as a document.
[Client computer]
Performs as a client of the TOE if it is connected to the LAN, and users can remotely operate the MFP
from the client computer. The possible remote operations from the client computer are as follows:
- Various settings for the MFP using a Web browser,
- Print, fax, network transmission, and deletion of user documents using a Web browser,
- Store and print of documents using the printer driver,
Copyright (c) 2011 RICOH COMPANY, LTD. All rights reserved.
