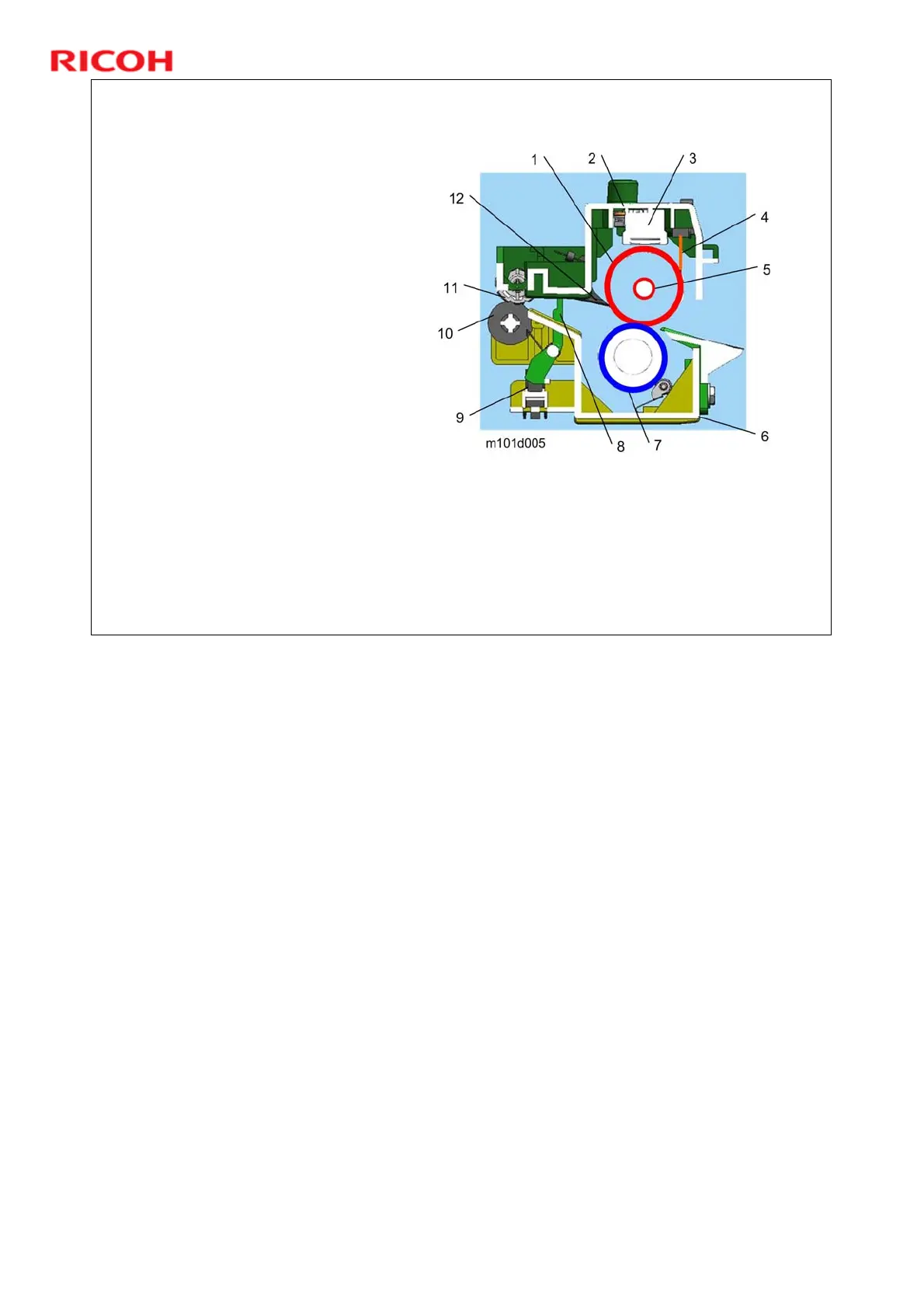

Image Fusing
 Toner is fused to the paper by the hot roller and pressure
roller.
 The exit sensor detects whether or not paper is ejected
from the fusing unit (jam detection).
1. Hot roller
2. Fusing unit casing (upper)
3. Thermostat
4. Thermistor
5. Fusing lamp
6. Fusing unit casing (lower)
7. Pressure roller
8. Exit sensor actuator
9. Lower exit rollers
10. Upper exit rollers
11. Stripper pawls
