Flatbed Scanner
 The M102 and M103 have the flatbed scanner.
 The CIS (1) and flatbed scanner motor (2) are the only two
electrical components in the flatbed scanner.

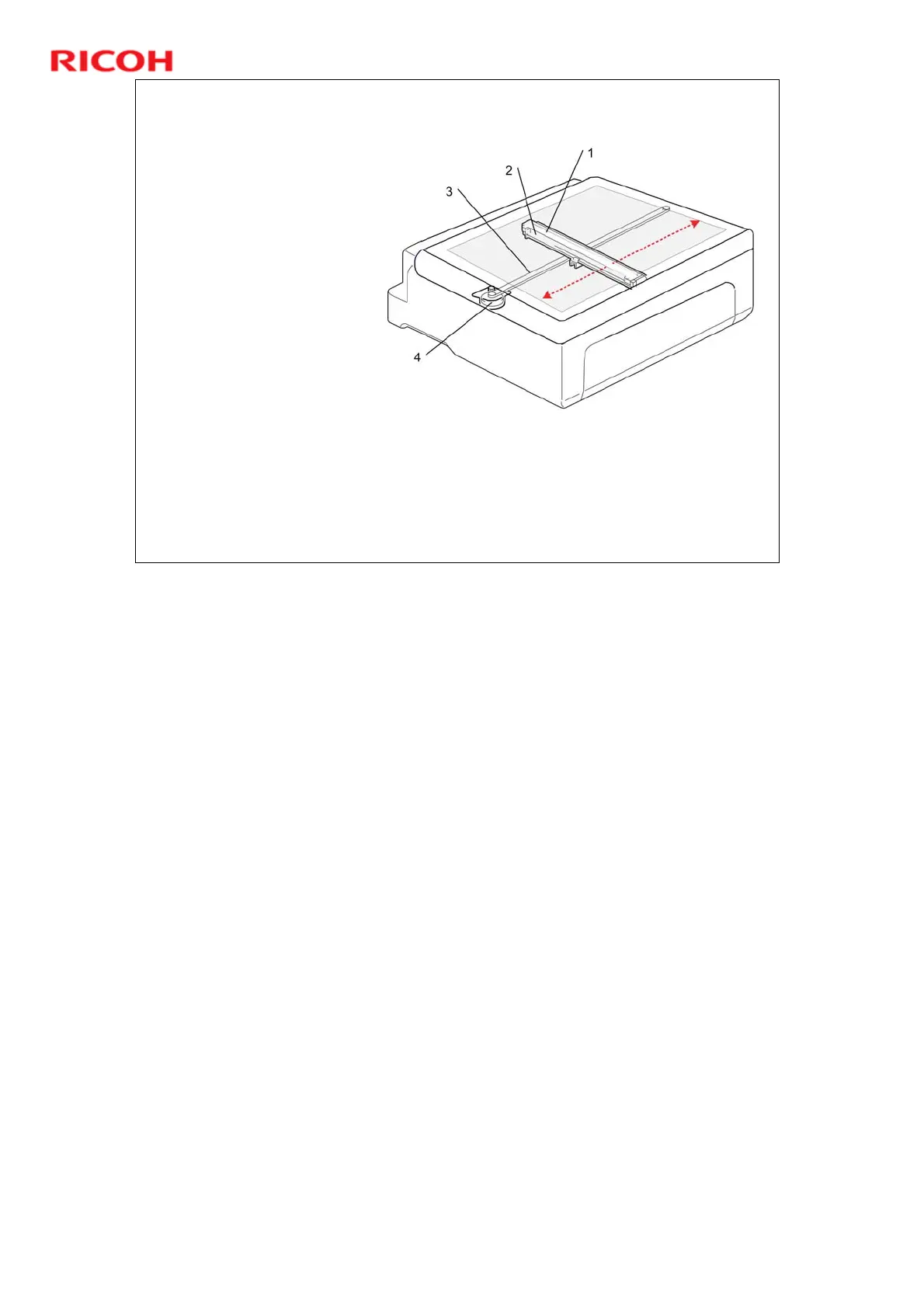

1. CIS
2. Scanner (CIS cradle)
3. Timing belt
4. Scanner motor
No additional notes.
