M047 Series Training - Kriss-P2 /Model Kr-P2
Slide 124
Image Adjustment - 1/2

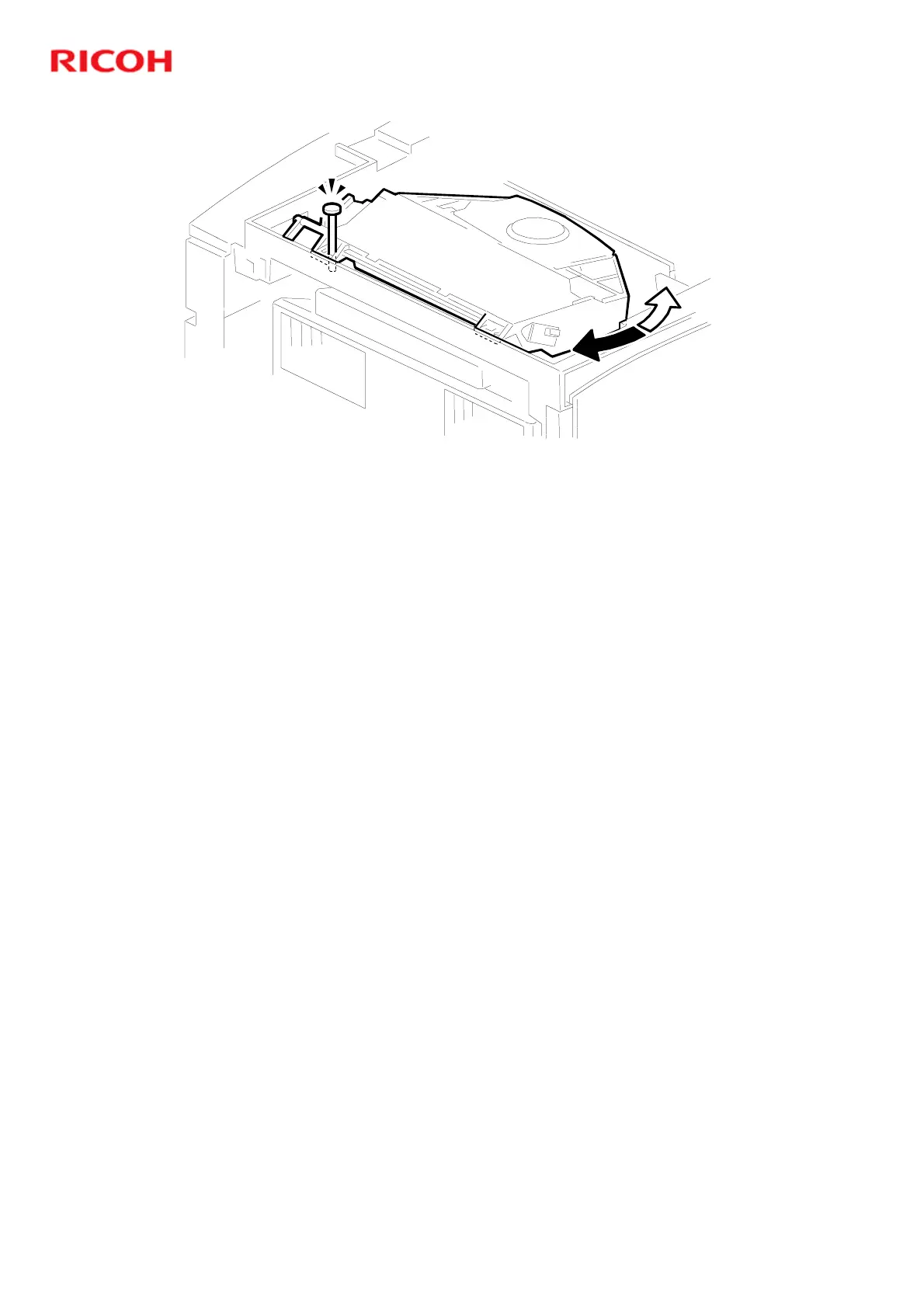

Parallelogram Image Adjustment
! Use scanner positioning pin (P/N: A0069104) for adjustment.
! Do following procedure (next slide) if a parallelogram is printed
while adjusting printing registration using a trimming pattern.
.
