M047 Series Training - Kriss-P2 /Model Kr-P2
Slide 36
Bypass Tray

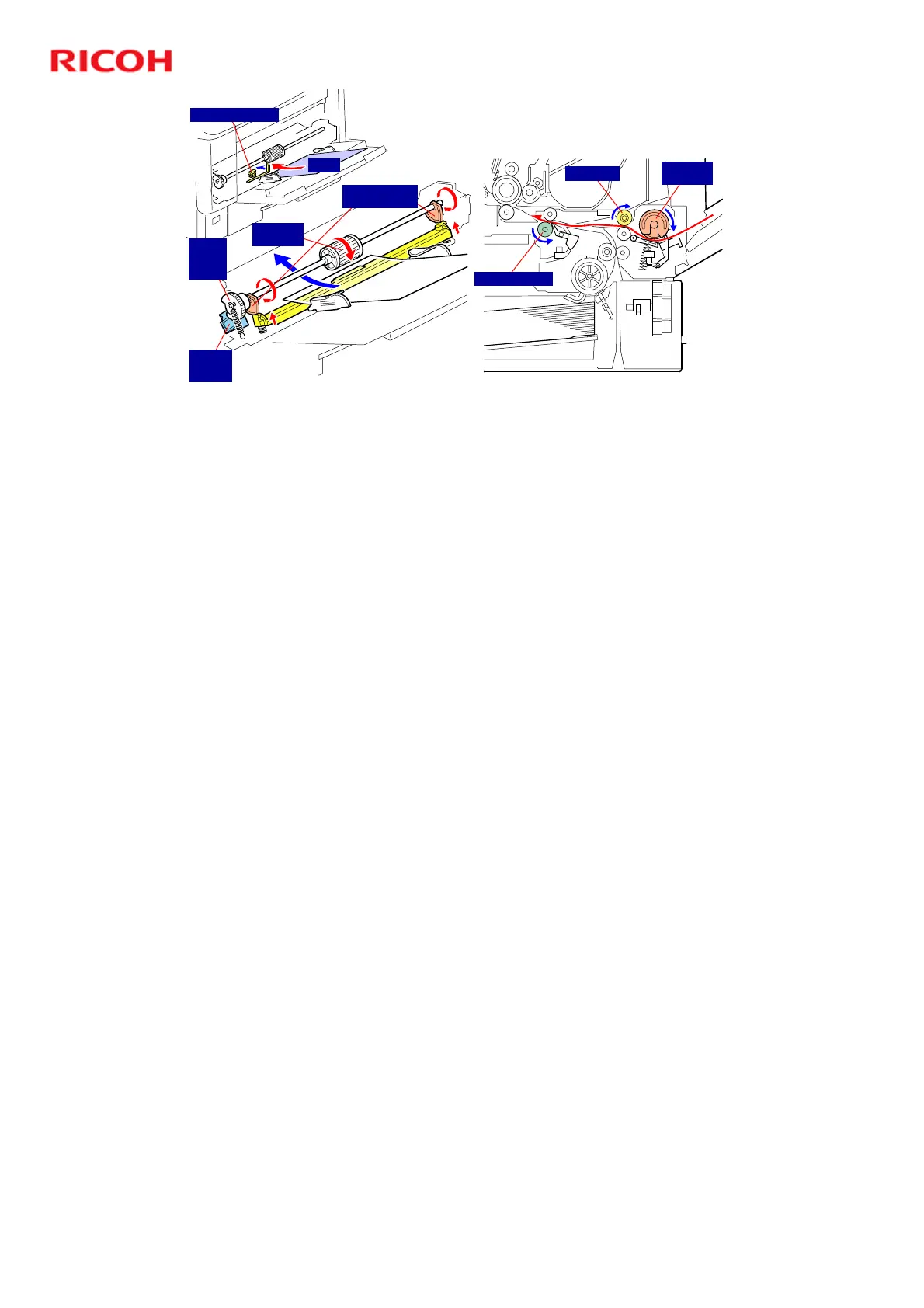

! Bypass paper sensor detects paper on tray.
! CPU activates by-pass feed solenoid, unlocking bypass feed roller gear from its usual
locked condition.
! Bypass feed roller begins feeding paper to registration roller via relay roller.
! Bypass feed roller shaft has two cams, which control up & down motion of bottom plate,
pressing stack of paper against bypass feed roller.
Paper
Bypass Paper Sensor
Bypass
Feed
Solenoid
Bypass
Feed
Roller
Gear
Bypass Feed
Roller Shaft Cams
Bypass
Feed Roller
Registration Roller
Relay Roller
Bypass
Feed Roller
.
To Next Page
