M047 Series Training - Kriss-P2 /Model Kr-P2
Slide 74
Replacing Transfer Roller

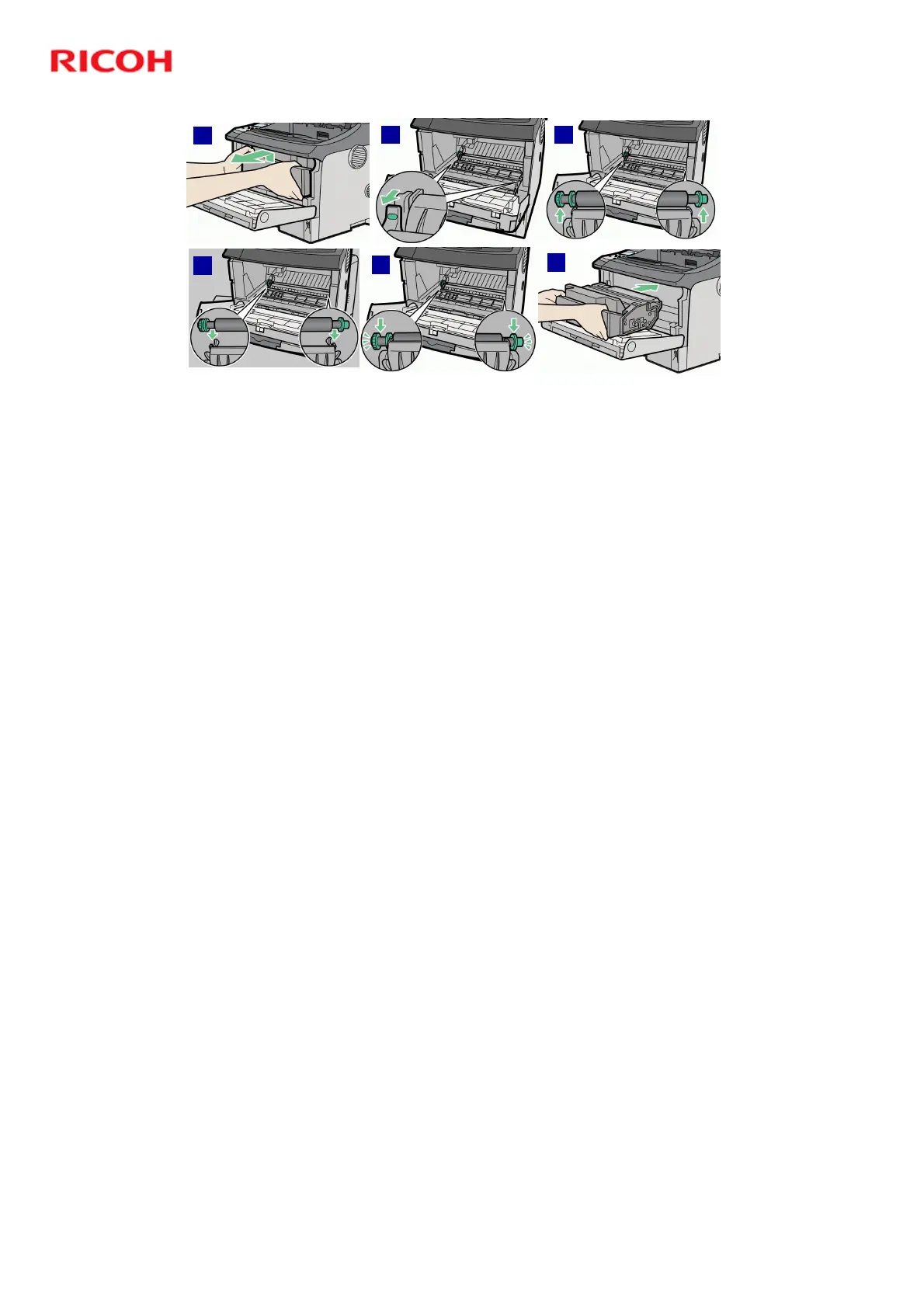

! Remove Print Cartridge. [A]
! Hold green parts of roller [B] and
remove roller from printer. [C]
! Insert new Transfer Roller with gear
positioned to the left. [D]
A
B
C
D
E
F
! Push lock levers down on both
ends, until they click into place. [E]
! Install new Print Cartridge [F]
" (Push in until it stops)
To avoid getting toner on your hands (from the transfer roller), wear the gloves
included in the Maintenance Kit..
