Ricoh Caplio R1V User Manual

86

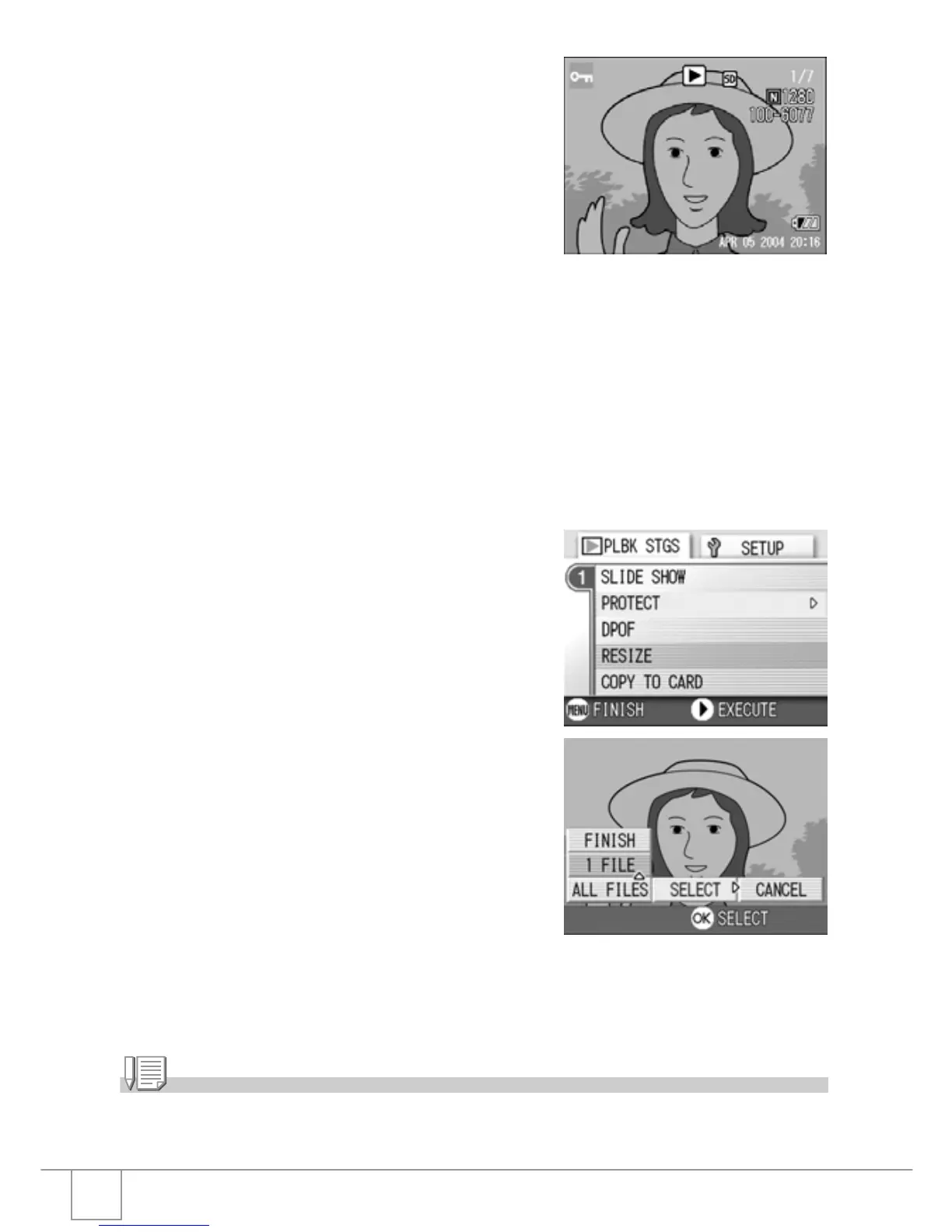

Protection is applied and the Protect
symbol appears in the upper-left corner of
the screen.
Protecting All Files
To protect all your files, follow the steps below.
1. Press the Playback button.
2. Press the M
MM
M button.
The Playback menu appears.
3. Press the "
""
" button to select
[PROTECT] and press the O
OO
O or
$
$$
$ button.
4. Press the !"
!"!"
!" button to select
[ALL FILES].
5. Make sure that [SELECT] is
selected, and then press the O
OO
O
button.
Protection is applied and the Protect
symbol appears in the upper-left corner of
the screen.
To remove protection from all your files,
select [CANCEL] in step 5.
Note
You can remove protection from all or multiple files at once.

Ricoh Caplio R1V Specifications

General

Megapixel	5 MP
Camera type	Compact camera
Sensor type	CCD
Image sensor size	1/2.5 \
Maximum image resolution	2560 x 1920 pixels
Still image resolution(s)	640 x 480, 1280 x 960, 2048 x 1536, 2560 x 1920
Optical zoom	- x
Focal length range	4.6 - 22.2 mm
Lens structure (elements/groups)	9/7
Interface	USB 1.1, AV out
Digital SLR	No
Built-in flash	Yes
Camera shutter speed	1 - 1/2000 s
Focal length (35mm film equivalent)	28 - 135 mm
Normal focusing range	0.3 - ∞ m
Auto focusing (AF) modes	centre weighted auto focus, spot auto focus
Macro focusing range (tele)	0.13 - ∞ m
ISO sensitivity	Auto
Flash modes	Flash off, Red-eye reduction, Slow synchronization
Flash range (tele)	0.13 - 2.1 m
Flash range (wide)	0.2 - 2.7 m
Motion JPEG frame rate	30 fps
Video formats supported	AVI
Maximum video resolution	320 x 240 pixels
Display diagonal	1.8 \
Display resolution (numeric)	110000 pixels
Product color	Gold
Battery type	DB-50
Battery life (CIPA standard)	490 shots
Compatible memory cards	mmc, sd
Scene modes	Documents, Night, Portrait, Sports, Landscape (scenery)
White balance	auto, daylight, Fluorescent, Tungsten

Weight and Dimensions

Depth	25 mm
Width	100.2 mm
Height	55 mm
Weight	150 g
