Ricoh Caplio R1V User Manual

128

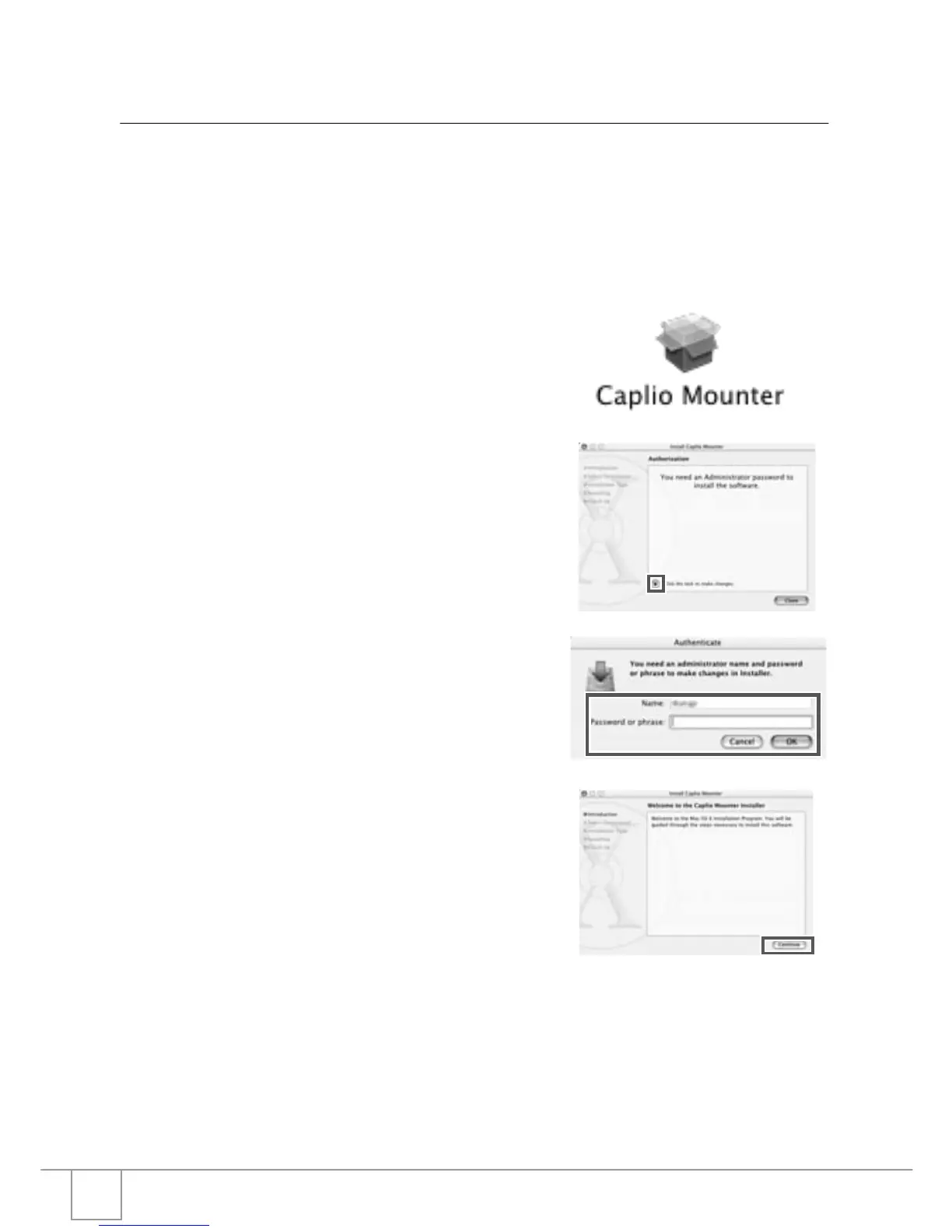

Installing the Software on Your Computer
(Mac OS X 10.1.2 to 10.3)
1.
Turn on your Macintosh and insert the Caplio CD-ROM in
the CD-ROM drive.
2. Open the Mac OS X folder.
The [Caplio Mounter.pkg] icon appears.
3. Double-click [Caplio Mounter.pkg].
The Installer starts. A screen appears
prompting you to enter the
administrator's password.
4. Click the key icon.
An authentication window appears.
5. Enter the administrator's name
and password, and then click [OK].
6. Click [Continue].
The [Select a Destination] screen
appears.

Ricoh Caplio R1V Specifications

General

Megapixel	5 MP
Camera type	Compact camera
Sensor type	CCD
Image sensor size	1/2.5 \
Maximum image resolution	2560 x 1920 pixels
Still image resolution(s)	640 x 480, 1280 x 960, 2048 x 1536, 2560 x 1920
Optical zoom	- x
Focal length range	4.6 - 22.2 mm
Lens structure (elements/groups)	9/7
Interface	USB 1.1, AV out
Digital SLR	No
Built-in flash	Yes
Camera shutter speed	1 - 1/2000 s
Focal length (35mm film equivalent)	28 - 135 mm
Normal focusing range	0.3 - ∞ m
Auto focusing (AF) modes	centre weighted auto focus, spot auto focus
Macro focusing range (tele)	0.13 - ∞ m
ISO sensitivity	Auto
Flash modes	Flash off, Red-eye reduction, Slow synchronization
Flash range (tele)	0.13 - 2.1 m
Flash range (wide)	0.2 - 2.7 m
Motion JPEG frame rate	30 fps
Video formats supported	AVI
Maximum video resolution	320 x 240 pixels
Display diagonal	1.8 \
Display resolution (numeric)	110000 pixels
Product color	Gold
Battery type	DB-50
Battery life (CIPA standard)	490 shots
Compatible memory cards	mmc, sd
Scene modes	Documents, Night, Portrait, Sports, Landscape (scenery)
White balance	auto, daylight, Fluorescent, Tungsten

Weight and Dimensions

Depth	25 mm
Width	100.2 mm
Height	55 mm
Weight	150 g
