6. PAPER FEED

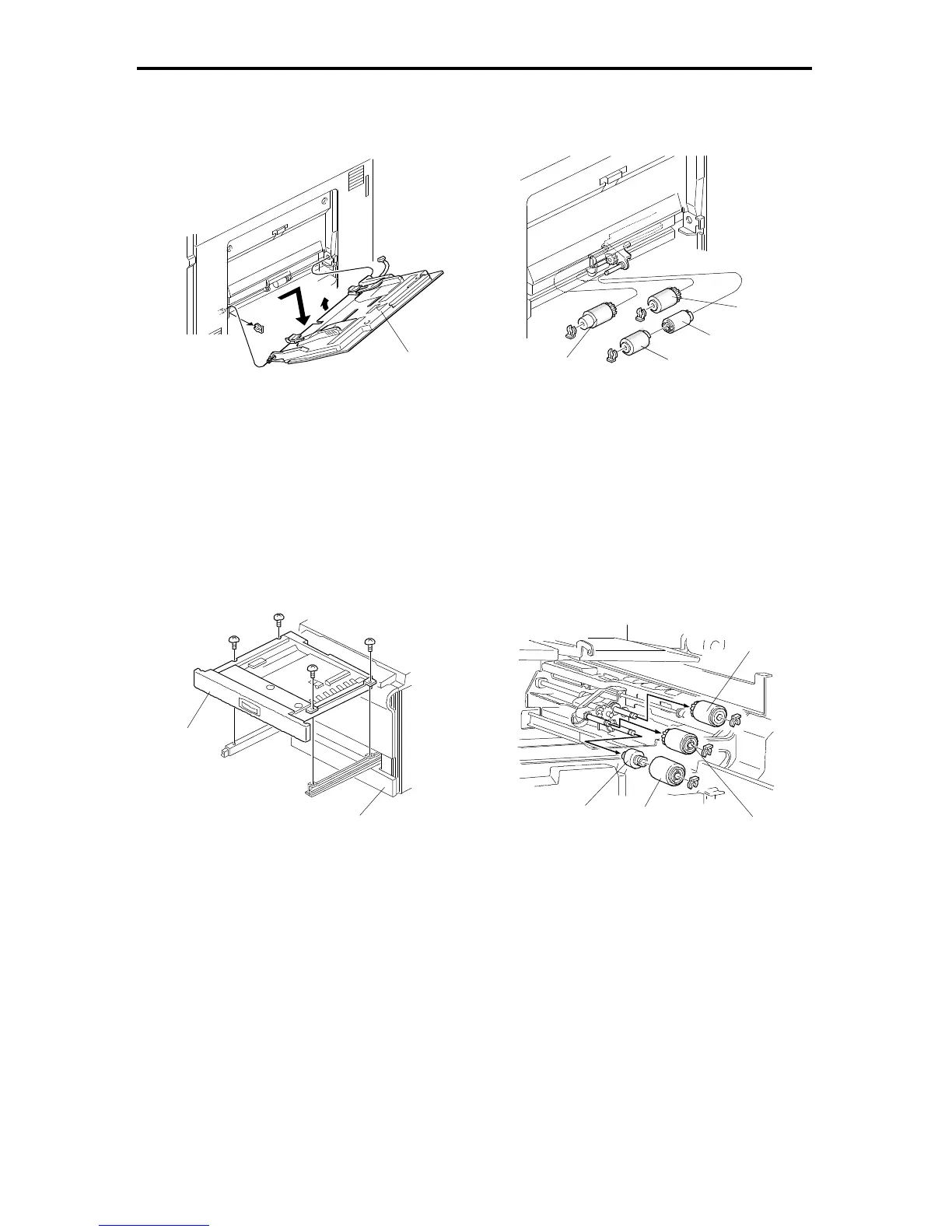

6.1 BY-PASS PICK-UP, FEED, AND SEPARATION ROLLERS,
AND TORQUE LIMITER REPLACEMENT
1. Remove the by-pass feed table [A] (1 clip, 1 connector).
2. Open the right door.
3. Remove the pick-up roller [B], feed roller [C], torque limiter [D], and the
separation roller [E] (1 clip each).
6.2 PICK-UP, FEED, AND SEPARATION ROLLERS, AND
TORQUE LIMITER REPLACEMENT (A153/A155/A156)
1. Remove the upper paper feed tray [A] or lower paper feed tray [B] (4 screws
for each paper feed tray).
2. Remove the pick-up [C] and feed [D] rollers, torque limiter [E], and the
separation roller [F] (1 clip each).
NOTE: After reinstalling the paper feed tray, perform the side-to-side registration
adjustment (see Side-to-side Registration Adjustment).
[A]
[C]
[E]
[D]
[B]
[F]
[C]
[E]
[D]
[A]
[B]
FSM 5-33 FT5535/4527/4522
