2. COMPONENT LAYOUT

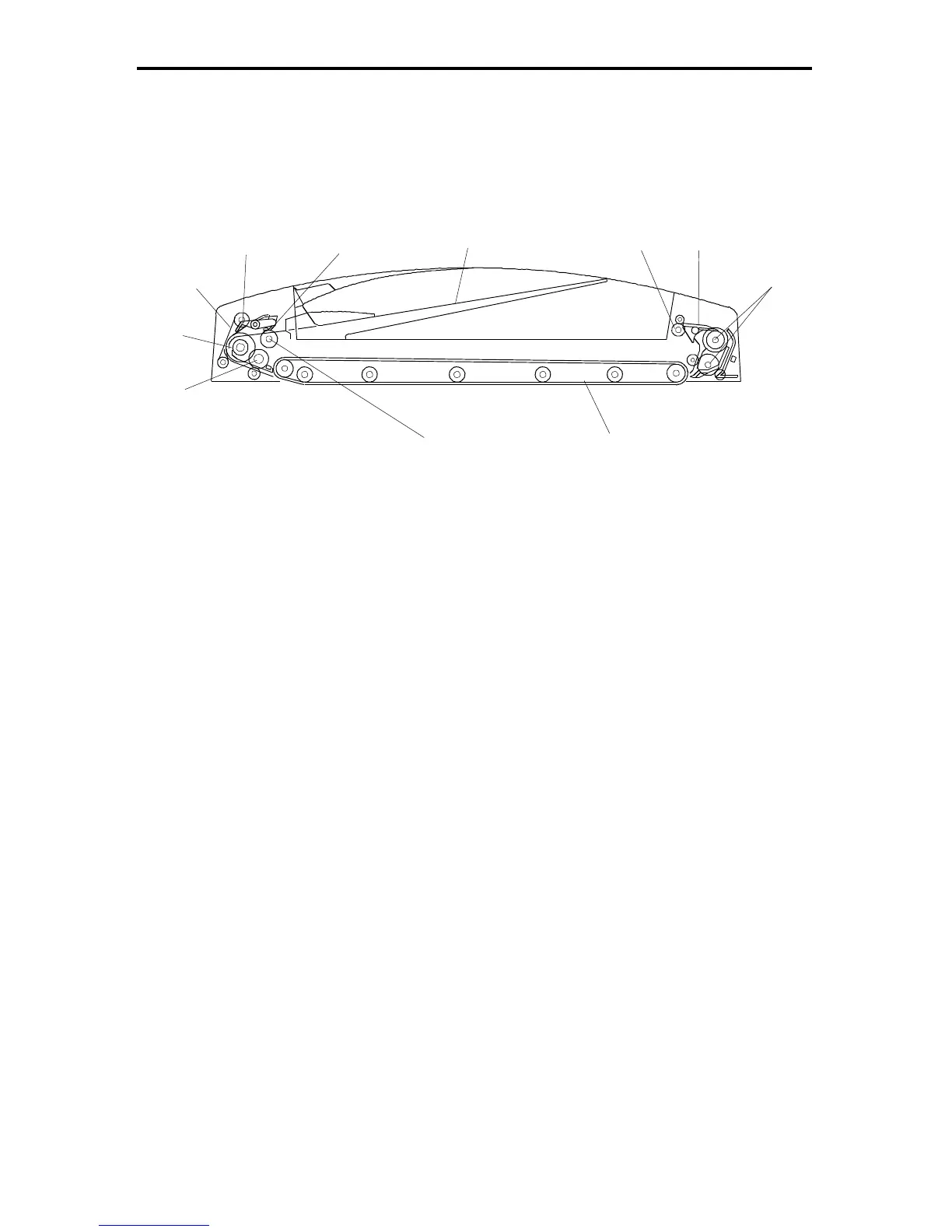

2.1 MECHANICAL COMPONENTS
1. Original Stopper
2. Press Lever
3. Original Table
4. Exit Rollers
5. Inverter Pawls
6. Inverter Rollers
7. Transport Belt
8. Pick-up Rollers
9. Pull-out Roller
10. Feed Roller
11. Friction Belt
1
2
5
4
3
7
6
8
11
10
9
