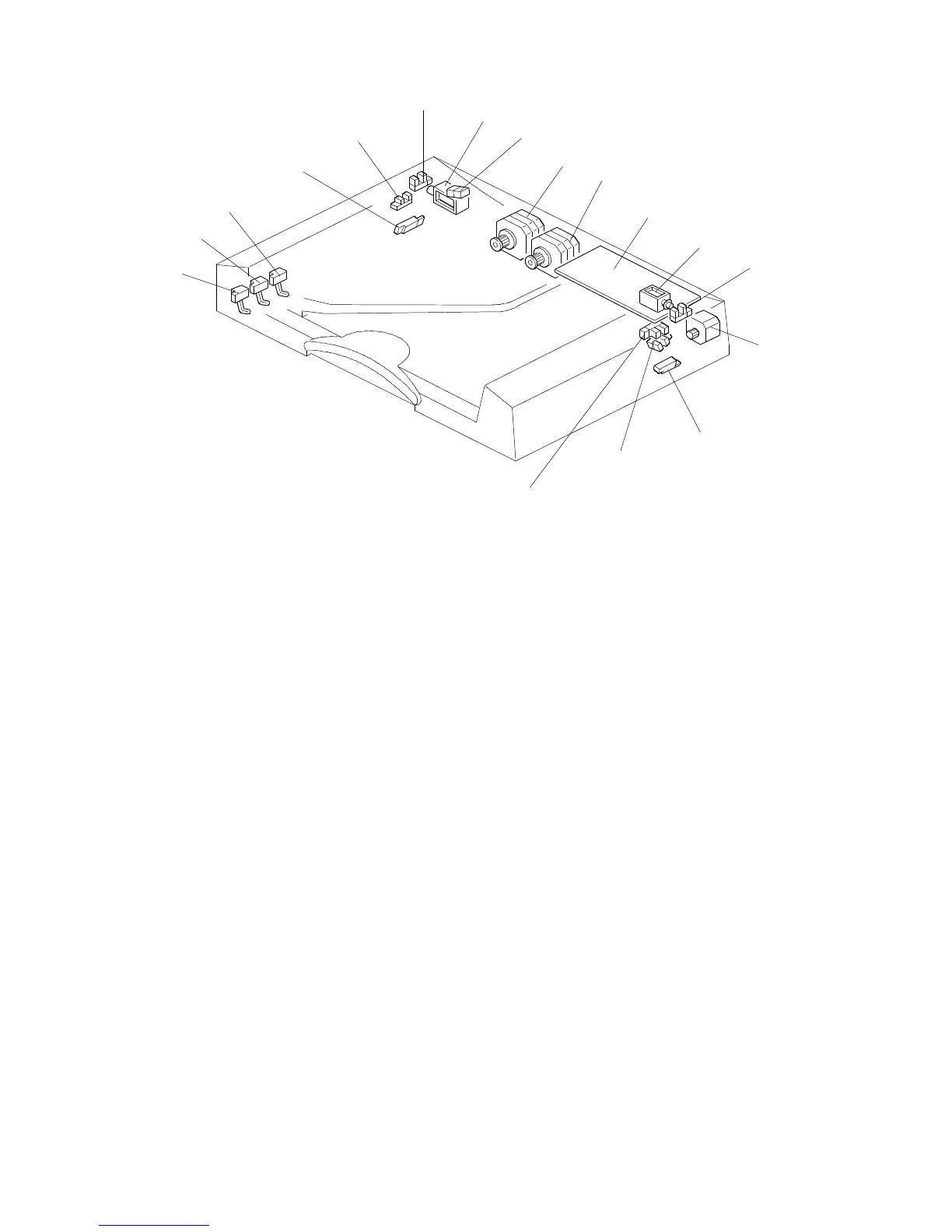

2.2 ELECTRICAL COMPONENTS
1. Original Set Sensor
2. Feed-in Cover Open Sensor
3. Stopper Solenoid
4. Indicator Panel Lamps
5. Feed-in Motor
6. Belt Drive Motor
7. DF Main Board
8. Inverter Solenoid
9. Feed-out Cover Open Sensor
10 Feed-out Motor
11. Feed-out Sensor
12. APS Start Sensor
13. DF Position Sensor
14. Original Width Sensor - 1
15. Original Width Sensor - 2
16. Original Width Sensor - 3
17. Registration Sensor
