5.4 FEED ROLLER, PICK-UP ROLLER, AND REVERSE ROLLER
REPLACEMENT

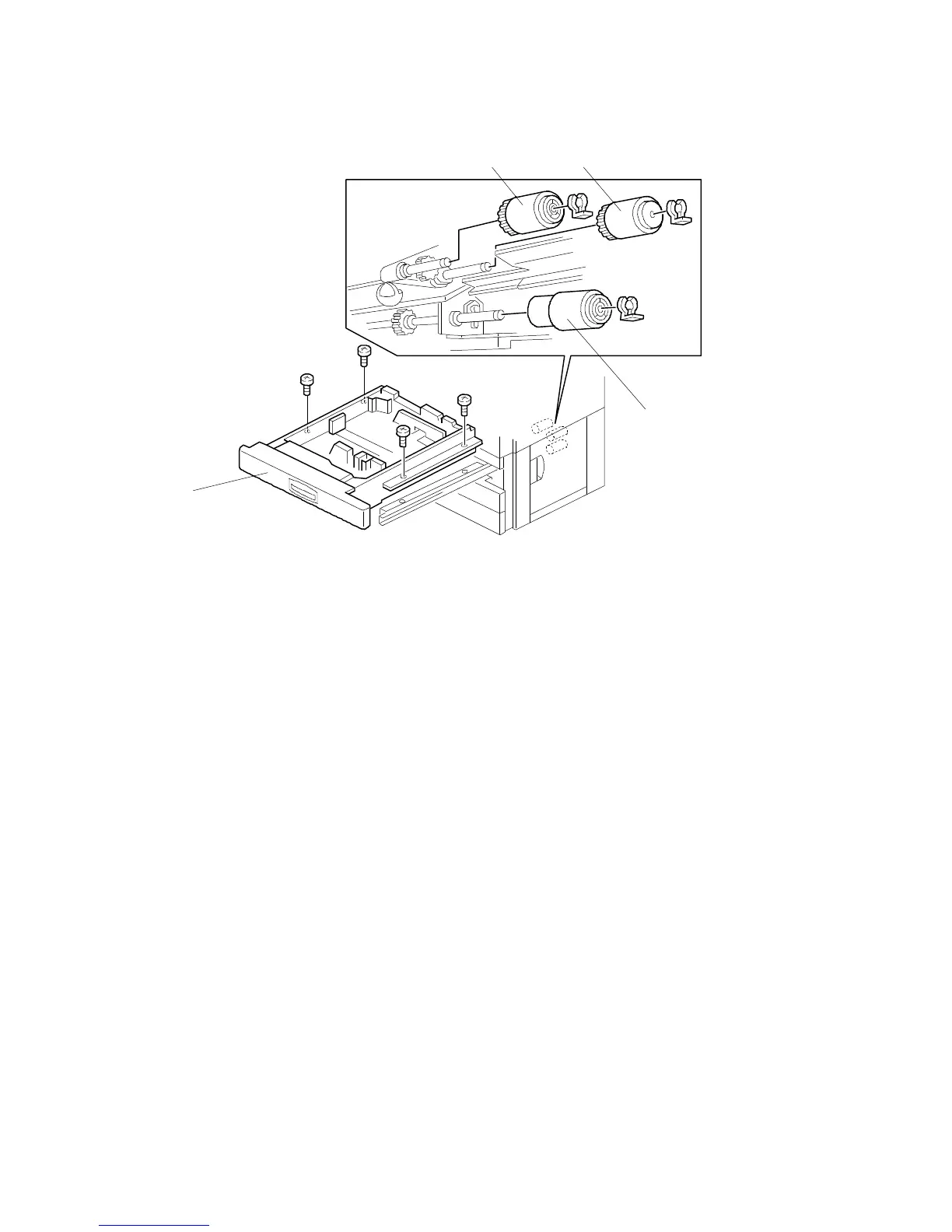

1. Remove the paper feed tray [A] (4 screws).
2. Remove the feed roller [B], pick-up roller [C], and reverse roller [D] (1 clip
each).
NOTE: After reinstalling the paper tray, perform the side-to-side registration
adjustment (see Removal and Adjustment in the manual for the copier).
[C]
[B]
[D]
[A]
FT5535/4527/4522 8-14 FSM
