5.5 RELAY SENSOR REPLACEMENT
1. Remove the rear cover (see Exterior Cover Removal).
2. Remove the rear right cover (see Exterior Cover Removal).

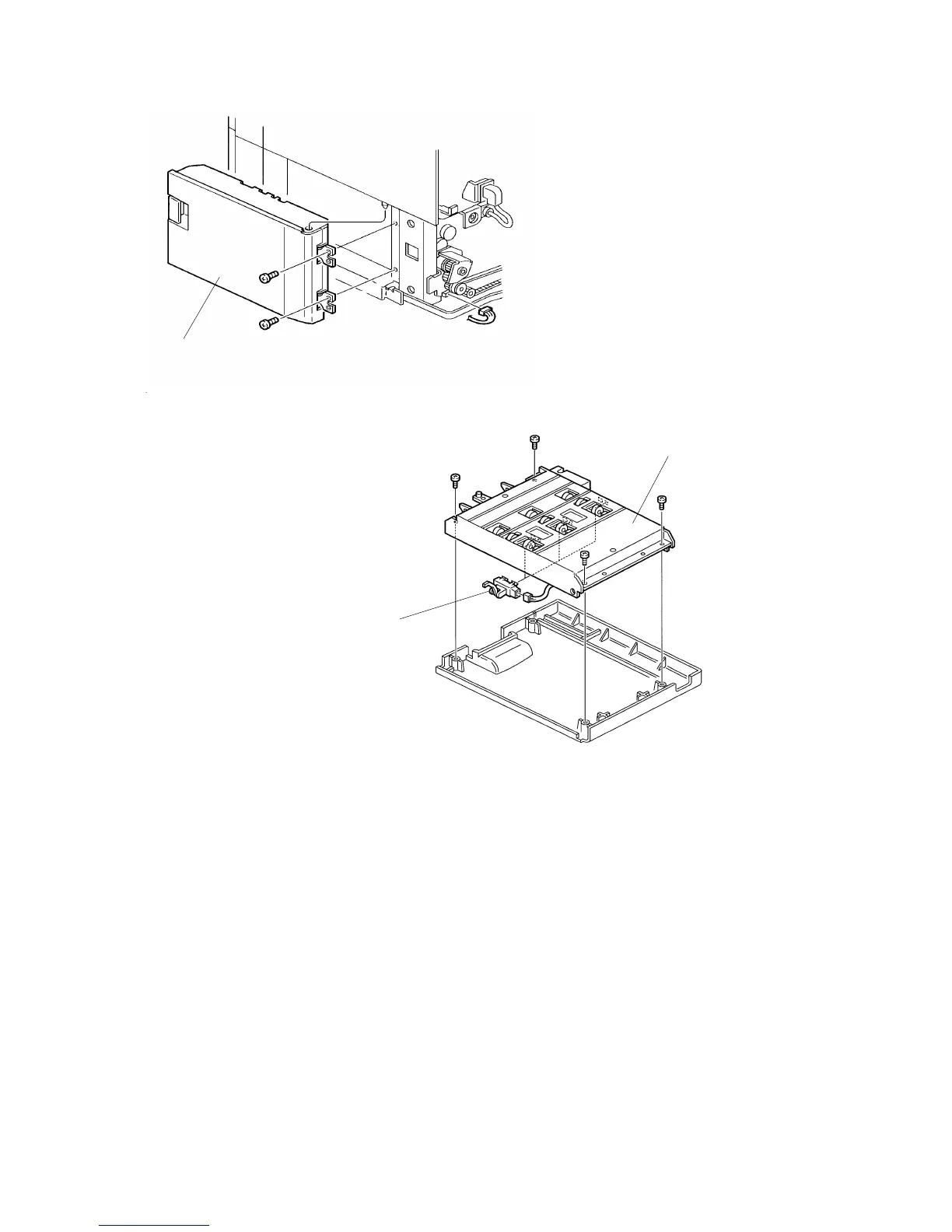

3. Remove the vertical transport unit [A] (2 screws).
4. Remove the vertical transport guide [B] (4 screws).
5. Remove the relay sensors [C] (1 connector each).
[A]
[B]
[C]
