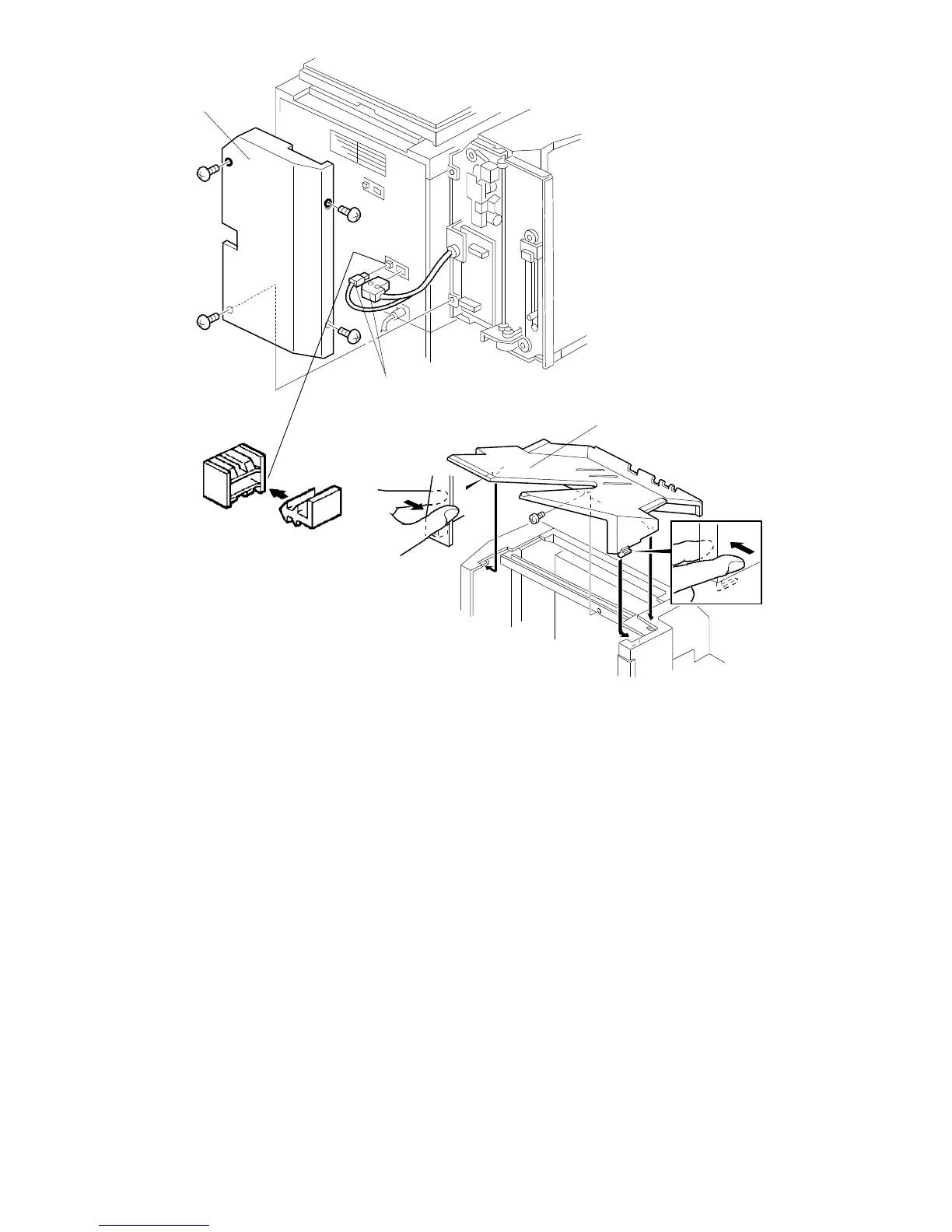

12. Remove the Plug [P] from the rear of the copier.
13. Connect the connectors [A] to the sockets on the rear of the copier.
14. Remount the rear cover [B] (4 screws).
15. Mount the proof tray [C] (1 screw) as shown.
⇒
[C]
[A]
[B]
Rev. 10/11/95
Fiber Connector Plug [P]
⇒
FT5535/4527/4522 10-12 FSM
