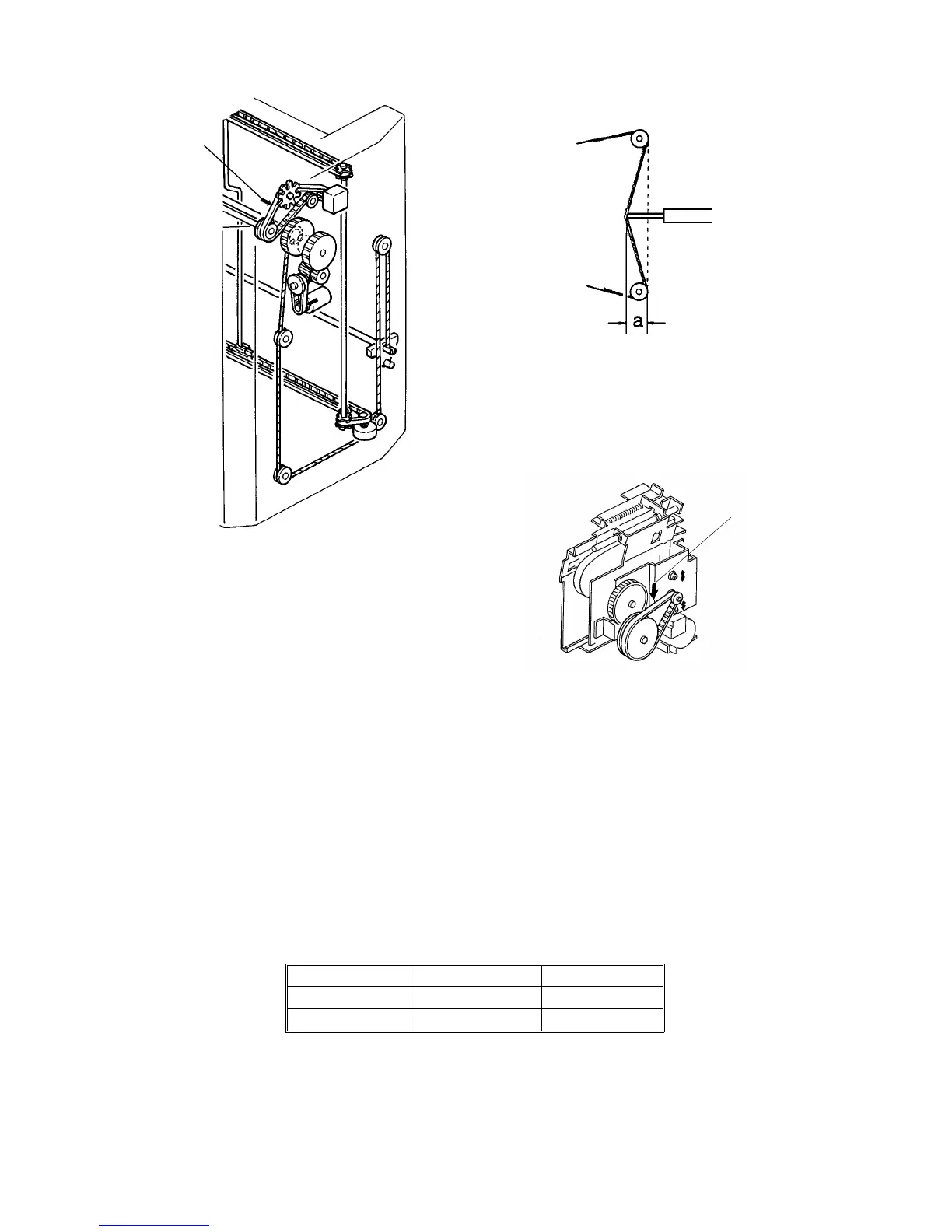

6.7 BELT TENSION ADJUSTMENT
1. Remove the required covers for the following belt tension adjustments as
listed below:
Timing Belt [A]
(Roller Drive Motor)..................................... Proof Tray
Rear Cover
Timing Belt [B]
(Grip Motor) ................................................ Proof Tray
Front Cover
2. Adjust the timing belt tension as follows:
Timing Belt Bending Tension
A 4 mm (0.16")
150±50 g
B 4 mm (0.16")
200±50 g
[B]
[A]
Bending = a
FT5535/4527/4522 10-28 FSM
