2.3 PAPER SIZE SELECTION
2.3.1 Paper Feed Station Definition
NOTE: *A549 paper tray unit only
Copier
Paper Tray Unit
1st tray
2nd tray
3rd tray
4th tray
By-pass Feed
A153 and A157 copiers
5th tray*
By-pass Feed
Copier
Paper Tray Unit
2nd tray
3rd tray
4th tray
5th tray*
LCT
1st tray
A155 and A159 copiers
Copier
Paper Tray Unit
LCT
By-pass Feed
1st tray
2nd tray
3rd tray
4th tray*
A156 and A160 copiers

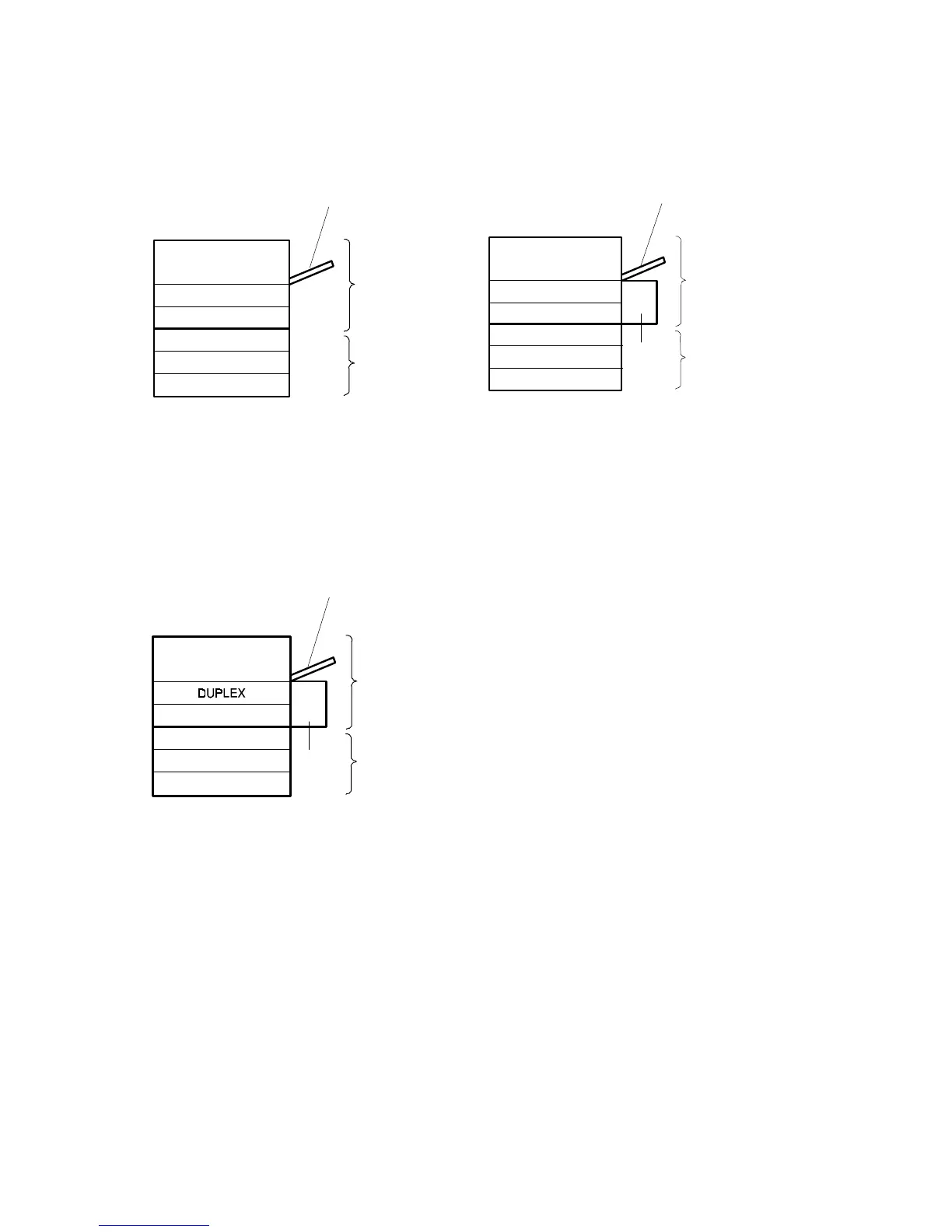

The diagrams on this page
show how the paper feed
stations are numbered in the
various models.
FSM 3-13 FT5535/4527/4522
