CIP Training L5160/L5130
Basic Operation

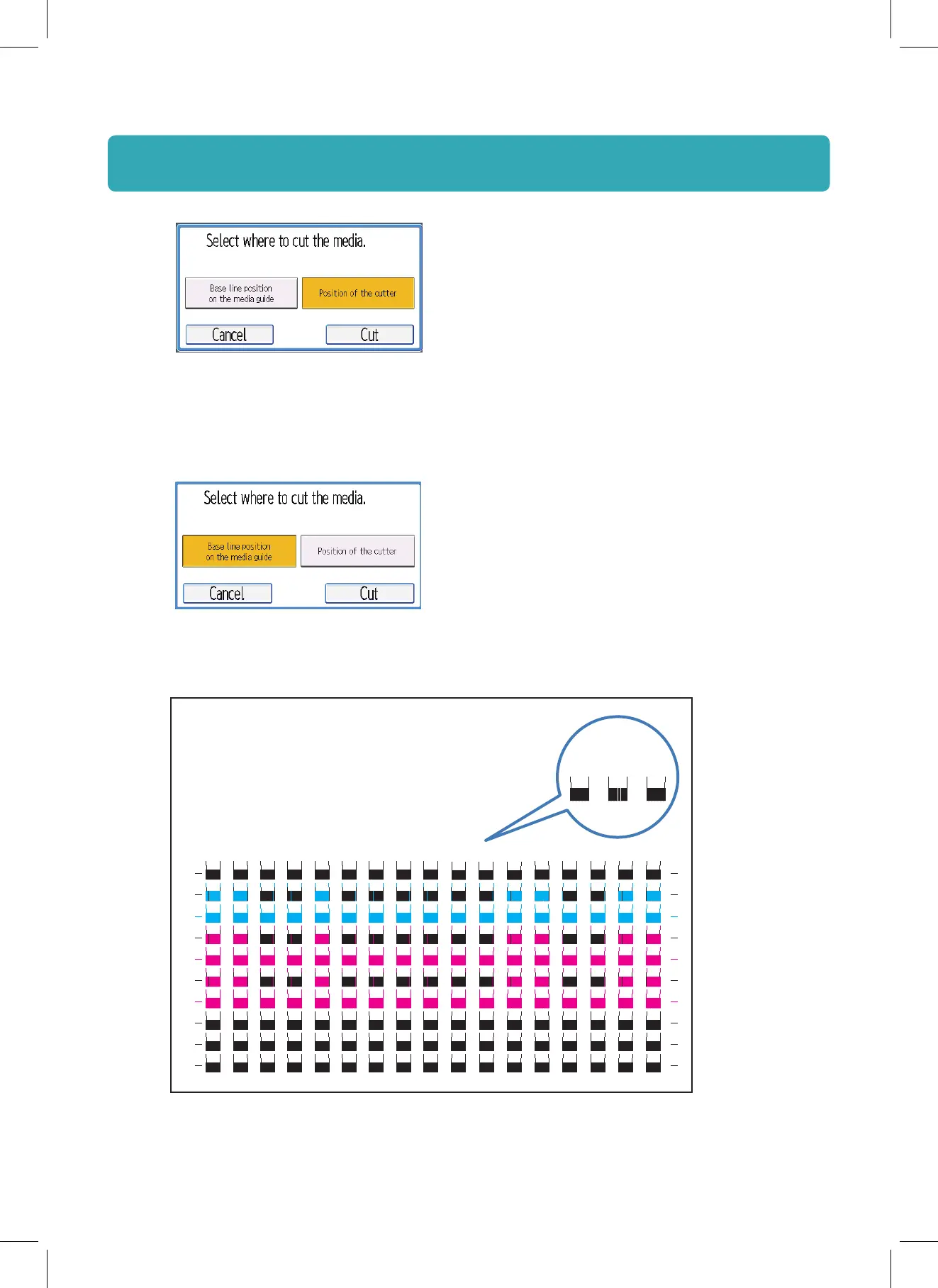

9. To cut the trailing edge of the test pattern for adjusting the drop position, feed the media to
[Base line position on the media guide] by pressing [Feed] or [Rewind].
10. Press [Cut].
The selection screen for the cutting position is displayed.
11. Select [Base line position on the media guide], and press [Cut].
The media is cut at the reference line on the media guide.
12. Check the optimal adjustment value based on the printing result of the test pattern of the
drop position adjustment.
A
B
C
D
E
F
G
-8 -7 -6 -5 -4 -3 -2 -1 0 +1 +2 +3 +4 +5 +6 +7 +8
H
I
J
+1 +2 +3
DNK010
