x Clearing Misfeeds
81
5
When “x
xx
x” and “D” light
Master misfeeds occur in the master feed section.
A
AA
A

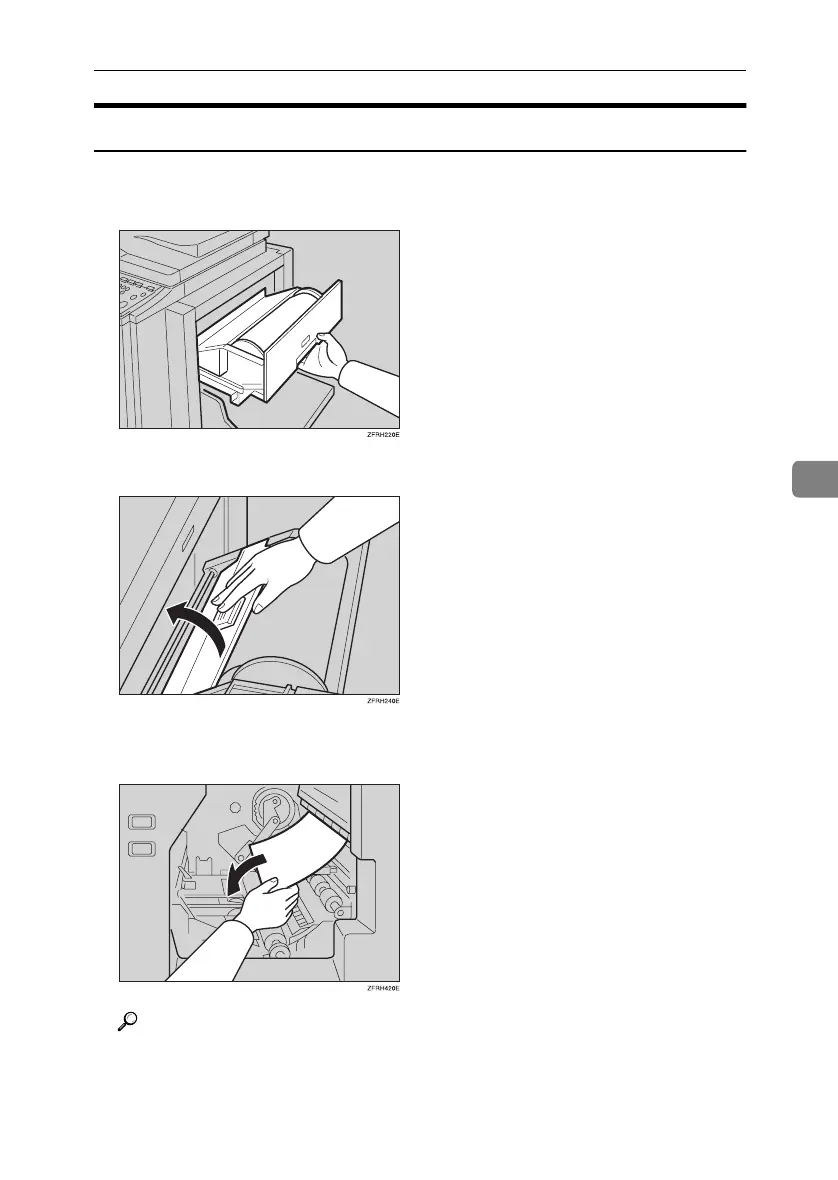

Pull out the master tray.
B
BB
B
Open the plotter cover, and then remove the misfed master.
C
CC
C
If you could not remove the misfed master in steps A
AA
A and B
BB
B, pull out the
drum and remove the misfed master from the inside.
Reference
For details about how to remove the drum unit, see p.50 “Changing the
Color Drum Unit”.
