Paper Feed Unit

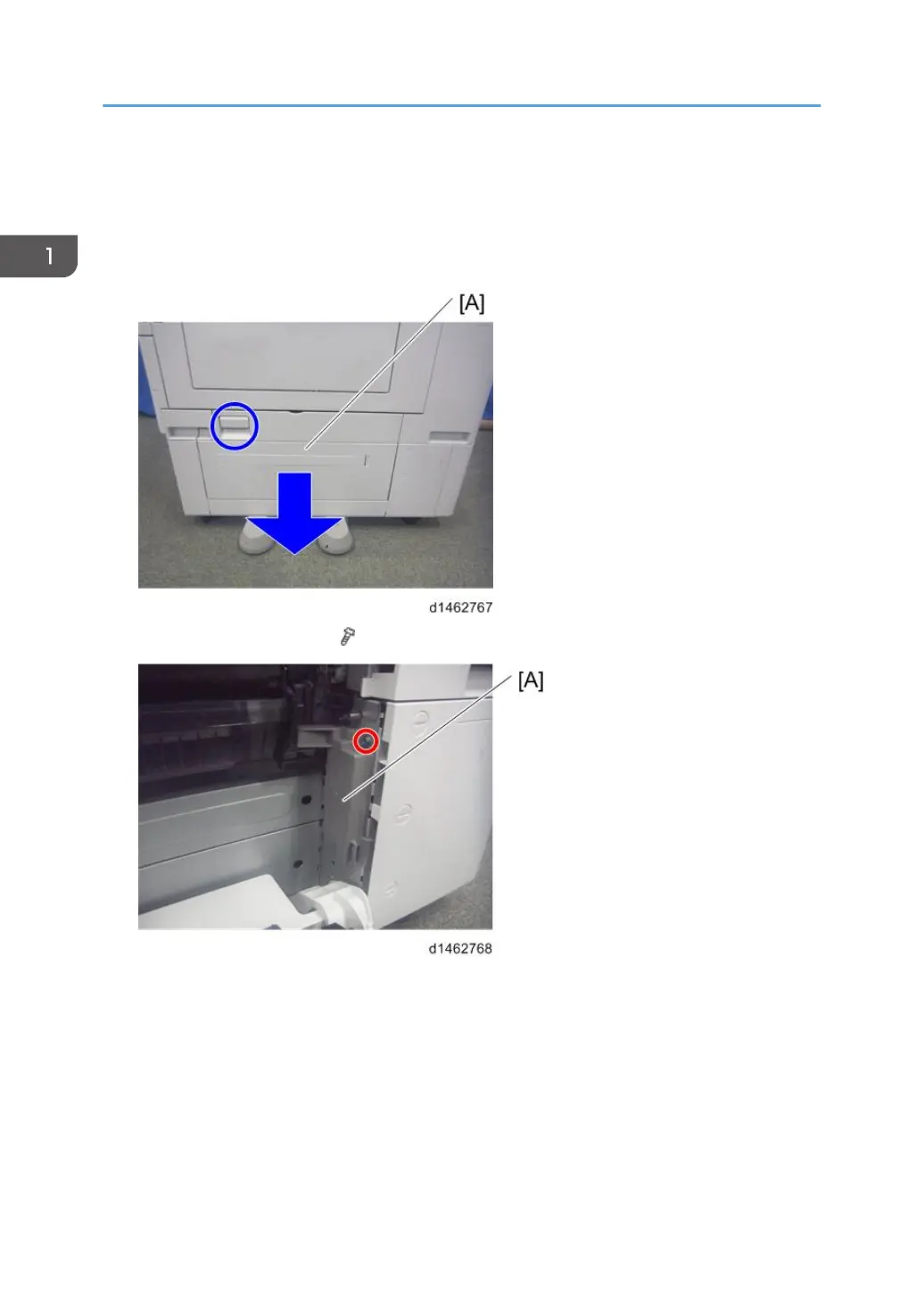

1. Pull out the paper tray.
2. Open the Transport cover [A].
3. Interlock switch cover [A] ( ×1)
1. Replacement and Adjustment
12
