Ricoh MP 3054 Series User Manual

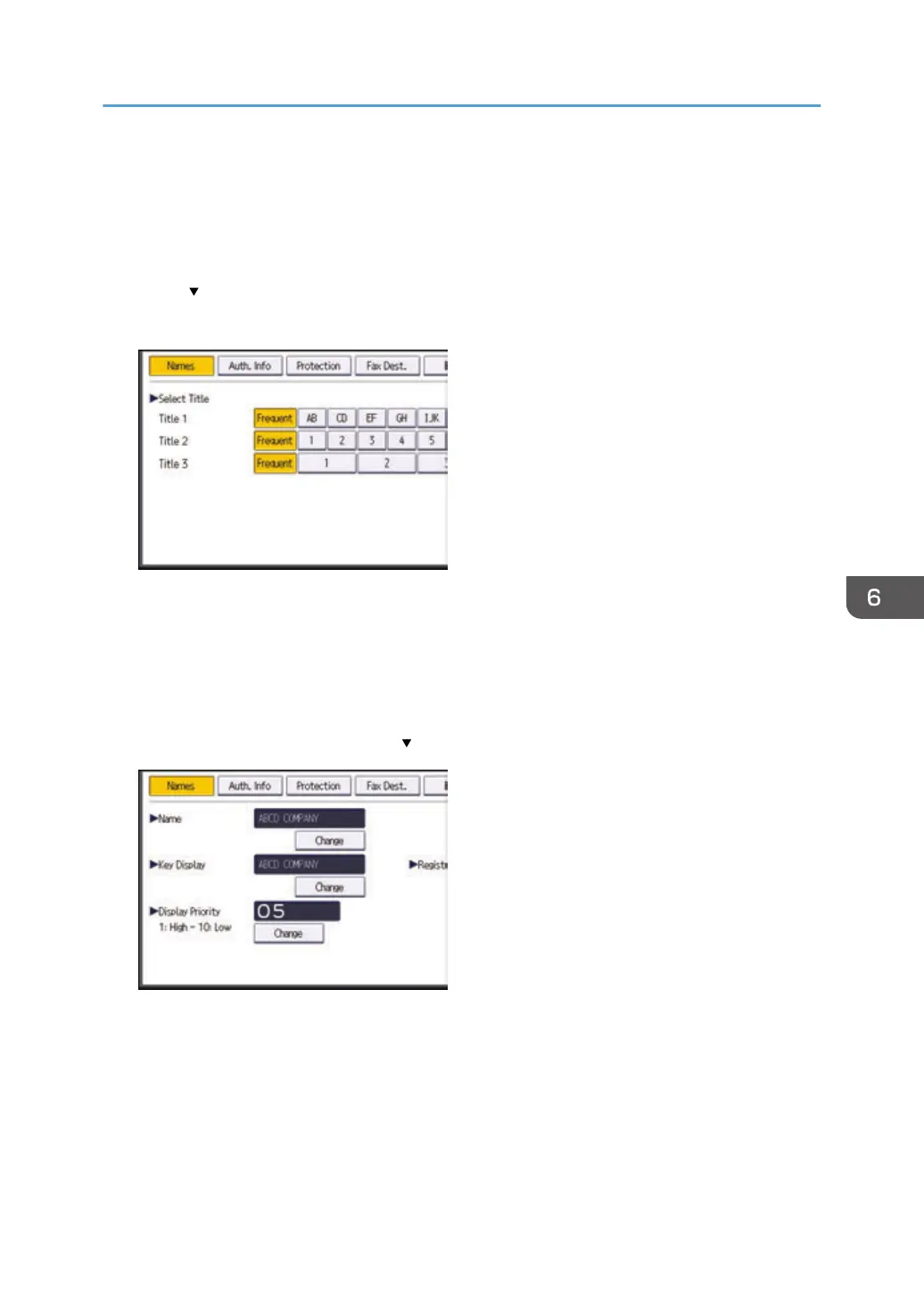

3. Press [New Program].
4. Press [Change] under "Name".
The name entry display appears.
5. Enter the name, and then press [OK].
6. Press [ Next].
7. Press the key for the classification you want to use under "Select Title".
The keys you can select are as follows:
• [Frequent]: Added to the page that is displayed first.
• [AB], [CD], [EF], [GH], [IJK], [LMN], [OPQ], [RST], [UVW], [XYZ], [1] to [10]: Added to the
list of items in the selected title.
You can select [Frequent] and one more key for each title.
8. Press [Auth. Info], and then press [ Next].
9. Press [Specify Other Auth. Info] on the right side of "Folder Authentication".
When [Do not Specify] is selected, the SMB User Name and SMB Password that you have
specified in "Default User Name / Password (Send)" of File Transfer settings are applied.
10. Press [Change] under "Login User Name".
11. Enter the login user name of the destination computer, and then press [OK].
12. Press [Change] under "Login Password".
Basic Procedure When Using Scan to Folder
137

Ricoh MP 3054 Series Specifications

General

Print Speed	30 ppm
Copy Resolution	600 x 600 dpi
Duplex Printing	Yes
Monthly Duty Cycle	50, 000 pages
Maximum Paper Size	A3
Warm-up Time	20 seconds
Memory	2 GB RAM
Scan Resolution	600 dpi
Paper Capacity	4, 700 sheets
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Functions	Print, Copy, Scan
Scan Speed	80 ipm (simplex)
Control Panel	Touchscreen
First Print Speed	4.6 seconds
Hard Disk Drive	320 GB
Fax Transmission Speed	33.6 kbps
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 1200 dpi
