Ricoh Pro C7110x - Page 21

Technical Bulletin PAGE: 4/5
Model: Vacuum Feed LCIT
Date: 28-Oct-15
No.: RD777004
5. Print a trim pattern to check if the skew is corrected and check the image position.
Note: Image position may be decentered after the skew adjustment plates are applied.
6. If the image is decentered, adjust the tray position.

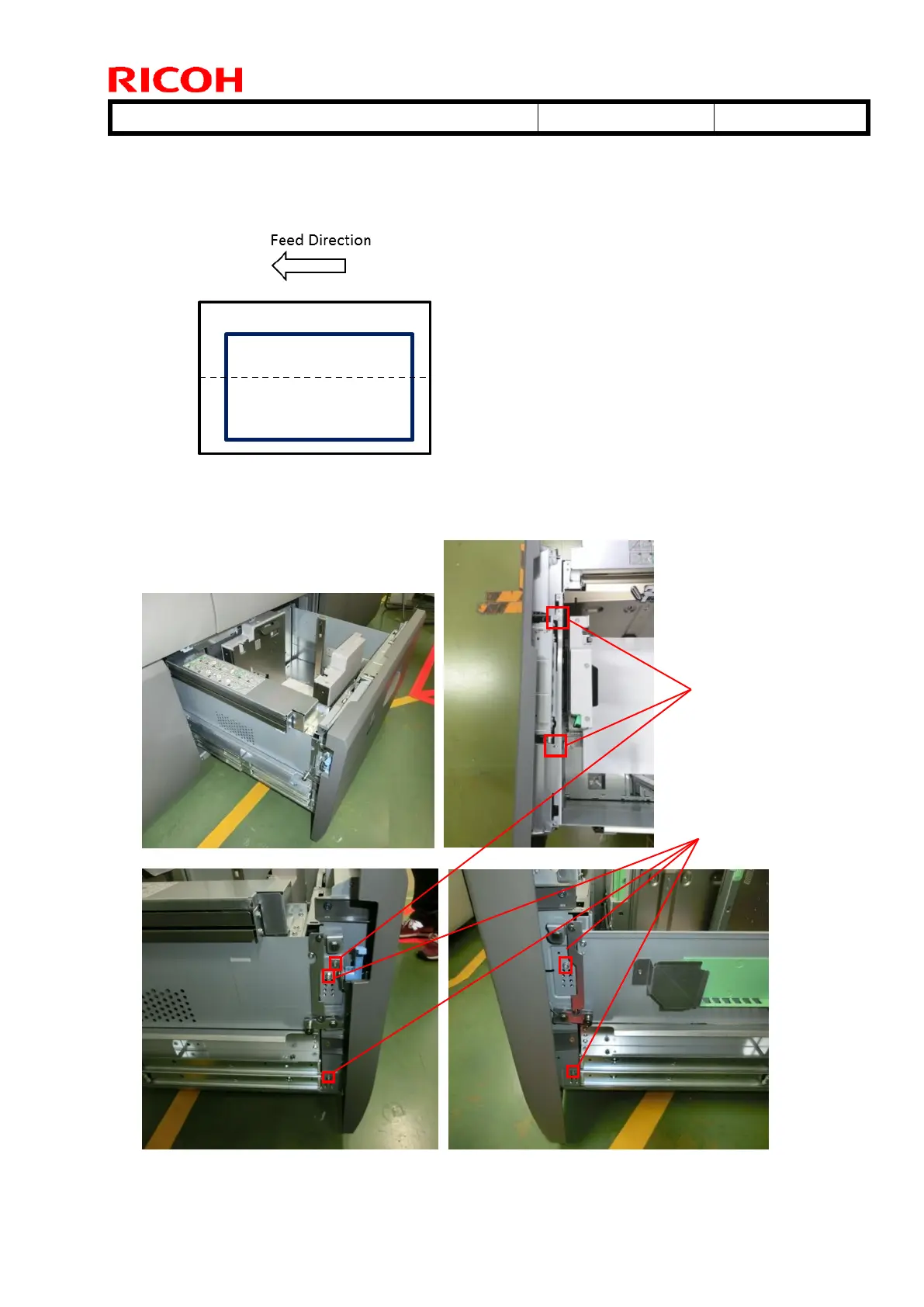

6-1. Loosen some screws and remove some other screws as indicated below.
Loosen
Remove
