Ricoh PRO C7200X

[With Feed] of [Image Position: Adjust Front & Back]
[Across Feed] of [Image Magnification: Side 2]
[With Feed] of [Image Magnification: Side 2]
[Across Feed] of [Image Magnification: Adjust Front & Back]
[With Feed] of [Image Magnification: Adjust Front & Back]
[Opposite Side of Operator] of [Trapezoidal Distortion: Side 2]
[Operator Side] of [Trapezoidal Distortion: Side 2]
[Opposite Side of Operator] of [Trapezoidal Distortion: Adjust Front & Back]
[Operator Side] of [Trapezoidal Distortion: Adjust Front & Back]
Printing the Format
Using the computer and the machine, print the format matching the size of the paper requiring image
position adjustment.

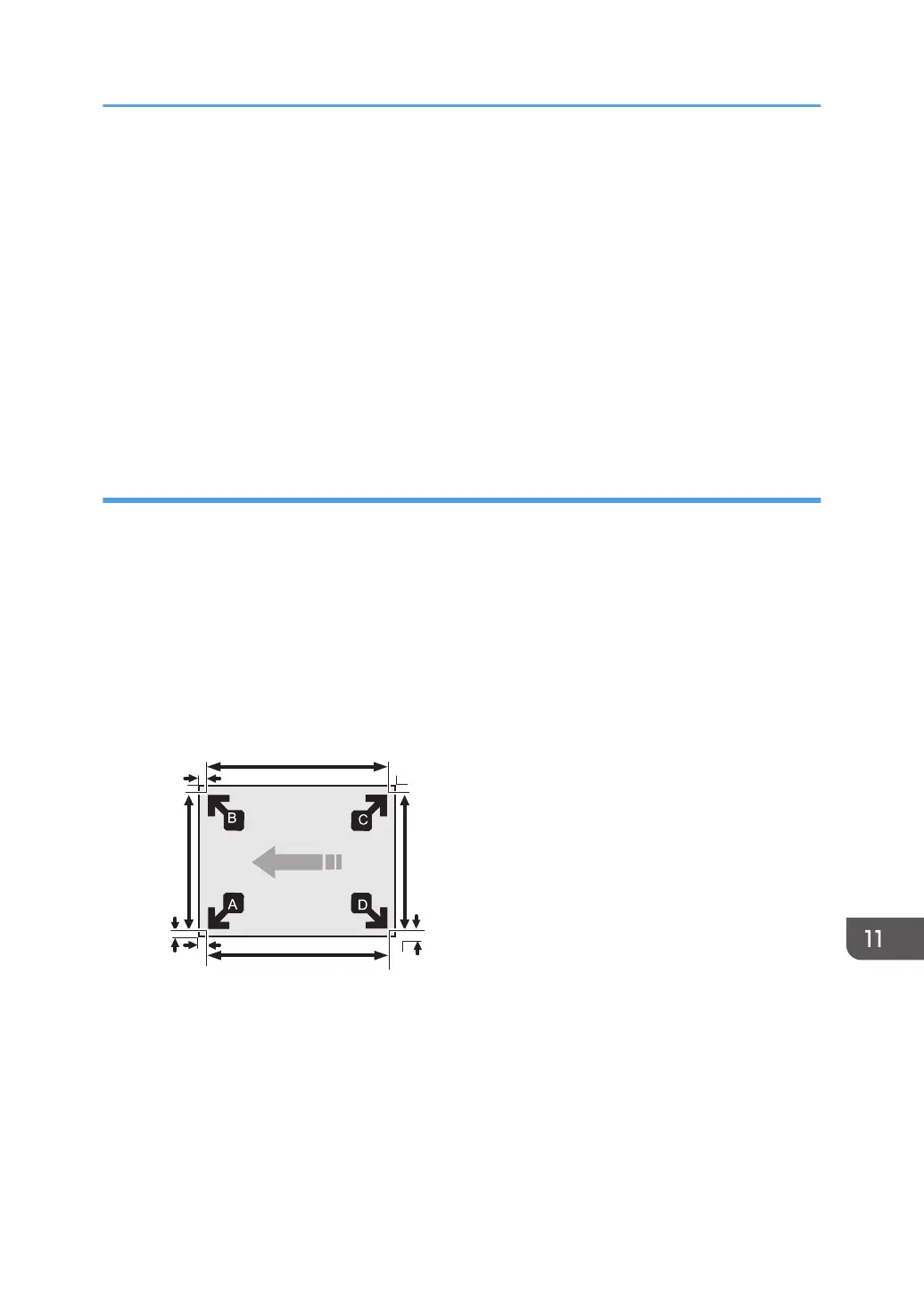

1. Continuously print the format on both sides of 10 sheets.
The format has arrows on 4 corners.
2. Measure the length of specified parts on the 6th sheet among the printed copies of the
format.
Using the ruler and magnifier, measure the length between each corner of the paper and the top of
its adjoining arrow, and the length between the top of arrows with the scale in 0.1 mm.
2
4
1
3
5
6
7
8
DFP493
1. Length between the top of each arrow
2. Length between each corner and the top of its adjoining arrow
3. Length between the top of each arrow
4. Length between each corner and the top of its adjoining arrow
5. Length between each corner and the top of its adjoining arrow
6. Length between the top of each arrow
Adjusting the Image Position of the Either Side of the Paper
