Taurus-C1 Training
153
Slide 153

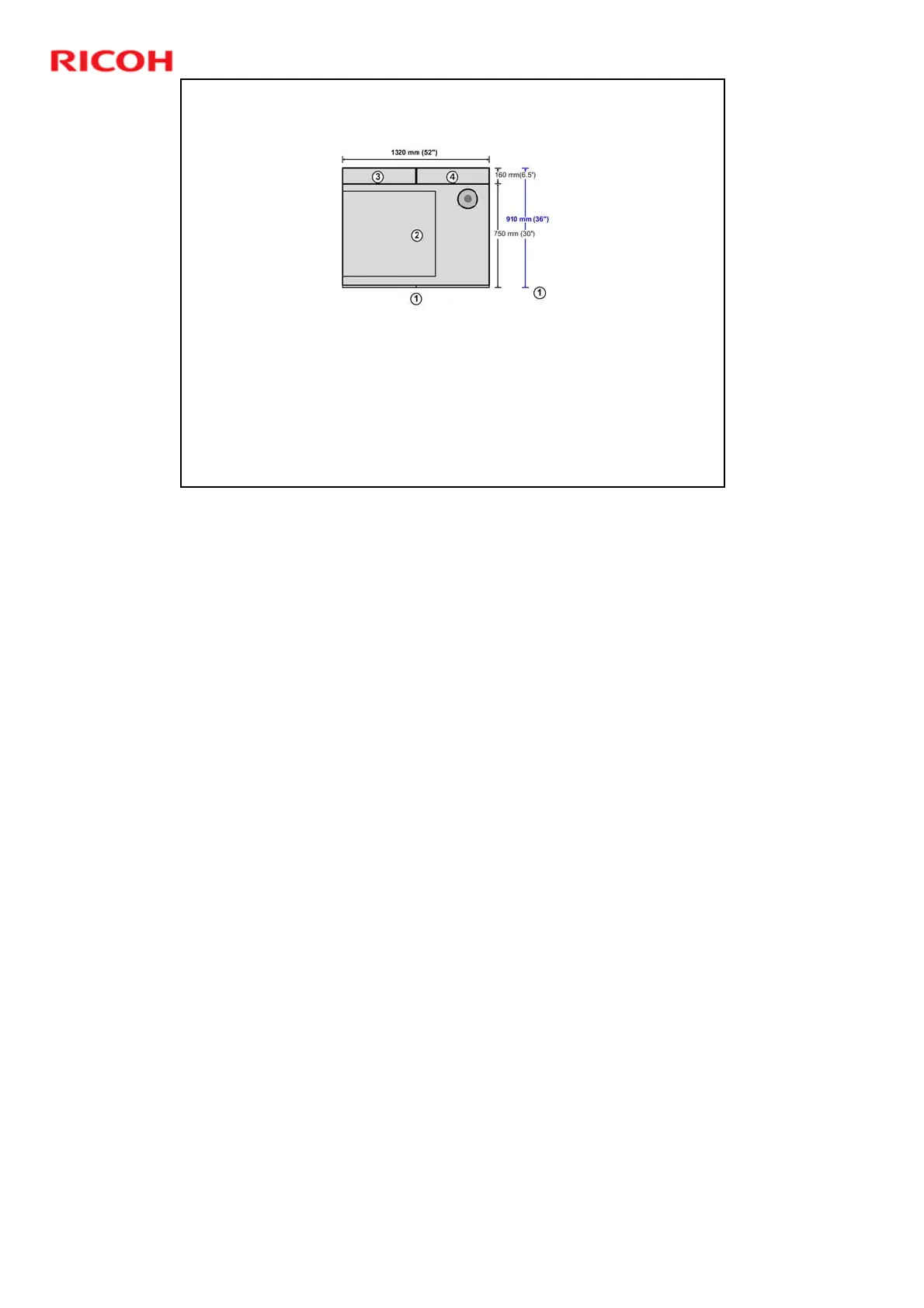

Removing the Cooling Box and
Controller Box
If the machine cannot fit through a door, the cooling box
(1) and controller box (2) can be removed.
With both boxes removed, the machine is 750 mm (30 in.)
wide.
There are detailed procedures for removal in the service
manual.
The cooling box weighs about 16 kg (36 lb.).
The controller box weighs about 21 kg (47 lb.).
