Installing the Decurler Unit (4)

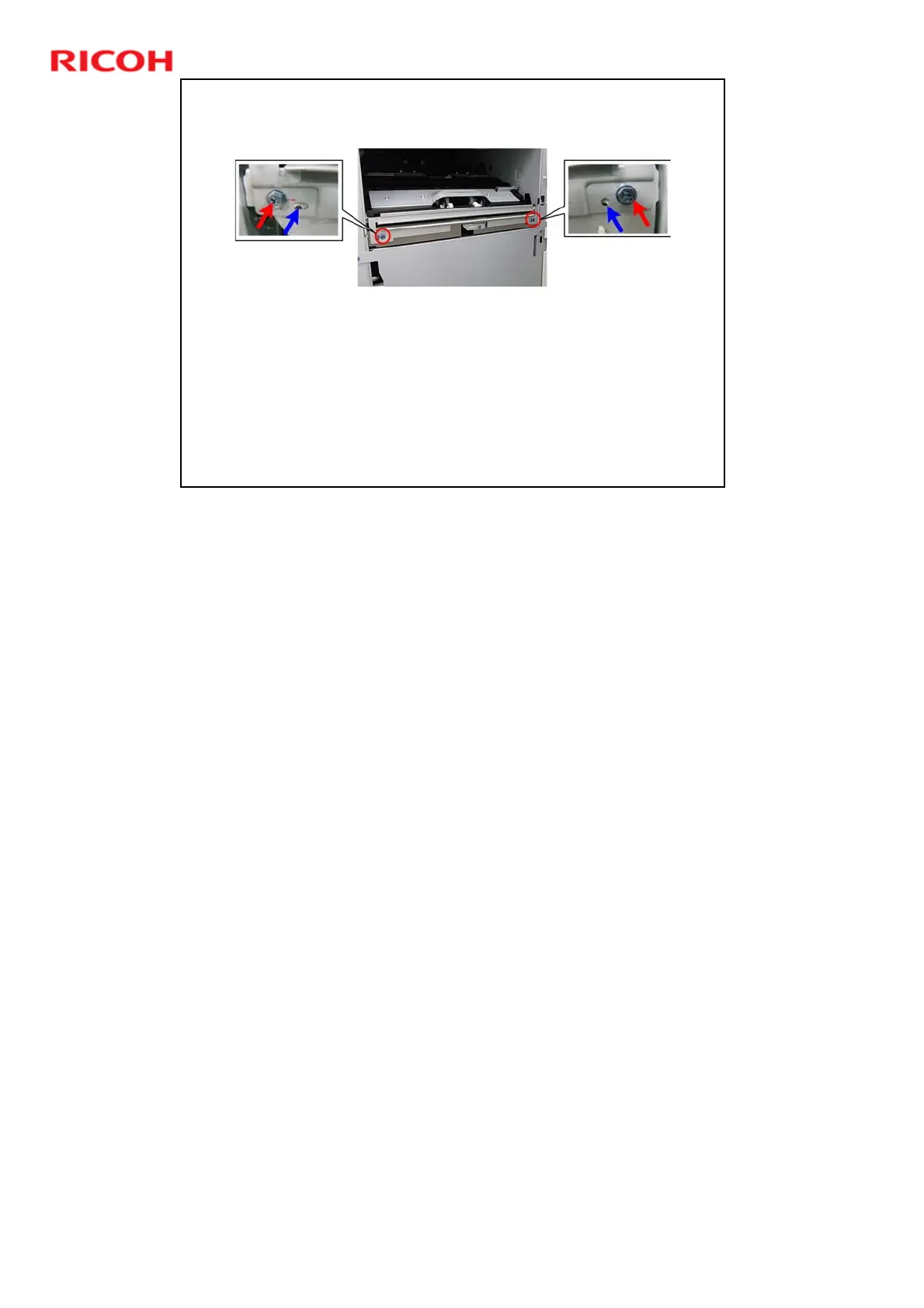

When you attach guide plate A to the downstream unit:
There are two sets of holes on guide plate A.
Attach the screws to the outer holes (marked above by the
red arrows) if the next downstream unit is the Multi Folder
unit.
Attach the screws to the inner holes (marked by the blue
arrows) if the Ring Binder or Cover Interposer Tray is the
next downstream unit.
No additional notes
