Adjusting the Registration
 Loosen the screws.
 Remove the ‘cross-
shaped’ bracket, turn it
by 90 degrees, then
tighten the screw to
secure this bracket.
 Move the adjustment
bracket by the same
amount as the
registration shift.
 Use the scale to make
sure that you move the
bracket by the correct
amount.
 If the registration shift
was toward the front of
the machine, slide the
adjustment bracket to
the front.
 Then secure the
adjustment bracket

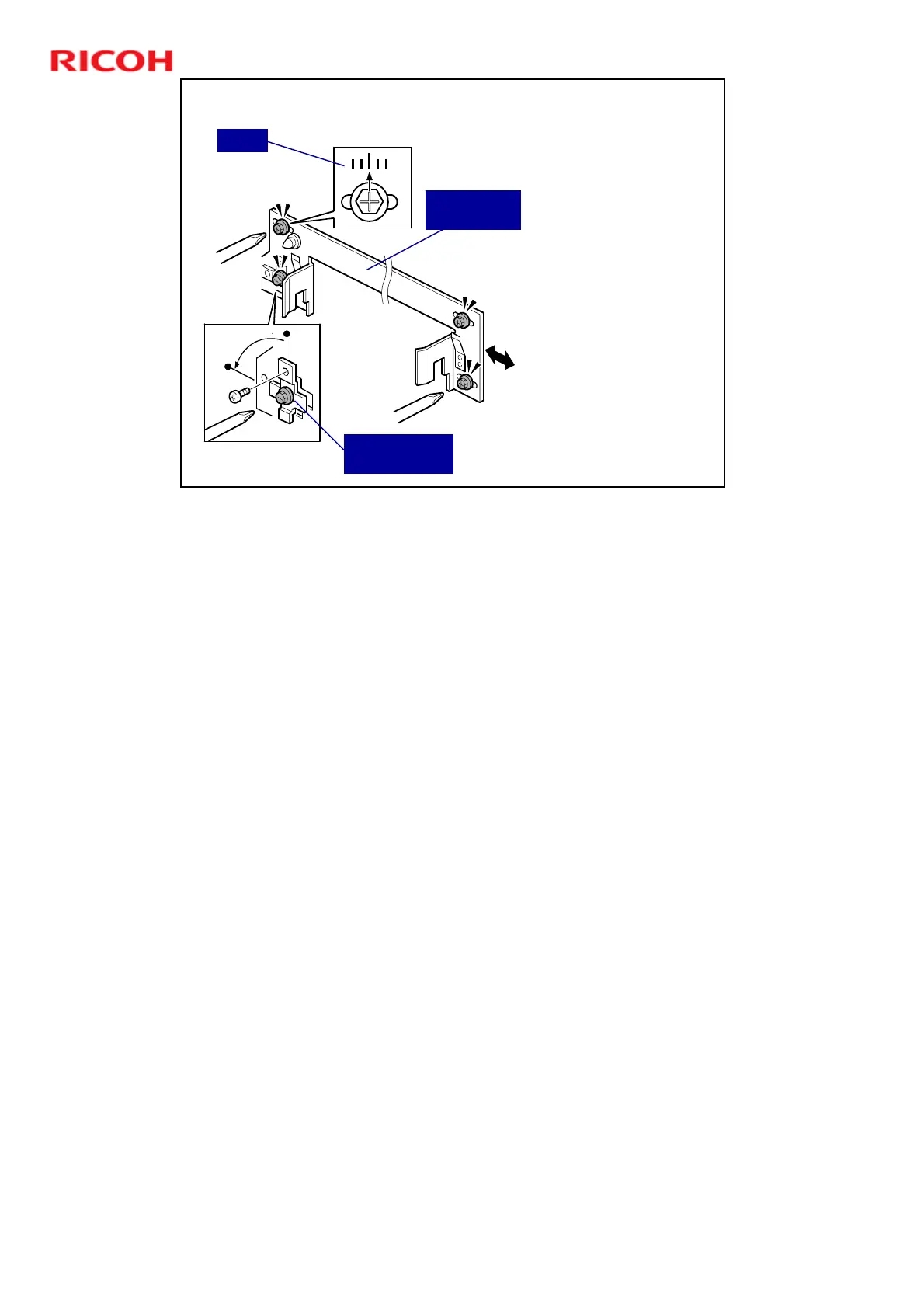

Adjustment
Bracket
Scale
Cross-shaped
Bracket
 If you move the adjustment bracket, you cannot turn the small cross-shaped
bracket back 90 degrees at the end of the procedure, so do not try it.
