When Registration Should Be Adjusted
LT A4
LE/TE LE/TE
LE/TE
LE/TE
LE/TE LE/TE
If the error is more than ±2 mm, you should adjust the
machine.
The order is not important, but if possible, adjust for
registration shift first, then for skew.
Registration shift
is more than 2 mm:
Adjust the machine
Registration shift
is less than 2 mm:
Do not adjust
Registration shift
is more than 2 mm:
Adjust the machine
LE: Leading edge
TE: Trailing edge

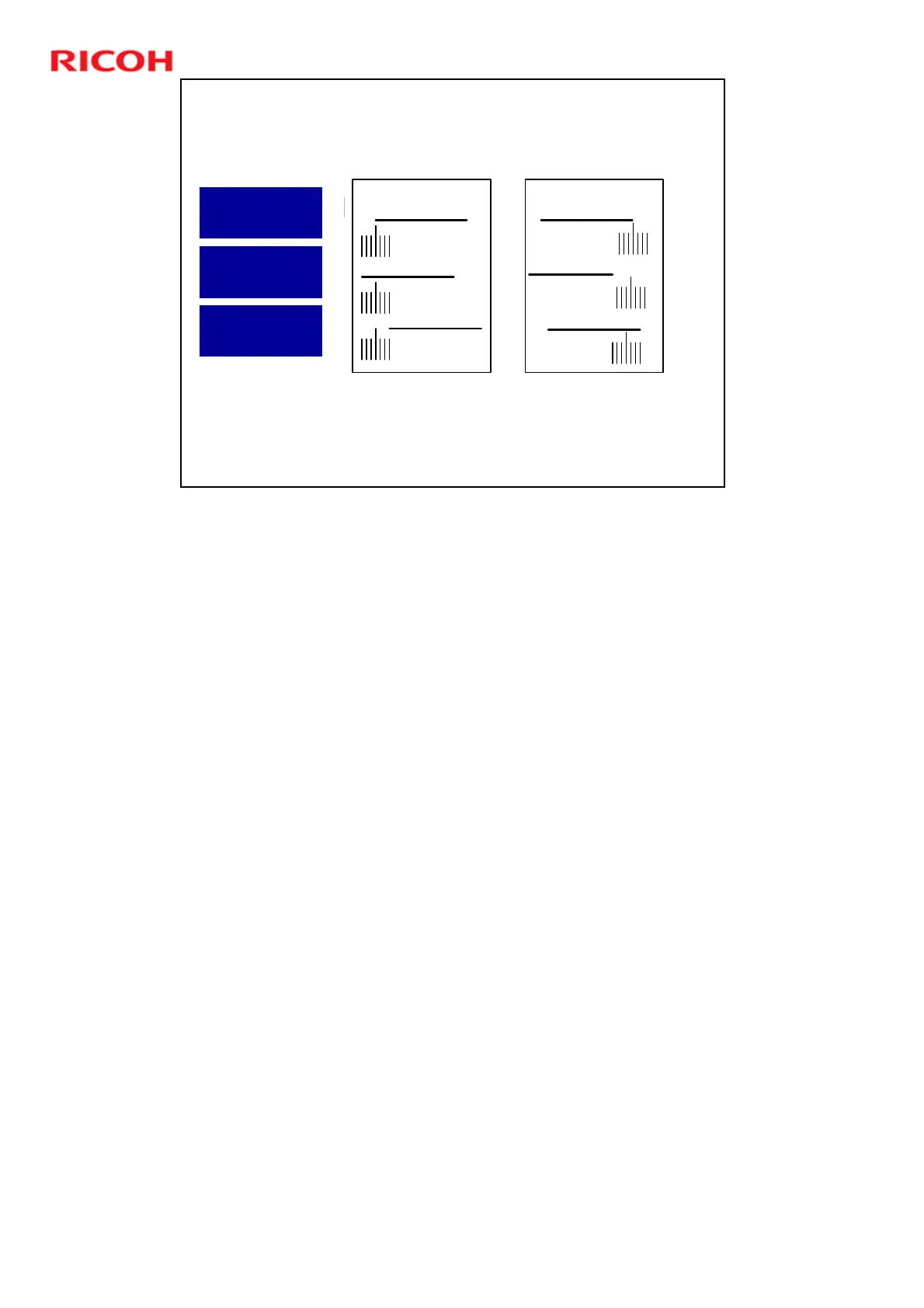

To check for registration shift
Look at the scale when the leading edge comes by and when the trailing edge
comes by. Check where the side edge of the paper is on the scale.
If the side of the paper is within 2 mm of the central line on the scale, there is no
registration shift.
If the side of the paper is more than 2 mm from the central line on the scale, you
should adjust the machine.
To Next Page
