Taurus-C1 Training
206
Slide 206

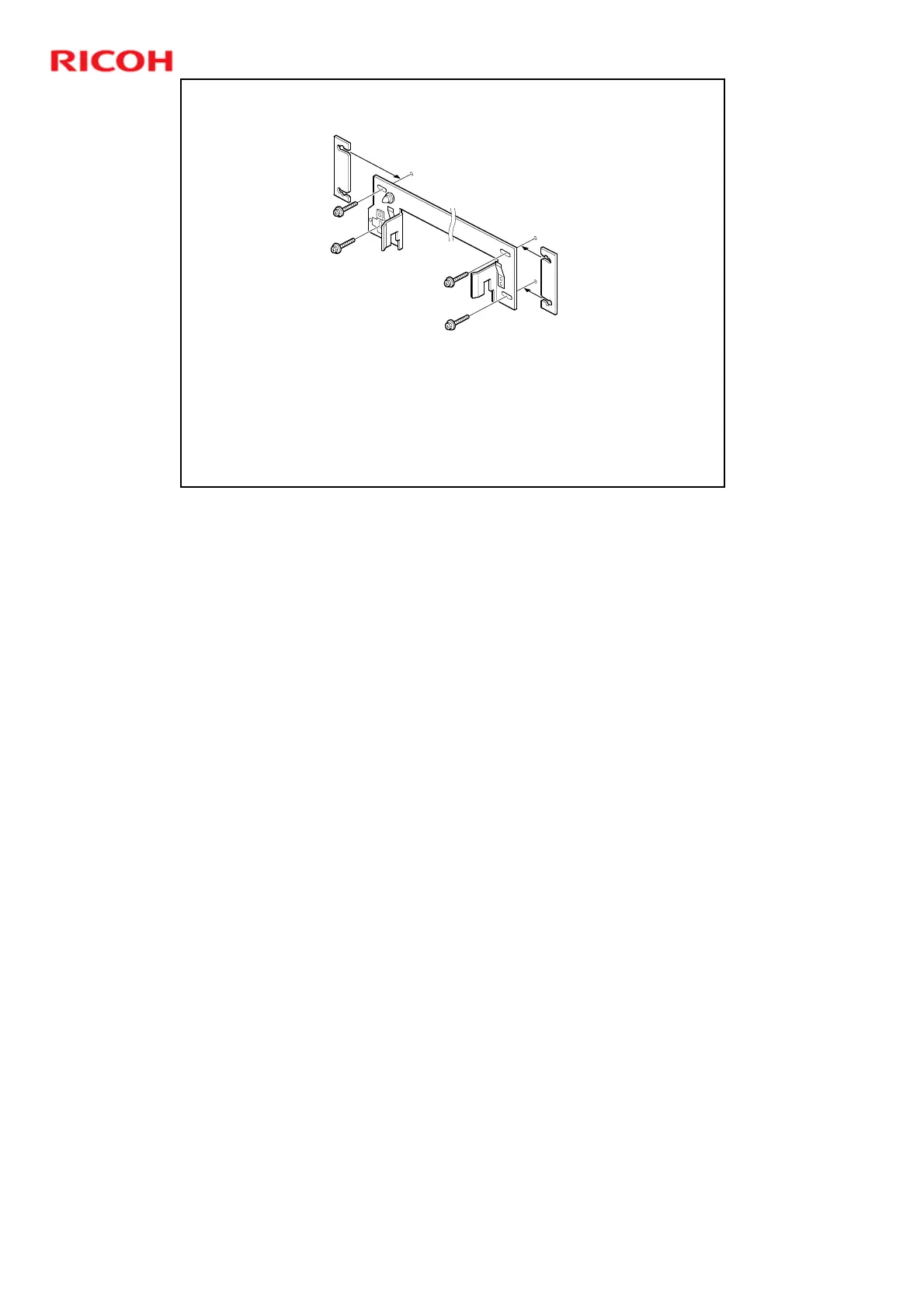

Adjustment Bracket
 There is a bracket like this at the locations mentioned on the
previous slide.
 To adjust skew, we can insert spacers under one end of the
bracket.
 To adjust registration, we can move the bracket from side to side.
No additional notes
